SPECIFICATIONS

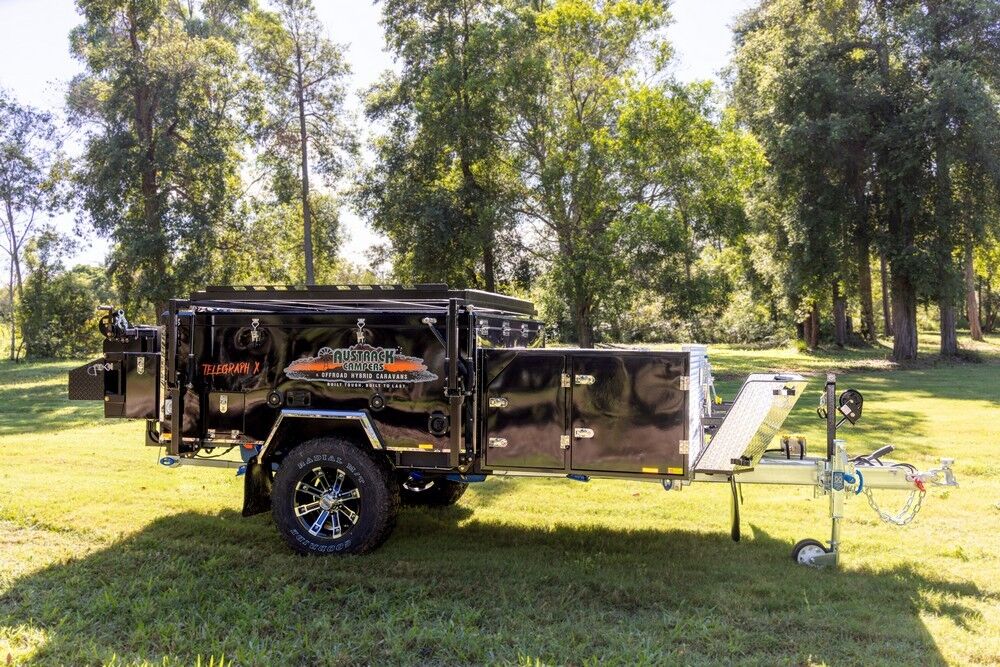

Austrack Telegraph X Camper Trailer

SPECIFICATIONS

• Finish: Baked enamel metallic finish with polished stainless steel trim.

• Construction: Zincanneal steel with underbody deadener protected chassis & drawbar.

• Drawbar & Chassis: Fully Welded hot dipped galvanised full RHS box drawbar 120 x 50 x 4.0mm Full RHS box chassis 100 x 50 x 3.0mm.

• Hitch: McHitch 3500Kg uniglide platinum coupling with locking pin. Double ADR approved rated safety chains. Dual rear recovery points and bike rack holder.

• Brakes: 6 stud 4×4 hubs, heavy duty bearings and 12 inch heavy duty electric brakes with mechanical handbrake.

• Suspension: Heavy duty independent coil spring suspension with twin shock absorbers per independent arm.

• Jockey Wheel: Ark XO Series extra heavy duty swing away dual wheel jockey wheel.

• Electrical Connection: 7 pin round or 7 pin flat trailer plug, to suit your vehicle & 50 amp Anderson Plug wired to batteries.

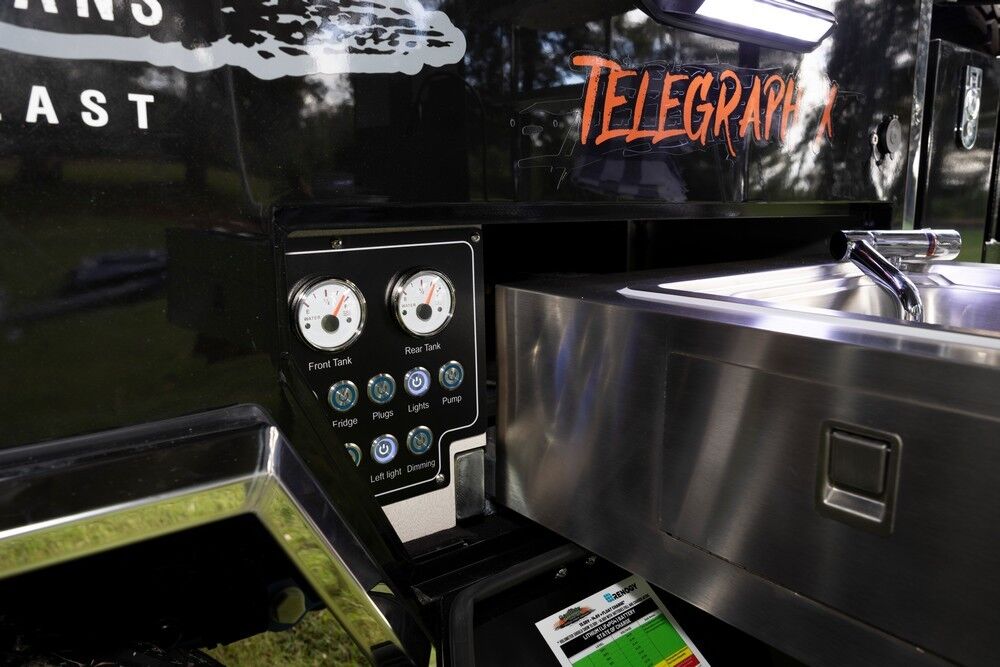

• Electrical System: 2 x 120a/hour GEL deep cycle batteries with 12v accessory & USB sockets. Digital display voltmeter, ampmeter & battery management system. Water level gauges. LED brake and indicator lights, LED number plate & clearance lights, reflectors. Built in DC/DC Charger to Anderson plug on Drawbar. Built in Multi stage 240v Charger with easy access weather proof power inlet on side of trailer. 1500w sine wave inverter with 240v power outlets.

• Stone Guard: Full Modern aluminium checkerplate stone guard with embossed mud flaps.

• Gas & Fuel: 2 x gas bottle holders to suit 4.5 – 9kg gas bottles. 2 x 20L Jerry can holders.

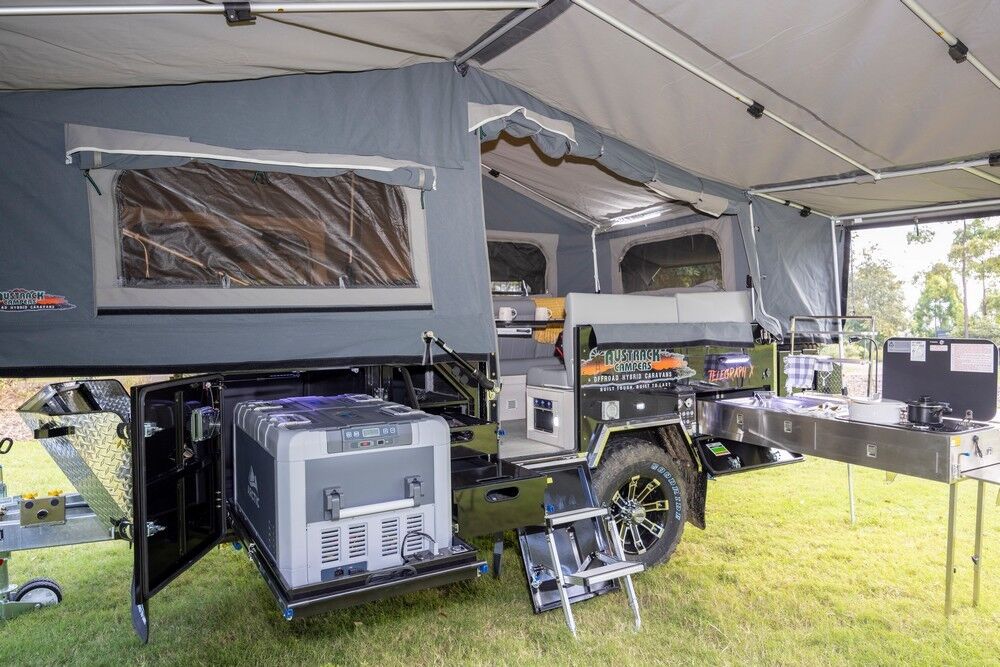

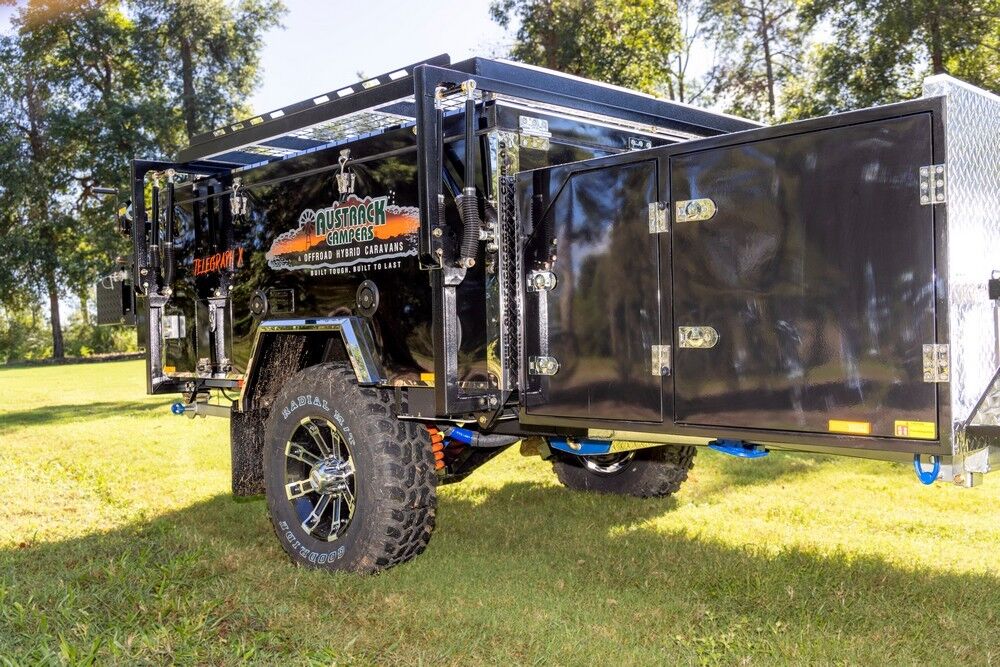

• Storage: Custom made tool box with lockable doors, double drawer pantry storage drawers, fridge slide and space for generator with auto sensing LED lights. Stainless tie down points to top of toolbox for extra storage. Double pinchweld seals to all openings.

• Gas Lines: Completely plumbed from gas bottles to kitchen with dual bottle change over valve and gas certification certificate. Additional bayonet gas connection to drawbar for HWS and also additional fitting at rear of camper for a BBQ gas supply.

• Wheels & Tyres: 3 x Brand new alloy wheels with chrome wheel nuts & 3 x Brand new MT tyres 265/75 R16

• Water Storage: 120L stainless steel underfloor water tank with aluminium tank guard & 12v pump plumbed to kitchen. 50L stainless steel underfloor water tank with aluminium tank guard & 12v pump plumbed to drawbar to service ensuite.

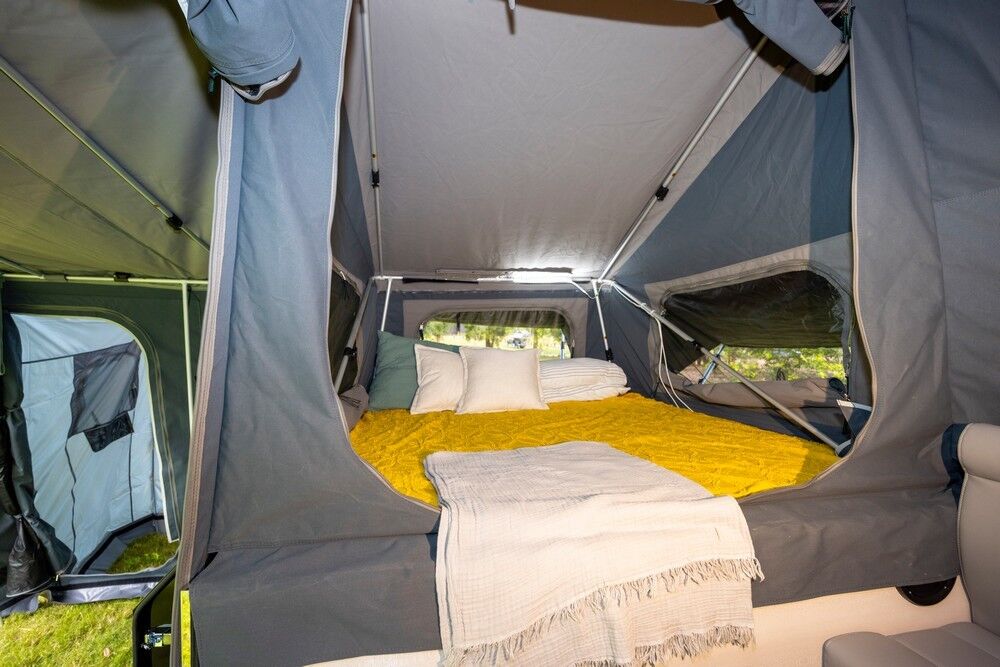

• Bedding & Dining: Queen size high density foam mattress, dining area that converts to another double bed. Removable dining table with adjustable legs.

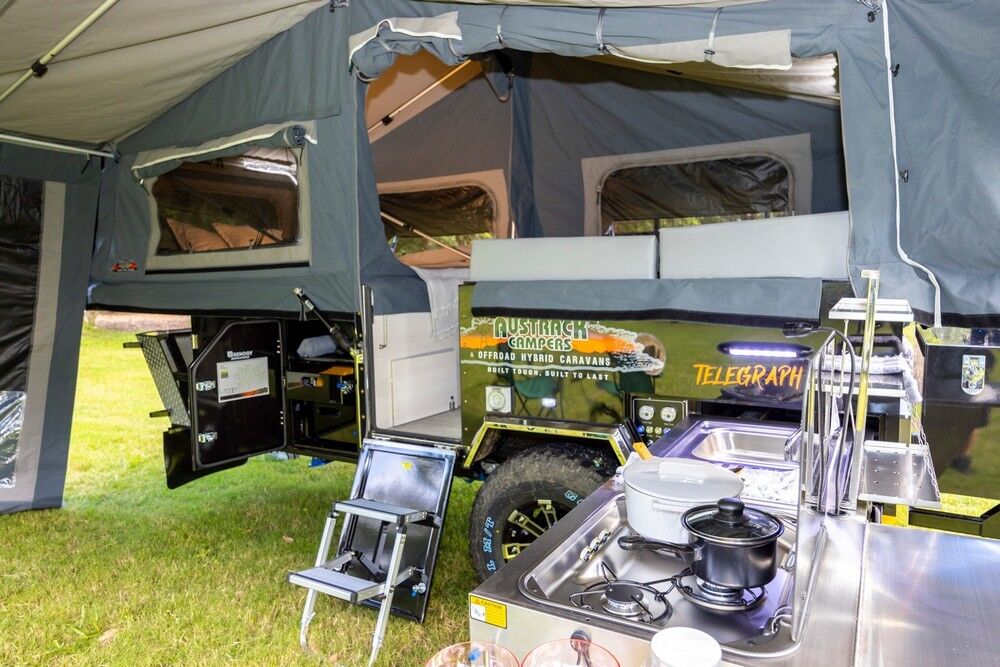

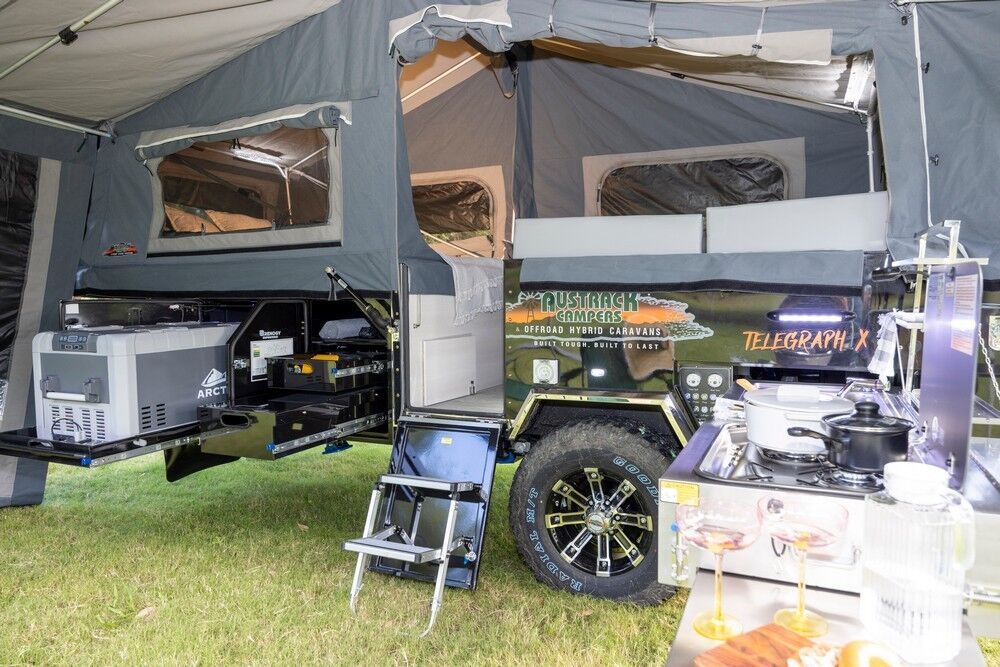

• Kitchen: Slide out stainless steel kitchen with utility drawers, electric pump tap, large sink & AGA approved 3 burner smev stove. Additional water outlet. Foldaway kitchen shelving unit. Extension bench and large preparation bench. Dimensions: 1500(w)x550(d)x230(h) (mm)

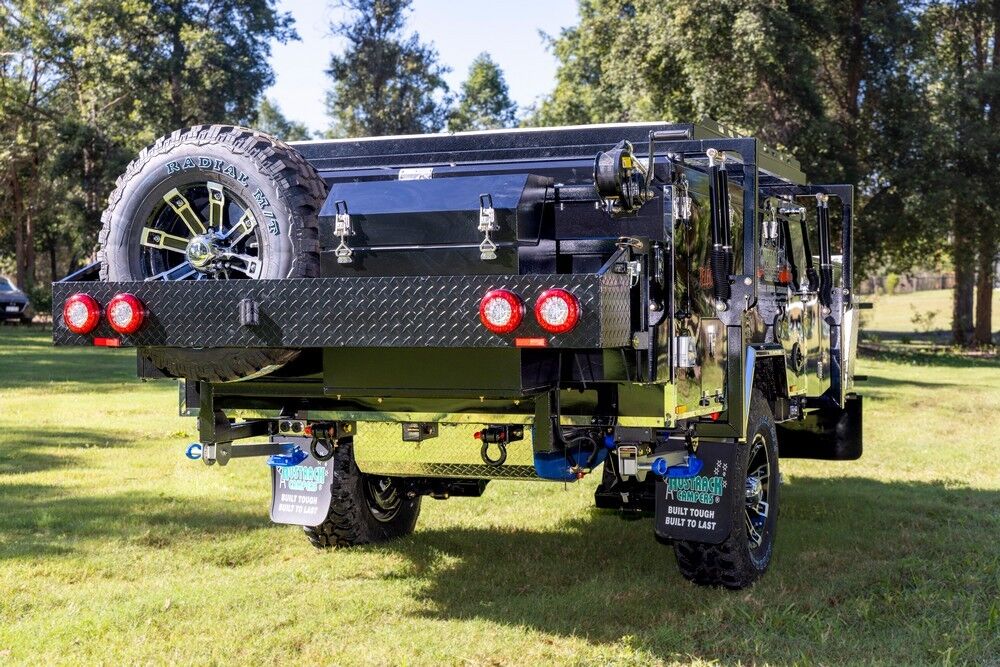

• General: Rear mounted spare wheel & lockable built in storage box. Front & rear heavy duty drop down stabiliser legs & winder. Optional dual spare wheel tailgate. Dual self locking winches. Fire extinguisher. T Spirit Level on drawbar. Tilt down spare wheel bracket for easy removal of spare wheel. Foldaway internal grab handle at stairs.

• Tare weight (incl tent): 1390 kg

• Registered: as 2000 kg trailer

• Ball Weight: 140 kg

• VIN plate: all ready for registration

TENT FEATURES

• Canvas: 16oz fine weave canvas, double stitched with reinforced stress points. Easy grip zip pulls. Color: Two tone grey

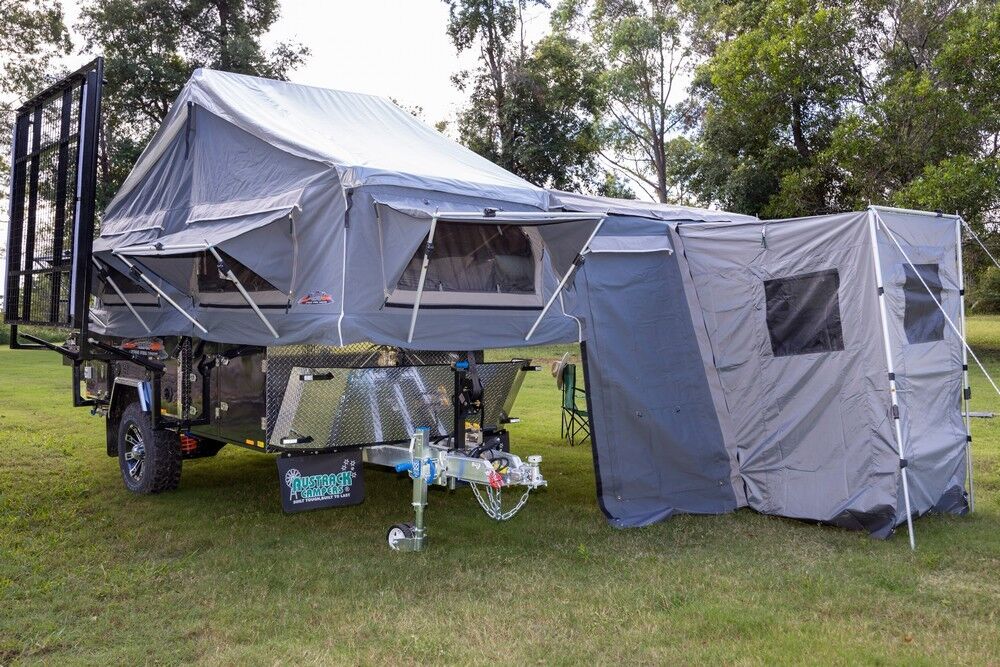

• Annex section: Full annex 4.5 x 2.4m, including annex roof, annex walls, draft skirt and annex floor, all ropes & pegs. Full dual privacy wall with midgee screen to bedroom. Tropical roof with adjustable pole height facility to prevent excessive noise in wind.

• Poles: Light weight aluminium poles with quick locks. Gas struts for easy erection of tent. 2 minute setup.

• Windows: Gusseted windows with midgee & mosquito proof screens on windows & doors. Internal canvas closing windows.

• Mattress: Quality queen size high density foam mattress.

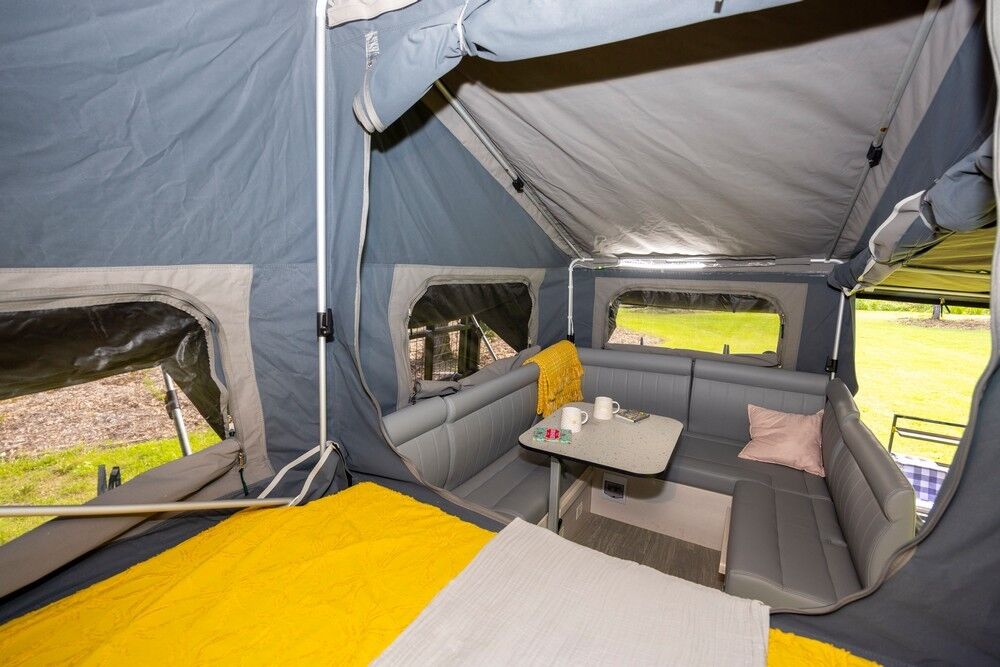

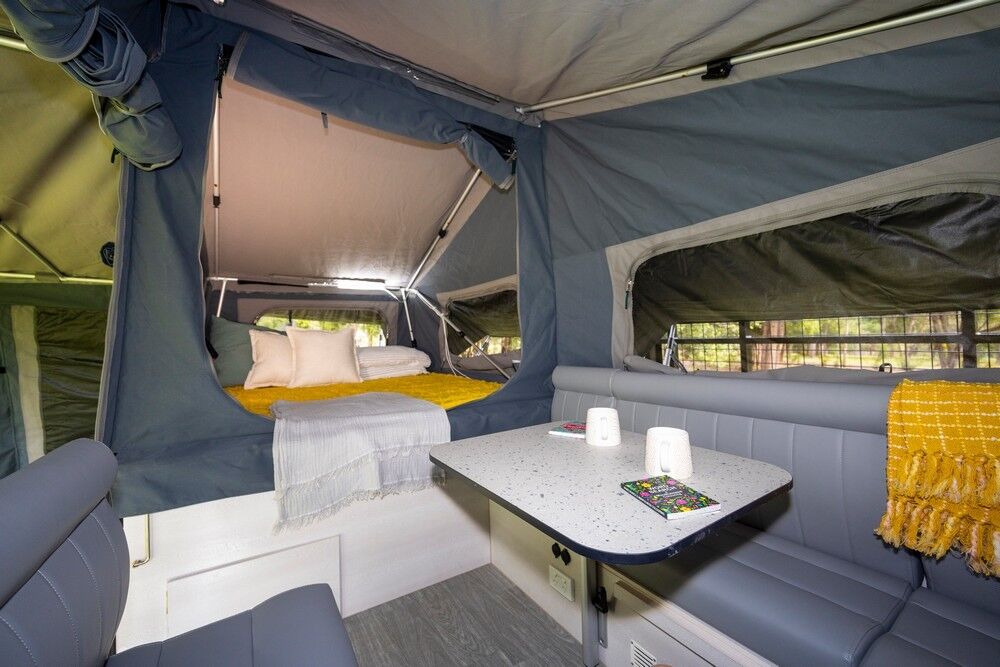

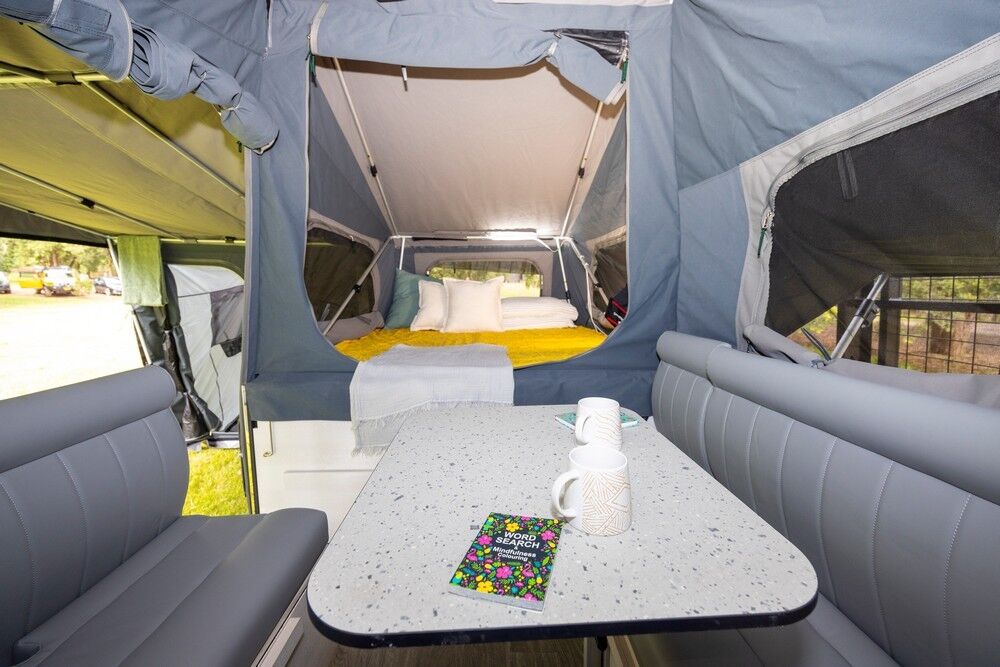

• Internal setup: Waterproof Composite board with Modern timber laminate finish. Under seating storage cabinets & portable folding table with surrounding couches that converts to a second bed.

• Lighting: Internal LED tent lights with 2 way switches & portable clamp on LED light.

BONUS INCLUSIONS

• Ensuite privacy room, port-a-loo, shower hoses and rose, wheel chocks, additional transferable LED light

• Eva Kool 75L Dual Zone fridge/freezer

• Entertainment incl remote controlled TV monitor, DVD, stereo with USB & HDMI inputs

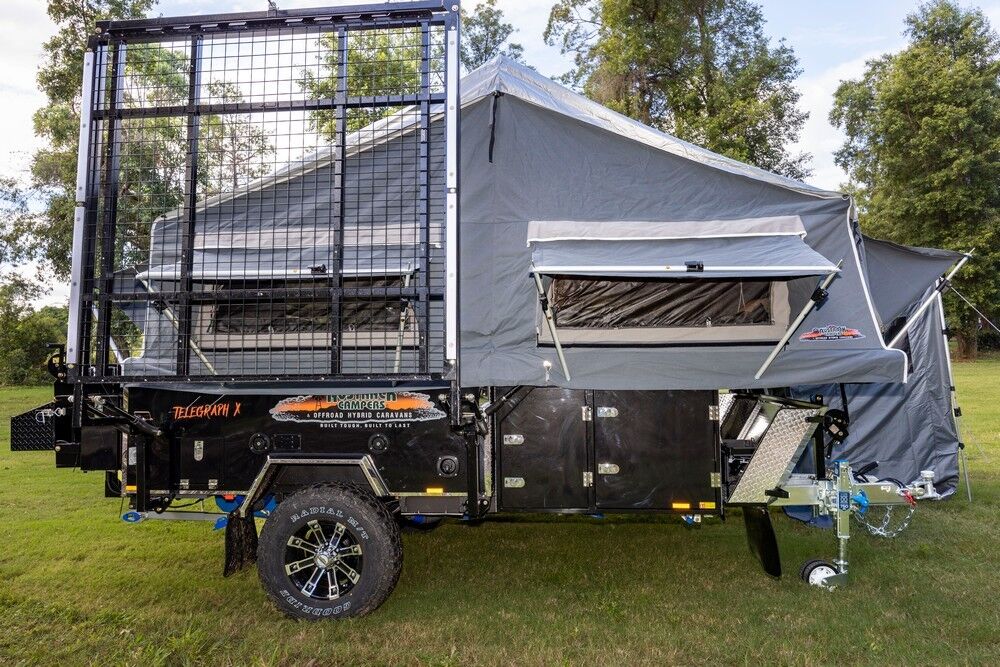

• Gas strut assisted boat rack with storage basket (rated to 150kg), 160W folding solar panel, portable gas HWS with stand

• Bonus stainless steel kitchen shelving unit.

• Sand peg kit.

• *Bonus Inclusions do not make up part of tare weight

• FRIDGE COMPATIBILITY: Primus
  PRI37LDZM / PRI45LM / PRI65LDZM / PRI74LM
  Waeco
  CFX-95 / CFX-35 / CFX-40 / CFX-50
  Engle
  MT-60FP / MT-60FCP
  evaKOOL
  G75-DX-DL / G45 / TMX38 / TMX45 / TMX50FF / RF47 / RF60 / RF85
  Bushman35L / 45L
  Ironman
  IFRIDGE65SP / IFRIDGE74SP
  ARB
  35LT / 60LT

TENT FEATURES

TELEGRAPH X CAMPER TRAILER

• Canvas: 16oz fine weave canvas, double stitched with reinforced stress points. Easy grip zip pulls. Color: Two tone grey

• Annex section: Full annex 4.5 x 2.4m, including annex roof, annex walls, draft skirt and annex floor, all ropes & pegs. Full dual privacy wall with midgee screen to bedroom. Tropical roof with adjustable pole height facility to prevent excessive noise in wind.

• Poles: Light weight aluminium poles with quick locks. Gas struts for easy erection of tent. 2 minute setup.

• Windows: Gusseted windows with midgee & mosquito proof screens on windows & doors. Internal canvas closing windows.

• Mattress: Quality queen size high density foam mattress.

• Internal setup: Waterproof Composite board with Modern wood finish. Under seating storage cabinets & portable folding table with surrounding couches that converts to a second bedroom.

• Lighting: Internal LED tent lights with 2 way switches & portable clamp on LED light.

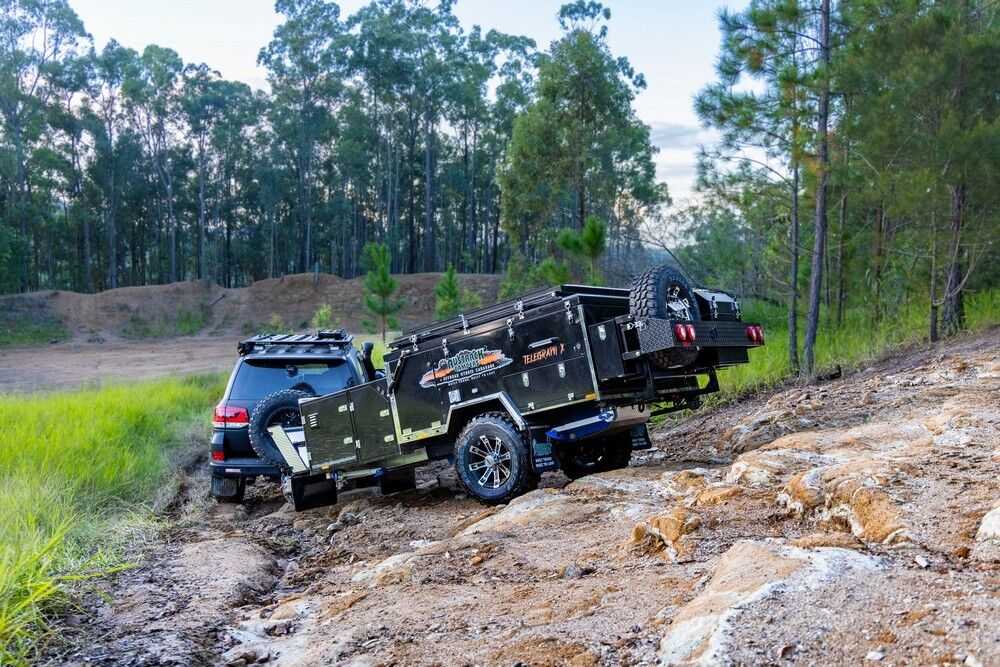

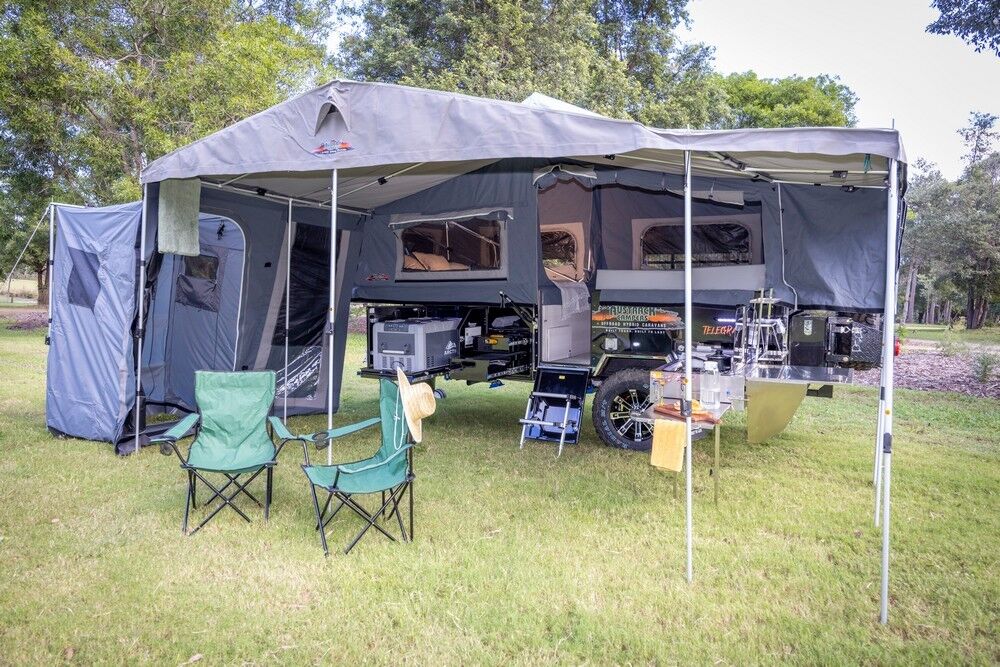

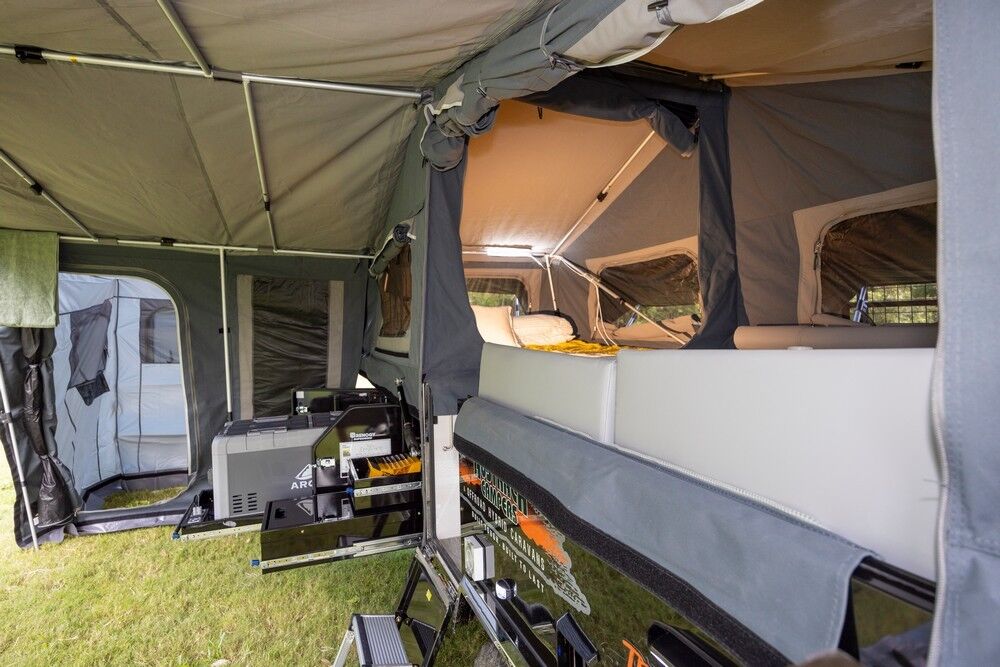

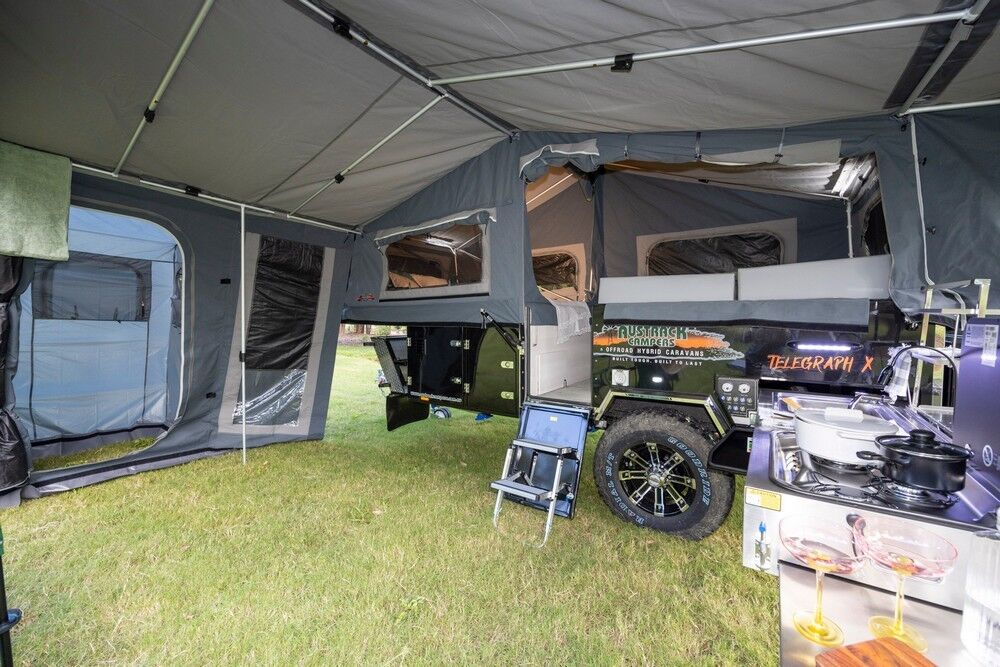

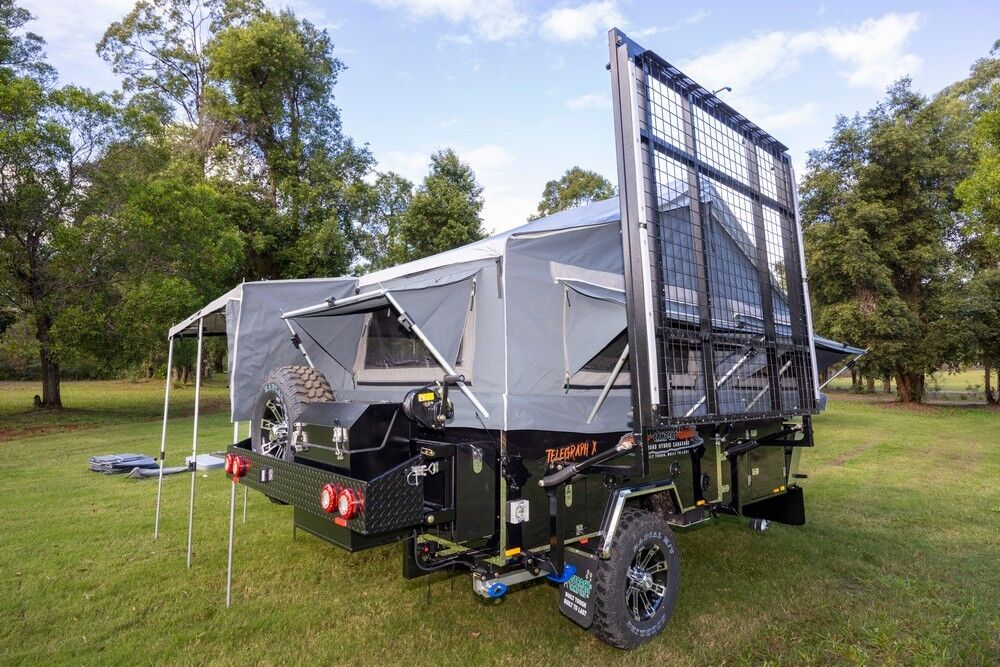

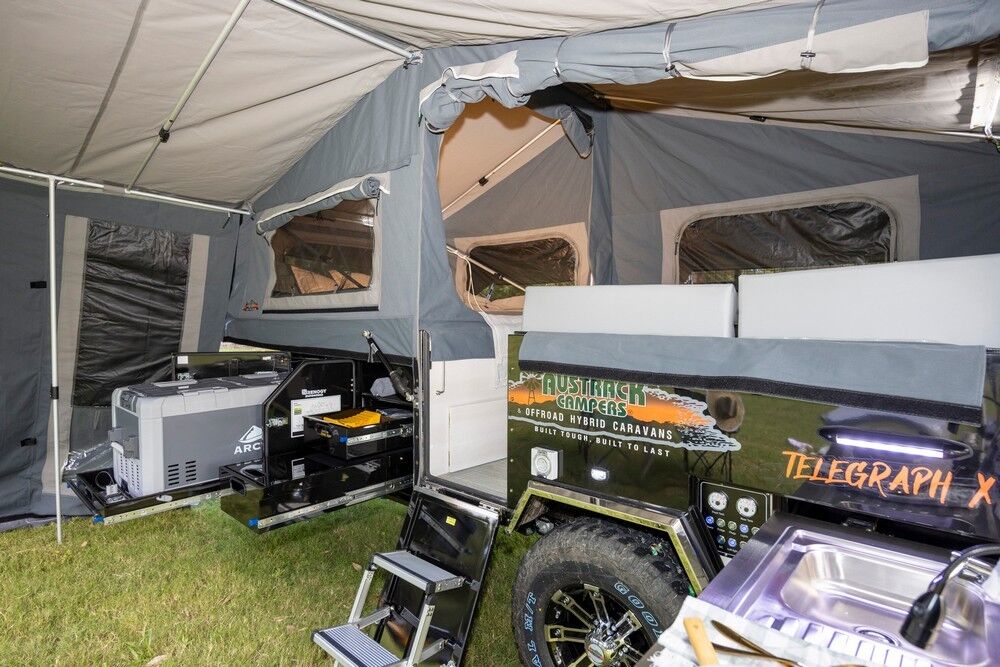

GALLERY

BONUS INCLUSIONS

TELEGRAPH X CAMPER TRAILER

• Ensuite privacy room, port-a-loo, shower hoses and rose, wheel chocks, additional transferable LED light

• Eva Kool 75L Dual Zone fridge/freezer

• Entertainment incl remote controlled TV monitor, DVD, stereo with USB & HDMI inputs

• Gas strut assisted boat rack with storage basket (rated to 150kg)
• 160W folding solar panel
• Portable gas HWS with stand

• Bonus stainless steel kitchen shelving unit.

• Sand peg kit.

• *Bonus Inclusions do not make up part of tare weight

FRIDGE SIZE

TELEGRAPH X CAMPER TRAILER

• FRIDGE COMPATIBILITY:
  Primus
  PRI37LDZM / PRI45LM / PRI65LDZM / PRI74LM
  Waeco
  CFX-95 / CFX-35 / CFX-40 / CFX-50
  Engle
  MT-60FP / MT-60FCP
  evaKOOL
  G75-DX-DL / G45 / TMX38 / TMX45 / TMX50FF / RF47 / RF60 / RF85
  Bushman
  35L / 45L
  Ironman
  IFRIDGE65SP / IFRIDGE74SP
  ARB
  35LT / 60LT

VIDEOS

TELEGRAPH X CAMPER TRAILER

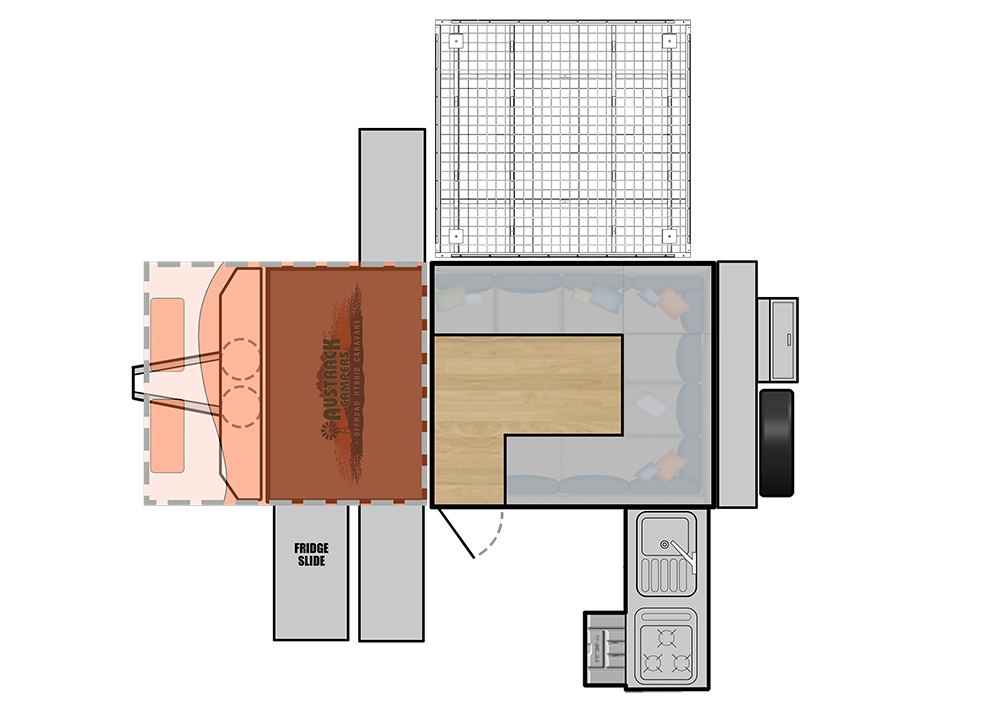

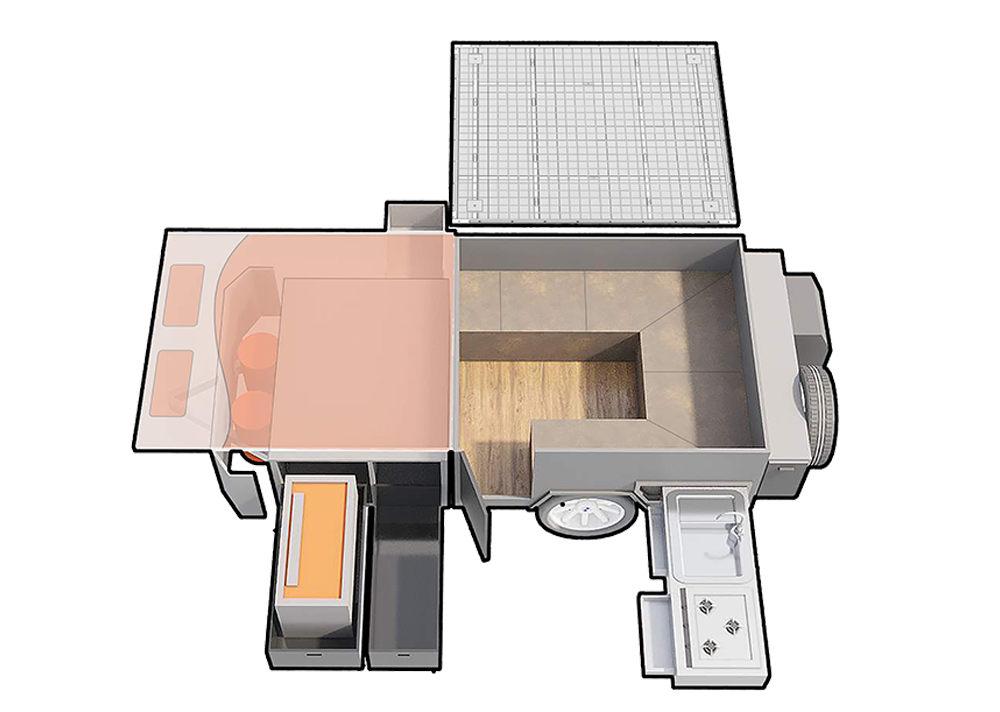

FLOOR PLAN

TELEGRAPH X CAMPER TRAILER

UPGRADE OPTIONS

TELEGRAPH X CAMPER TRAILER

Quick View

200W SOLAR BLANKET

$699

Add to cart

Upgrade 160w solar panel to 200w solar blanket (upgrade price $379)

DELIVERY

We can deliver your new Austrack Camper to you to most capital cities in Australia and northern Queensland. Check out our Events page to see if we are coming to a town near you for one of the many camping expos we attend each year. Also check our Distributors page to see if we have a local dealer in your area.

NB – These prices are a rough guide and are for all camper trailers. Please contact us for a quote or for more information.

QUEENSLAND

• Cairns $950
• Townsville $800
• Mackay $800
• Rockhampton $600

NEW SOUTH WALES

• Sydney $800

VICTORIA

• Melbourne $950

SOUTH AUSTRALIA

• Adelaide $950

NORTHERN TERRITORY

• Darwin $1,500

WESTERN AUSTRALIA

• Perth $2,300
