SPECIFICATIONS

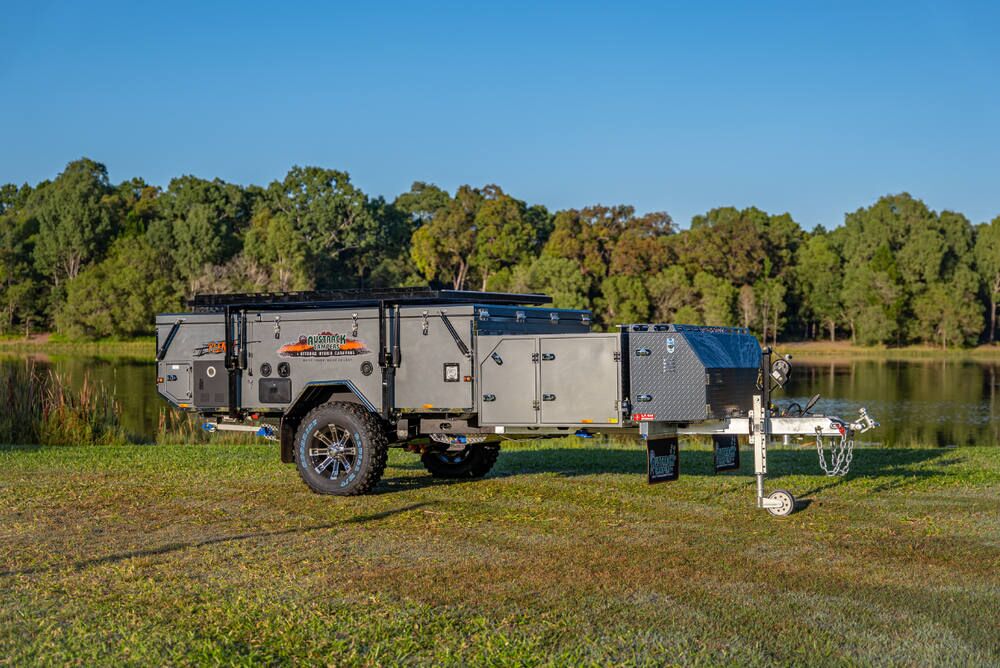

Austrack Plenty-X Double Folding Camper

SPECIFICATIONS

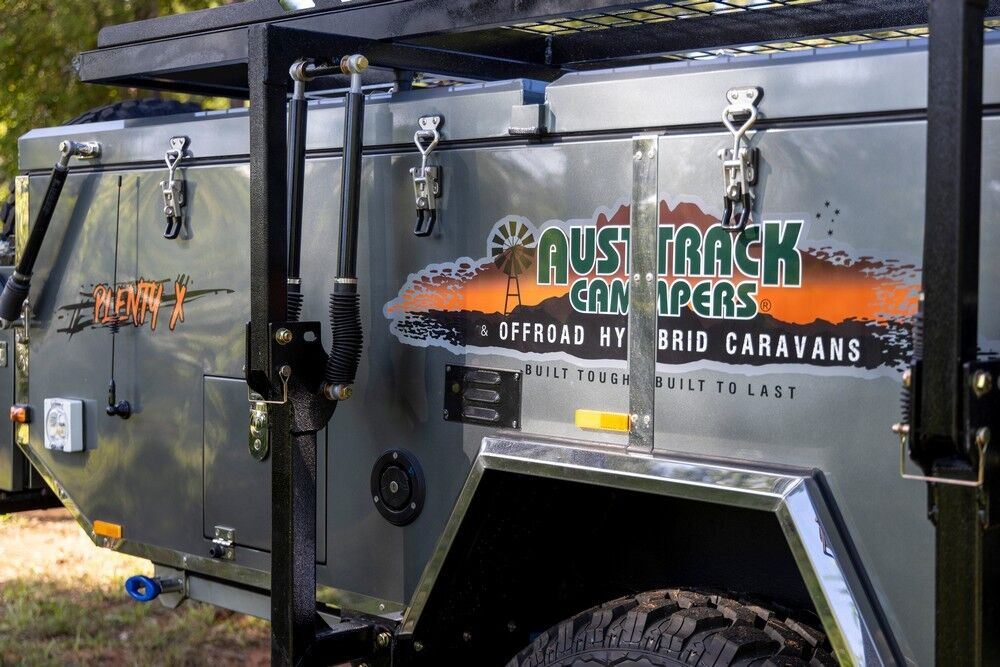

• Finish: Baked enamel metallic finish with polished stainless steel trim.

• Construction: Zincanneal steel with underbody deadener protected chassis & drawbar.

• Drawbar & Chassis: Fully Welded complete to rear hot dipped galvanised full RHS box drawbar 120 x 50 x 4.0mm. Full RHS box chassis 100 x 50 x 3.0mm.

• Hitch: McHitch 3500 Kg uniglide platinum coupling with locking pin. Double ADR approved rated safety chains. Dual rear recovery points.

• Brakes: 6 stud 4×4 hubs, heavy duty parallel bearings and 12 inch” heavy duty electric brakes with mechanical handbrake.

• Suspension: Heavy duty independent coil spring suspension with twin shock absorbers per independent arm.

• Jockey Wheel: Ark XO Series extra heavy duty swing away dual wheel jockey wheel.

• Electrical Connection: 7 pin round or 7 pin flat trailer plug, to suit your vehicle & 50 amp Anderson Plug wired to batteries.

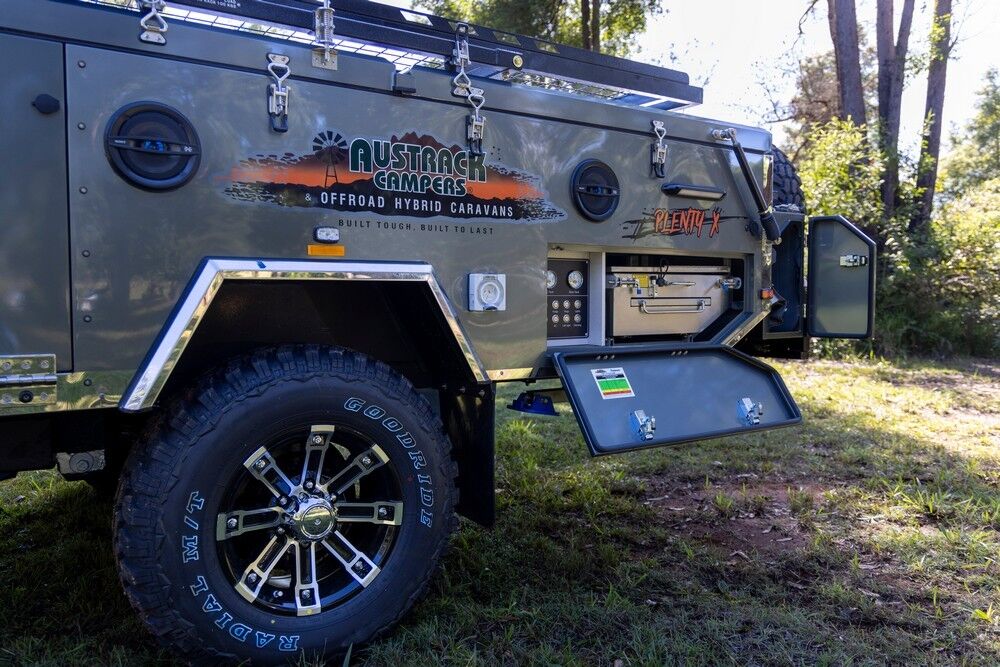

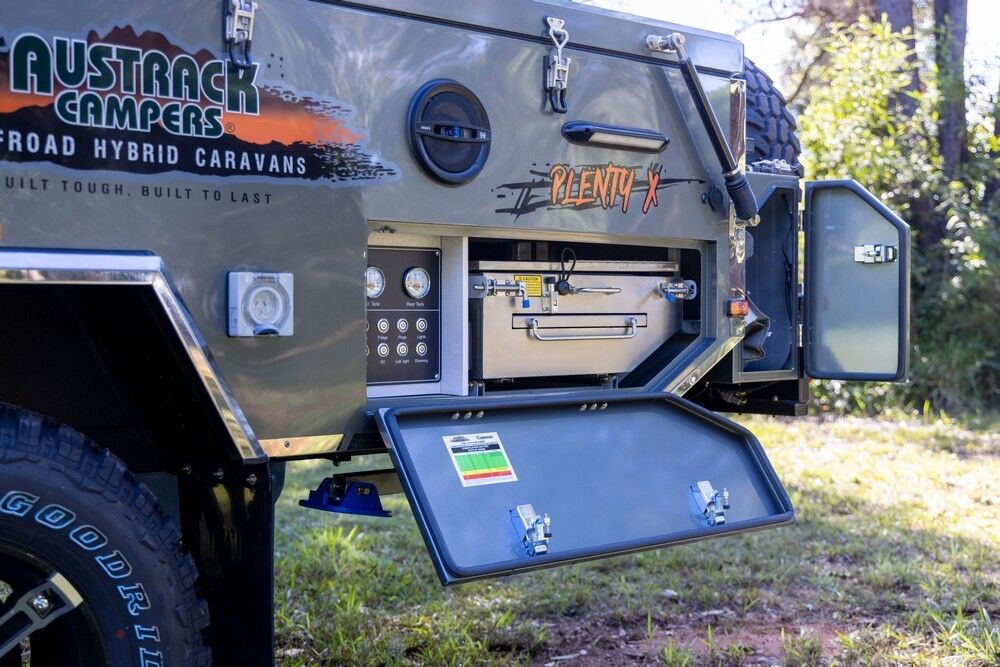

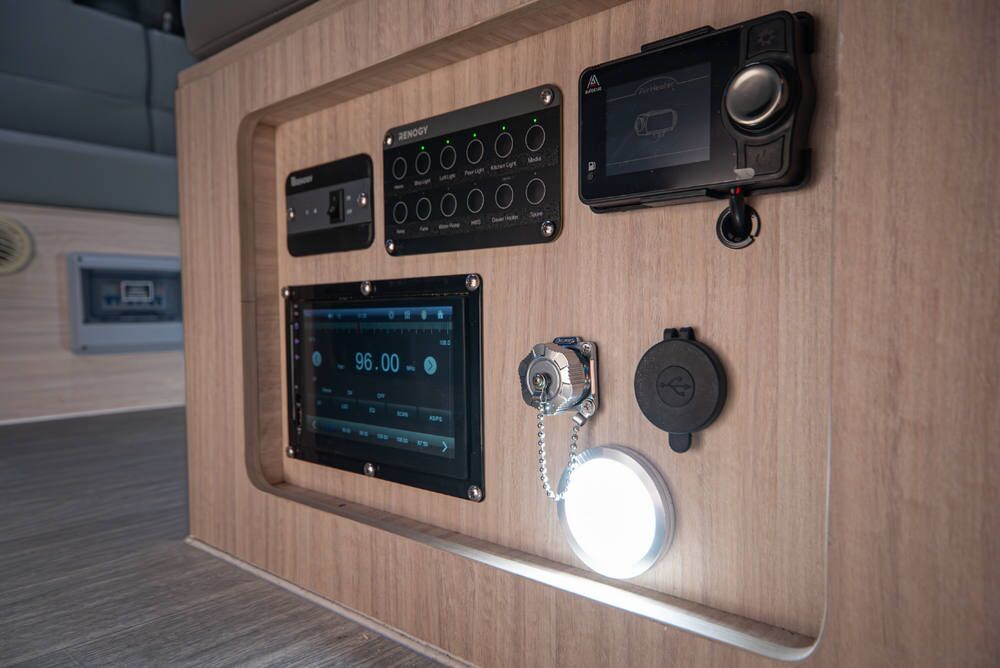

• Electrical System: 2 x 120ah GEL deep cycle batteries with 12v accessory & USB sockets. Digital display voltmeter, ampmeter & battery management system.
  Water level gauges.
  LED brake and indicator lights, LED number plate & clearance lights, reflectors.
  Built in Multi stage 240v Charger with easy access weather proof power inlet on side of trailer. 1500w sine wave inverter with 240v power outlets.

• Stone Guard: Modern aluminium checkerplate stone guard with embossed mud flaps.

• Setup: Front & Rear 725kg self locking winches for easy set up and gas strut assisted opening and closing lid.

• Gas & Fuel: 2 x gas bottle holders to suit 4.5 – 9kg gas bottles. 2 x 20L Jerry can holders.

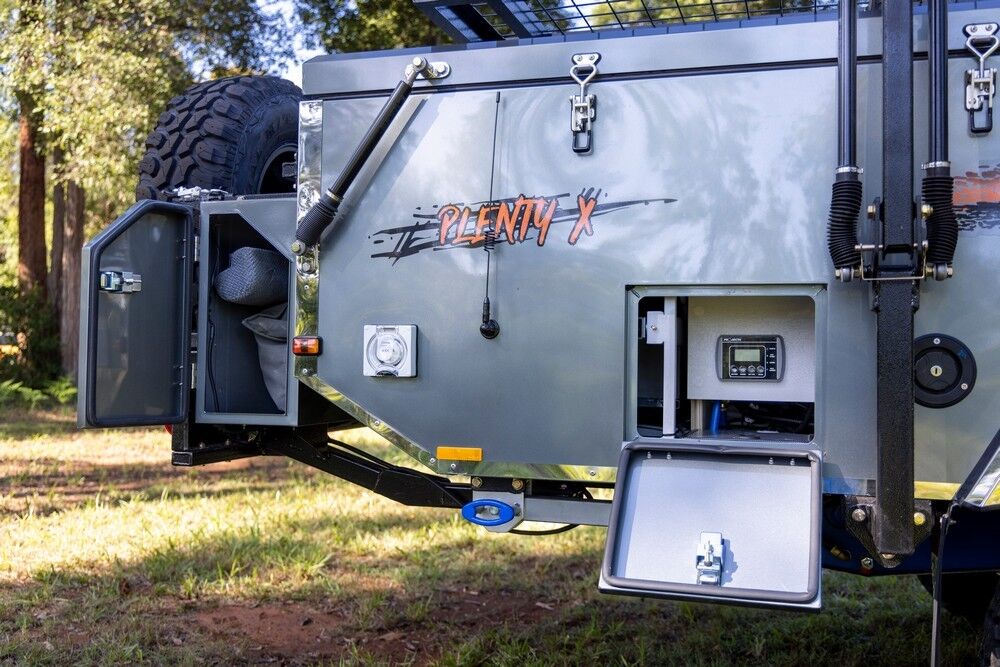

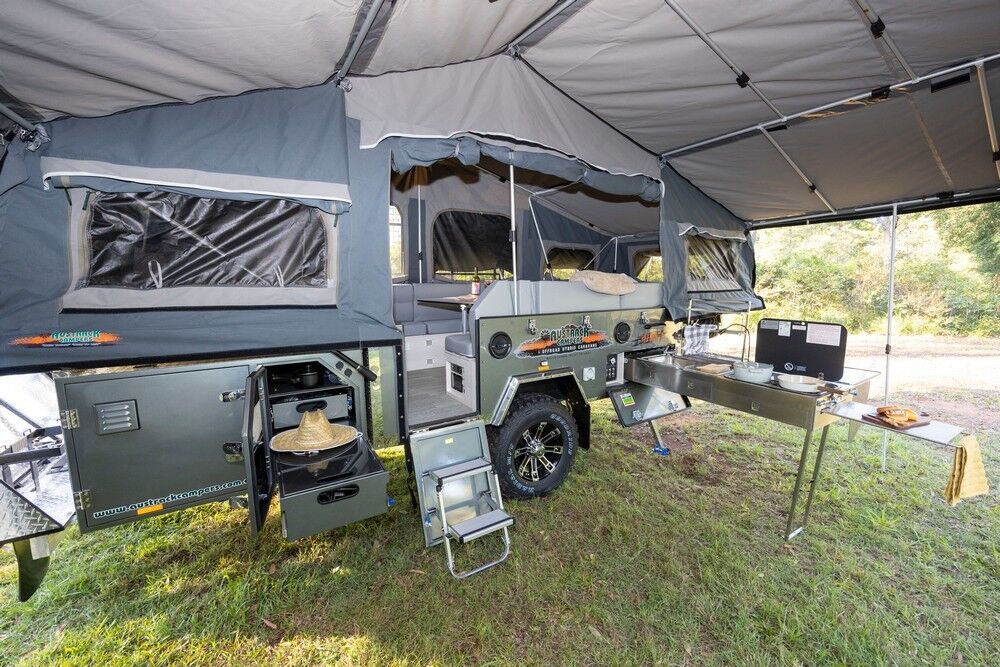

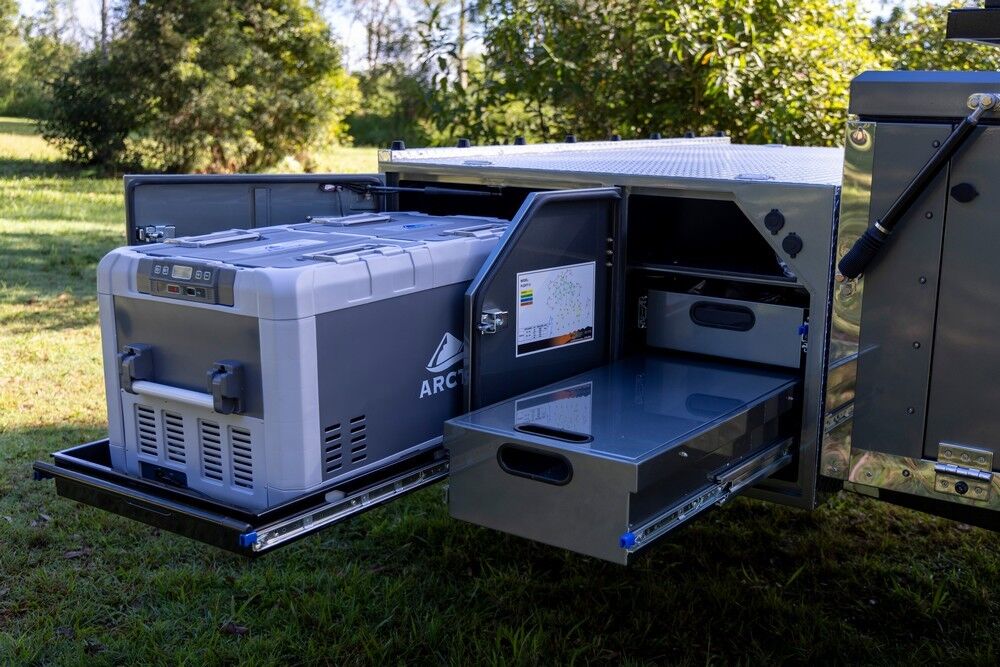

• Storage: Custom made tool box with lockable doors, double drawer pantry storage drawers, fridge slide and space for generator with auto sensing LED lights.
  Stainless tie down points to top of toolbox for extra storage. Double pinchweld seals to all openings.

• Gas Lines: Completely plumbed from gas bottles to kitchen with dual bottle change over valve and gas certification certificate.

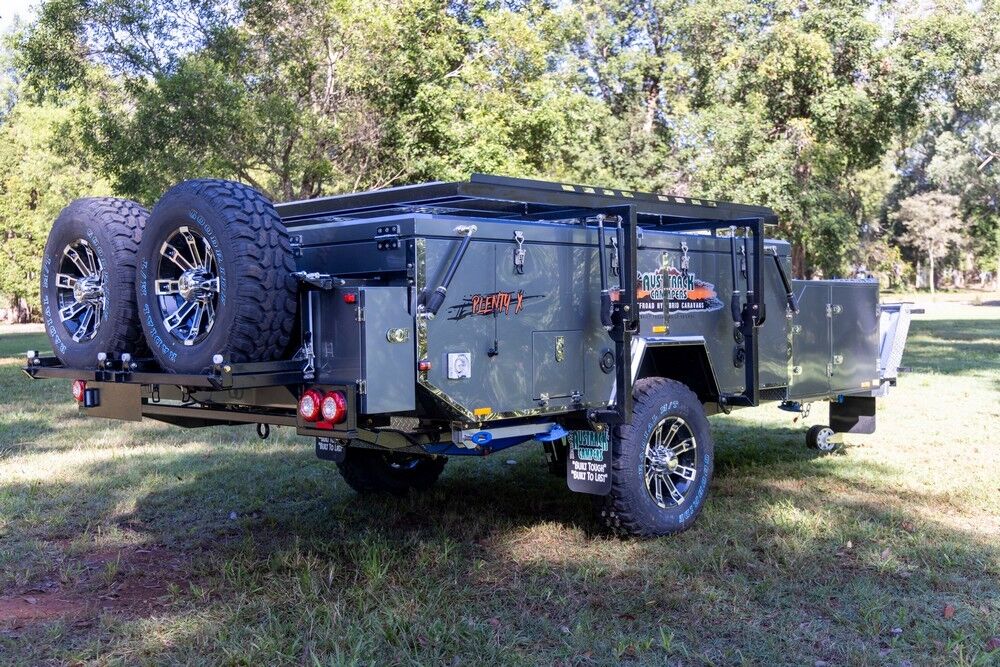

• Wheels & Tyres: 4 x Brand new alloy wheels with chrome wheel nuts & 4 x Brand new MT tyres 265/75 R16. Front & rear heavy duty drop down stabiliser legs & winder.
  Dual self locking winches. Fire extinguisher. T Spirit Level on drawbar.

• Water Storage: 160L stainless steel underfloor water tank with aluminium tank guard & 12v pump plumbed to kitchen. 50L stainless steel underfloor water tank with aluminium tank guard & 12v pump.

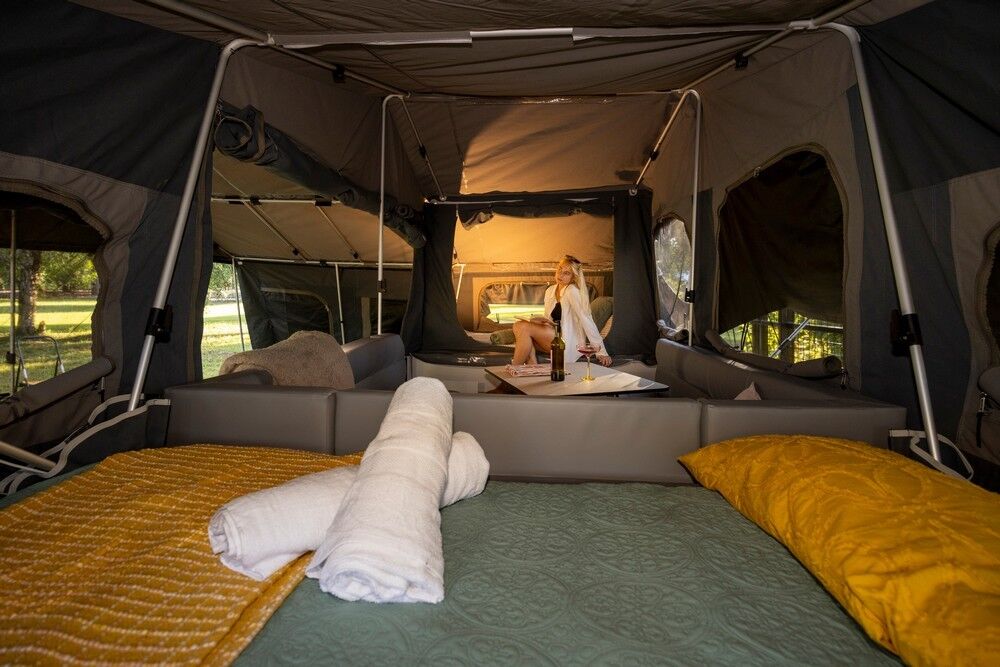

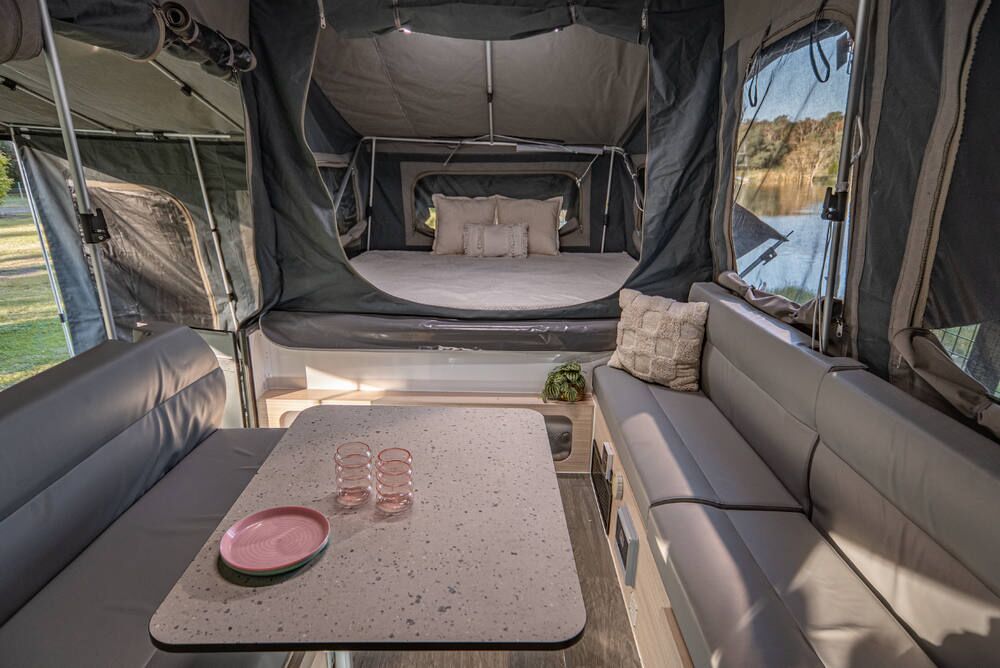

• Bedding & Dining: 3 x double size beds with high density foam mattress, dining area that seats 6 people. Very large club lounge area.

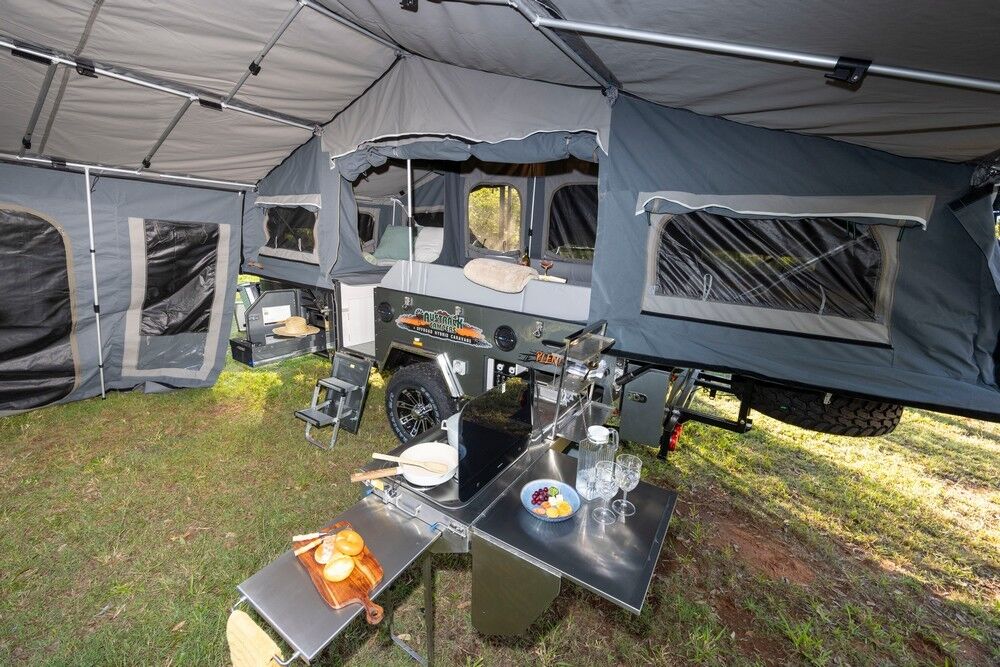

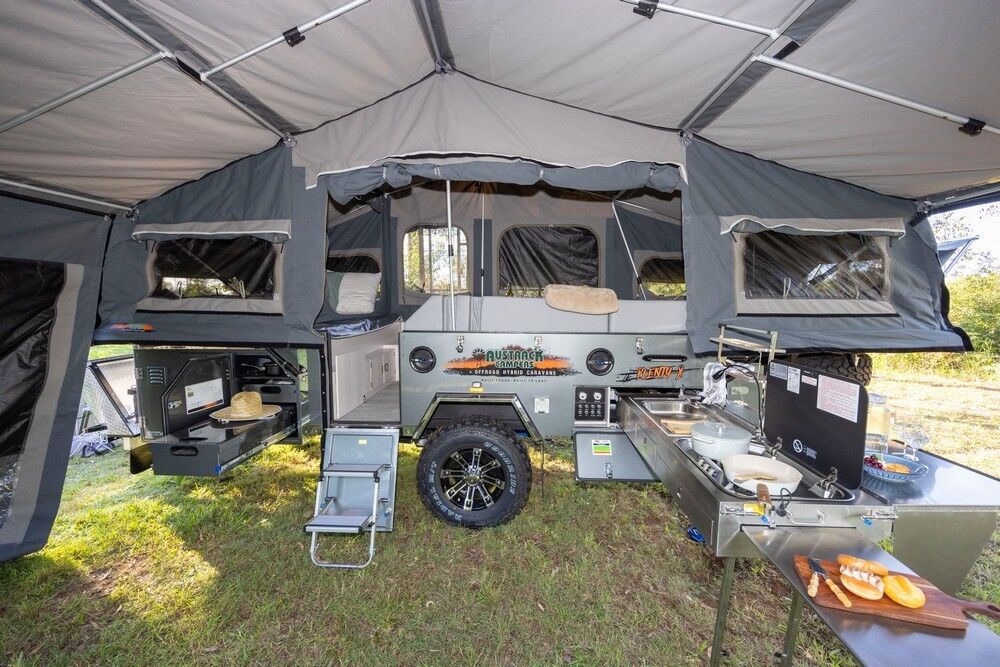

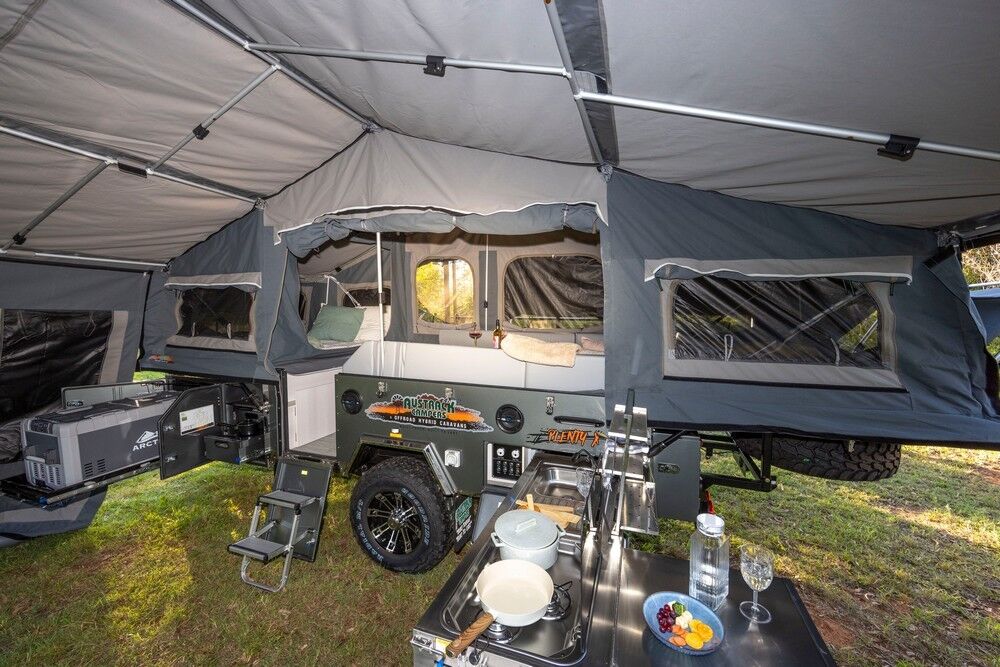

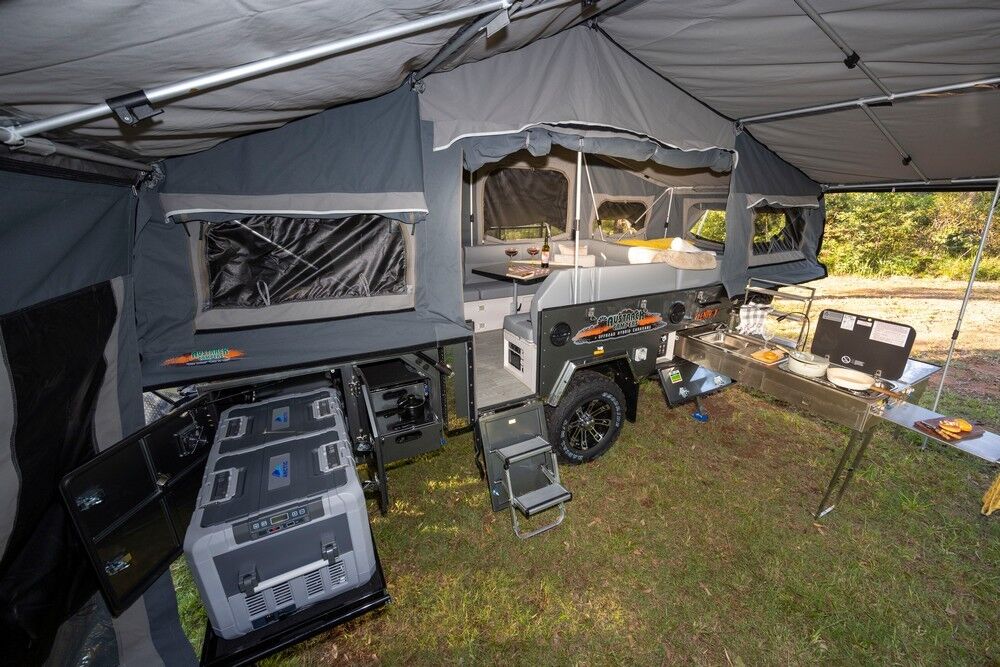

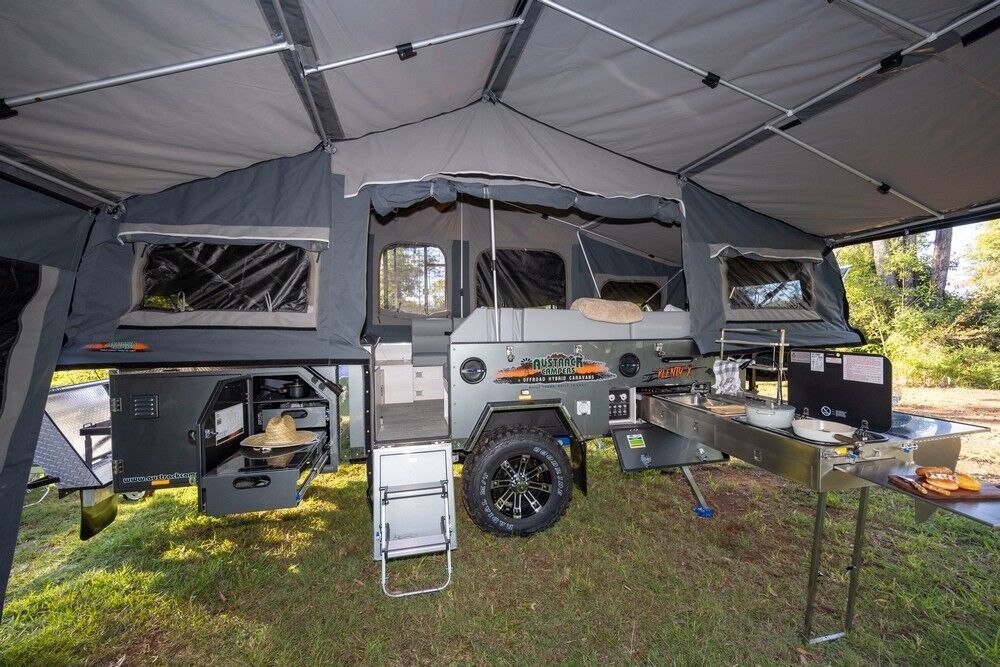

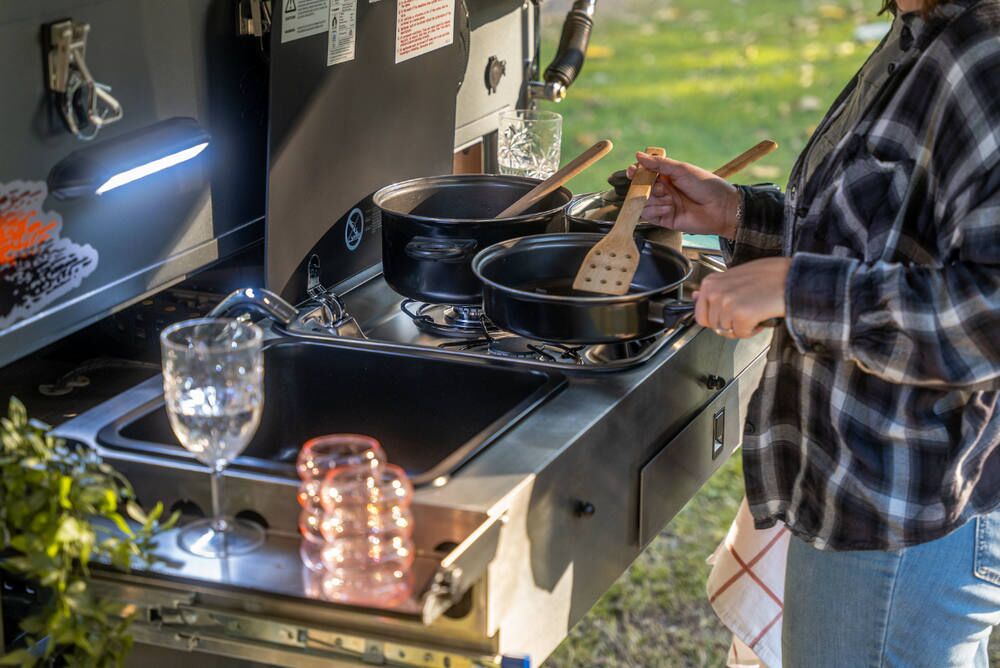

• Kitchen: Slide Out Stainless steel kitchen with drawers, electric pump, tap, large sink & AGA approved 3 burner smev stove. Foldaway kitchen shelving unit. Extension bench and large preparation bench. Dimensions: 1500(w)x550(d)x230(h) (mm)

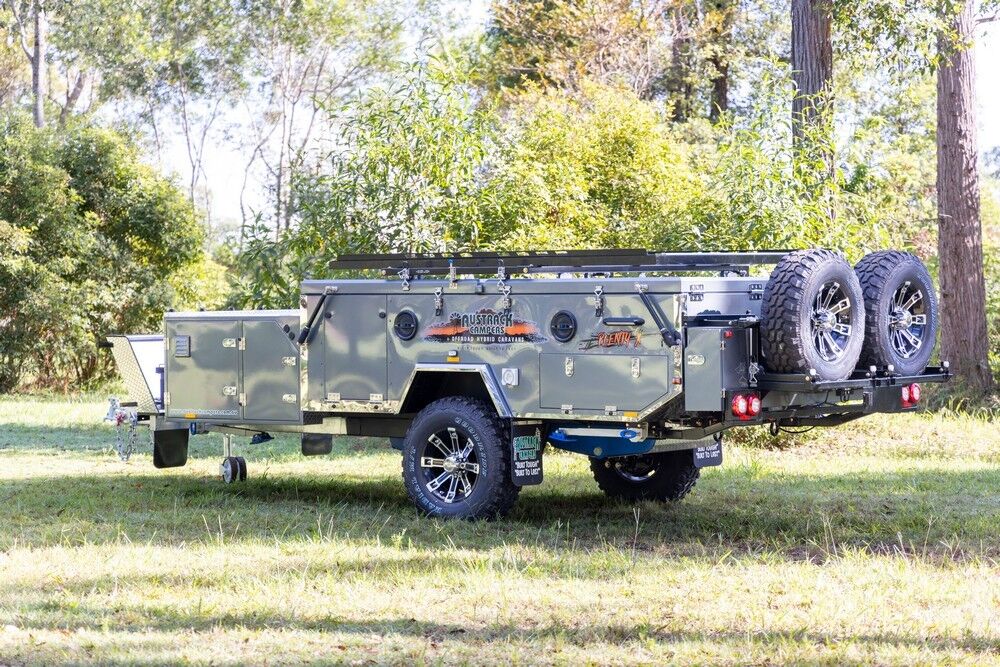

• Measurements: 6100 x 2320 x 1700 mm

• Tare weight (incl tent): 1880 kg

• Registered: as 2500 kg trailer

• Ball Weight: 140 kg

• VIN plate: all ready for registration

TENT FEATURES

TENT FEATURES

• Canvas: 16oz fine weave canvas, double stitched with reinforced stress points. Color: Two tone grey

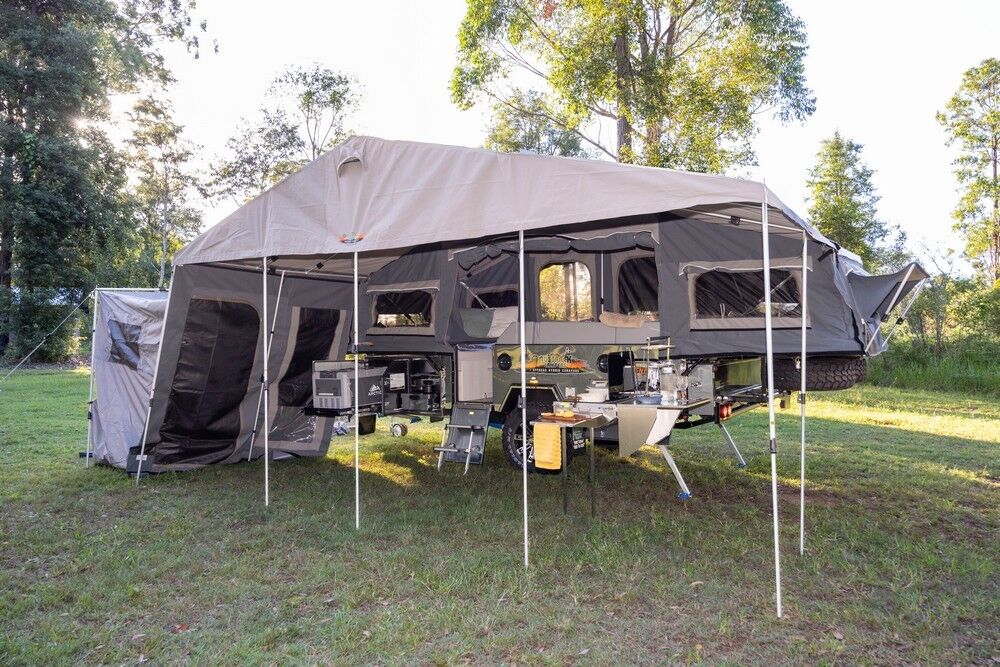

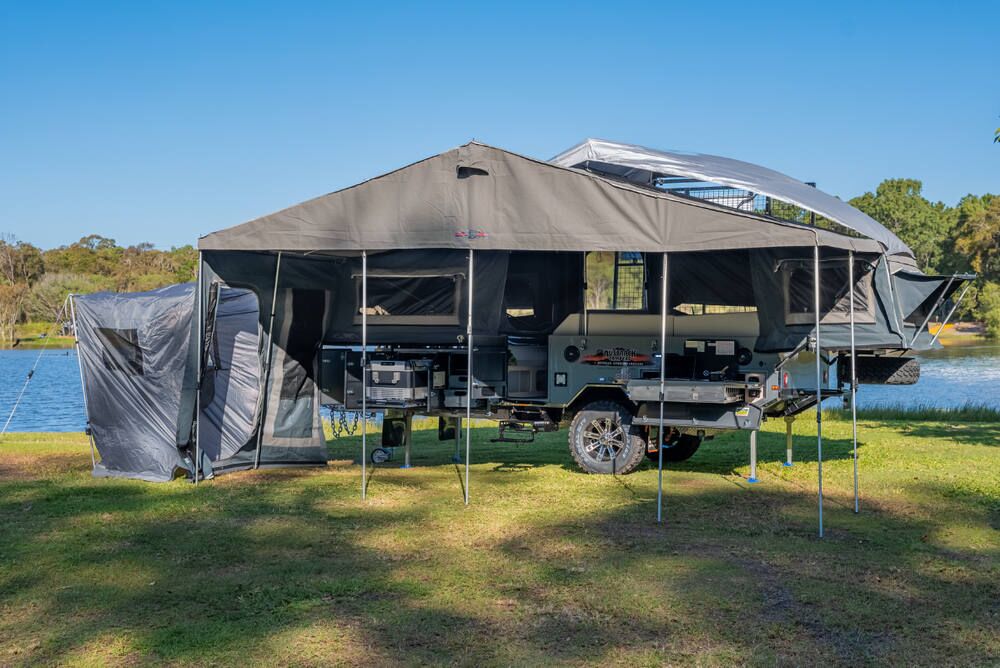

• Annex section: Full annex 5.2 x 2.4m, including annex roof, annex walls, draft skirt and annex floor, all ropes & pegs. Tropical roof with adjustable pole height facility to prevent excessive noise in wind. Full dual privacy wall with midgee screen to bedroom.

• Poles: Light weight aluminium poles with quick locks & Gas struts for easy erection of tent. 2 minute setup.

• Windows: Gusseted windows with midgee & mosquito proof screens on windows & doors. Internal canvas closing windows.

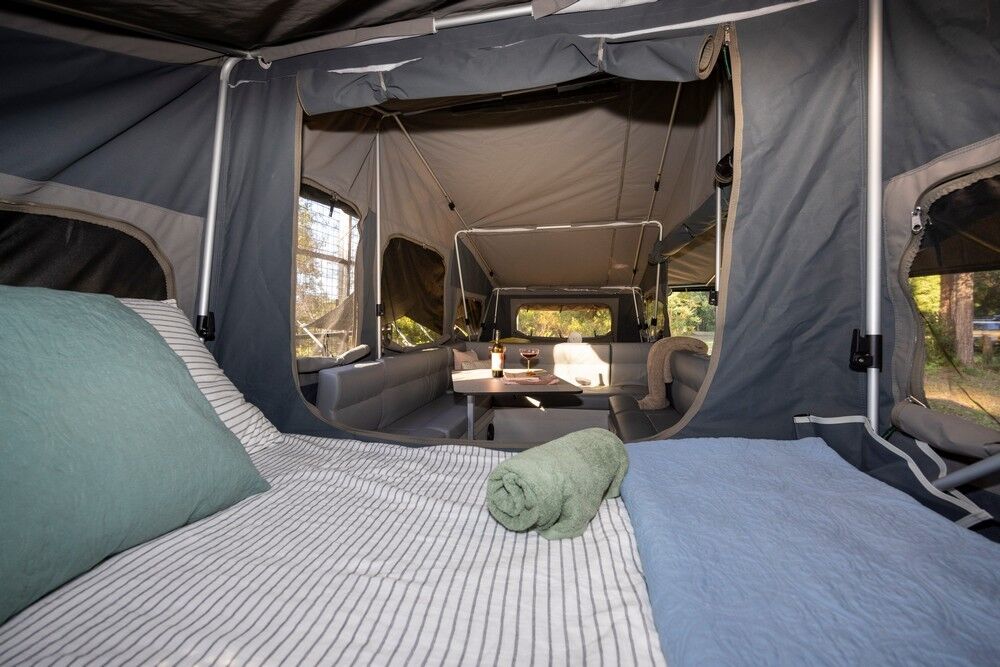

• Mattress: Quality queen size high density foam mattress.

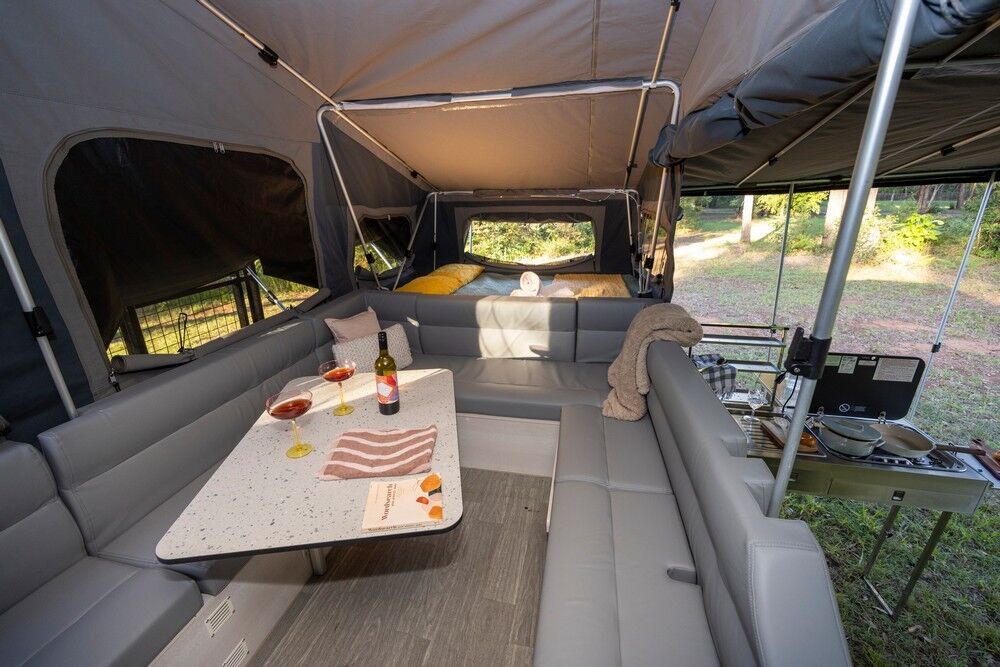

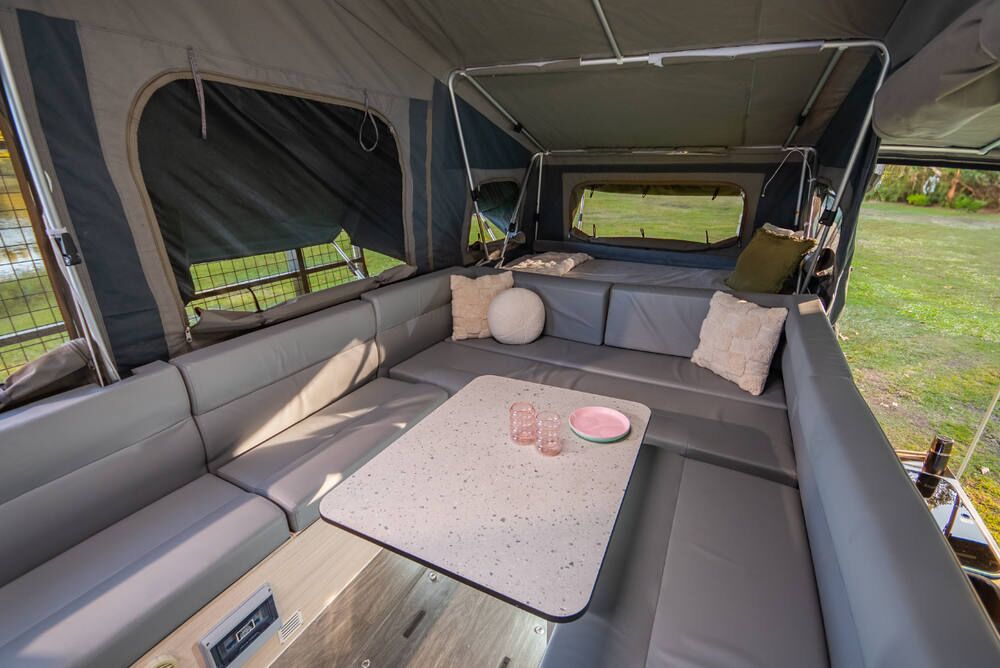

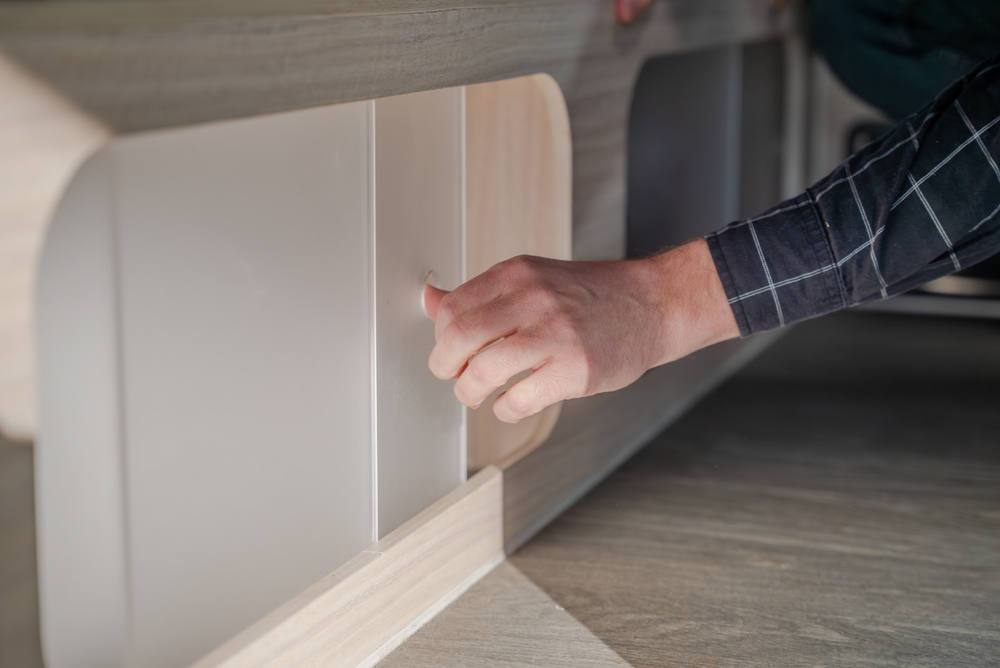

• Internal setup: Waterproof Composite board with Modern timber laminate finish. Under seating storage cabinets & portable folding table with surrounding couches that converts to a second bedroom.

• Lighting: Internal LED tent lights with 2 way switches & portable clamp on LED light.

BONUS INCLUSIONS

PLENTY X CAMPER TRAILER

• Ensuite privacy room, port-a-loo, shower hoses and rose, wheel chocks, additional transferable LED light

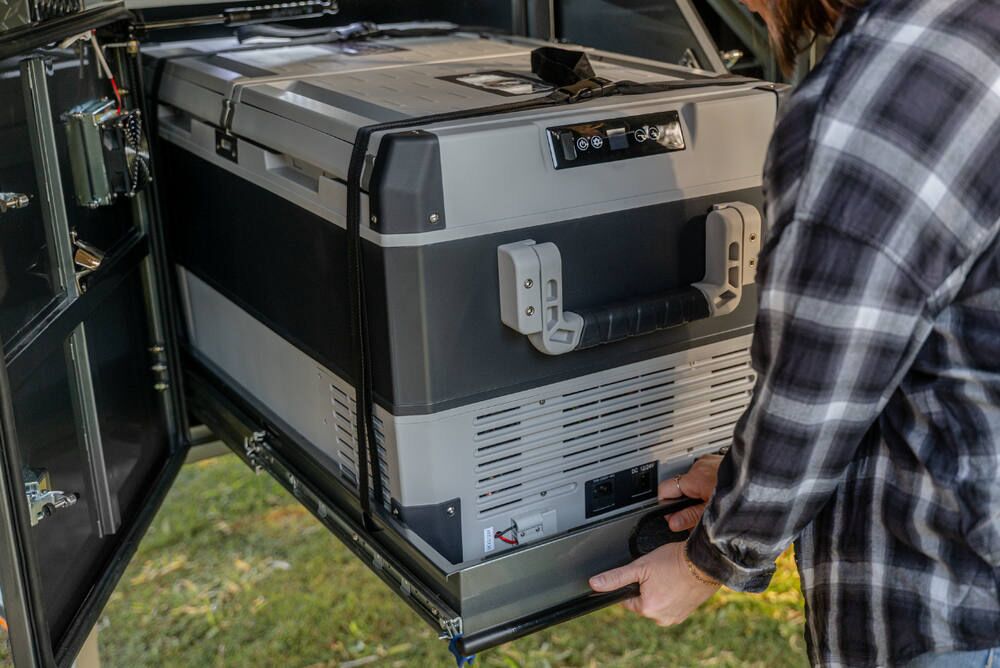

• TMDZ -95L Dual Lid Fridge Freezer

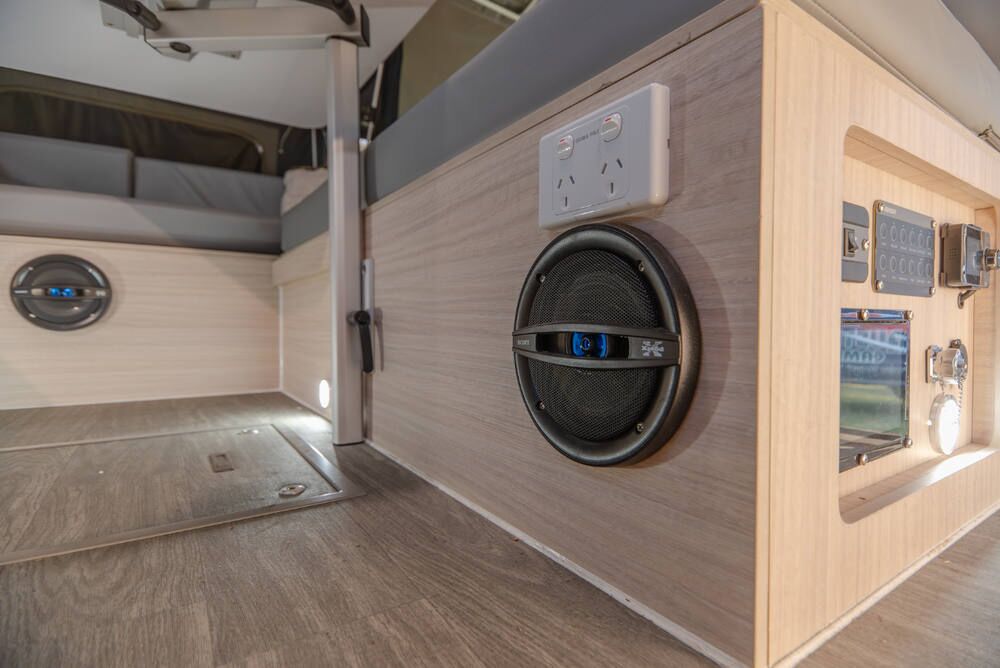

• Entertainment incl remote controlled TV monitor, DVD, stereo with USB & HDMI inputs

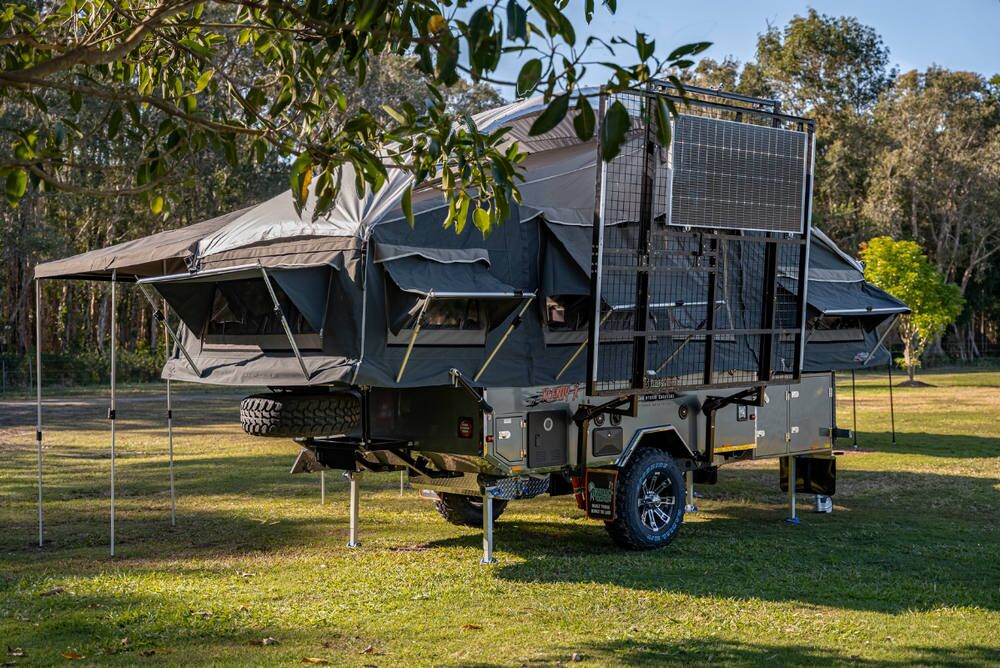

• Gas strut assisted boat rack with storage basket (rated to 150kg), 160W folding solar panel, portable gas HWS with stand

• Bonus stainless steel kitchen shelving unit.

• Sand peg kit.

• *Bonus Inclusions do not make up part of tare weight

FRIDGE SIZE

PLENTY X CAMPER TRAILER

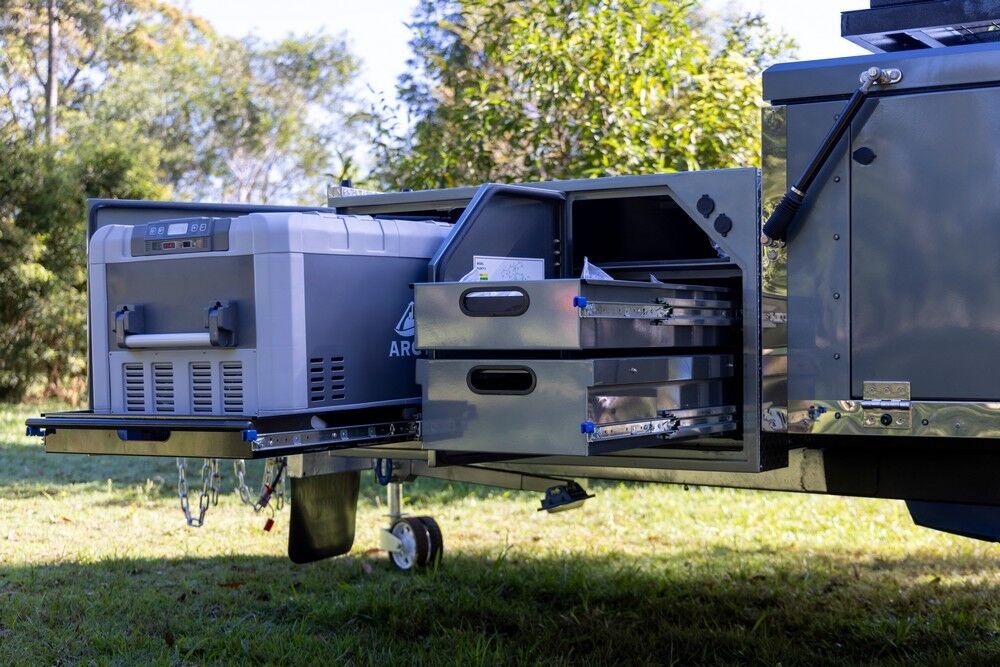

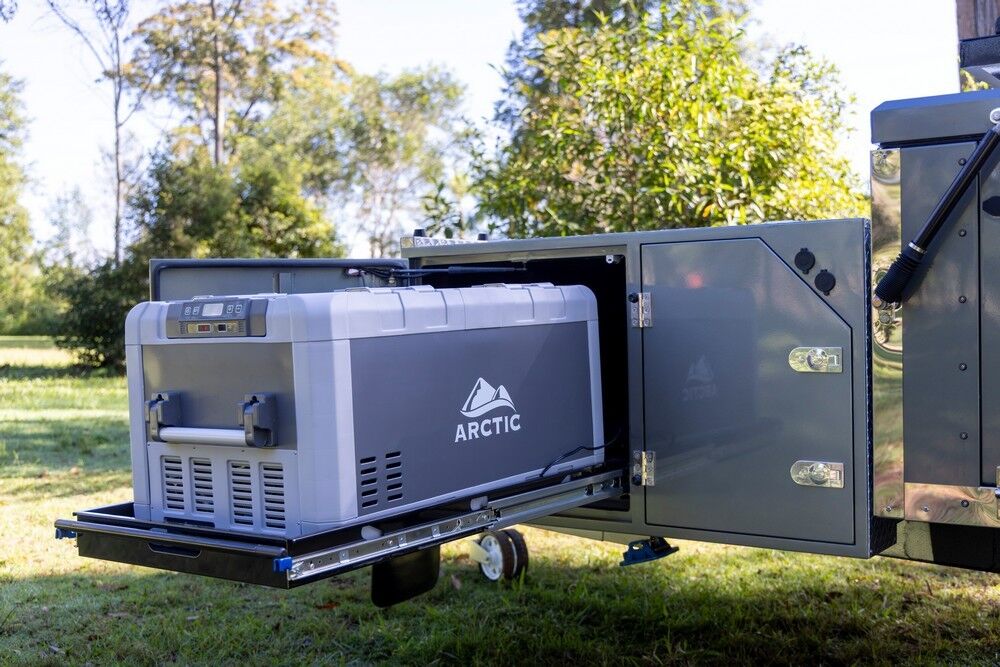

• FRIDGE SLIDE: 950L x 600W x 510H mm

• FRIDGE COMPATIBILITY:
  Primus
  PRI37LDZM / PRI45LM / PRI65LDZM / PRI74LM
  Waeco
  CFX-95 / CFX-35 / CFX-40 / CFX-50
  Engle
  MT-60FP / MT-60FCP
  evaKOOL
  G75-DX-DL / G45 / TMX38 / TMX45 / TMX50FF / RF47 / RF60 / RF85
  Bushman
  35L / 45L / 52L
  Ironman
  IFRIDGE65SP / IFRIDGE74SP
  ARB
  35LT / 60LT

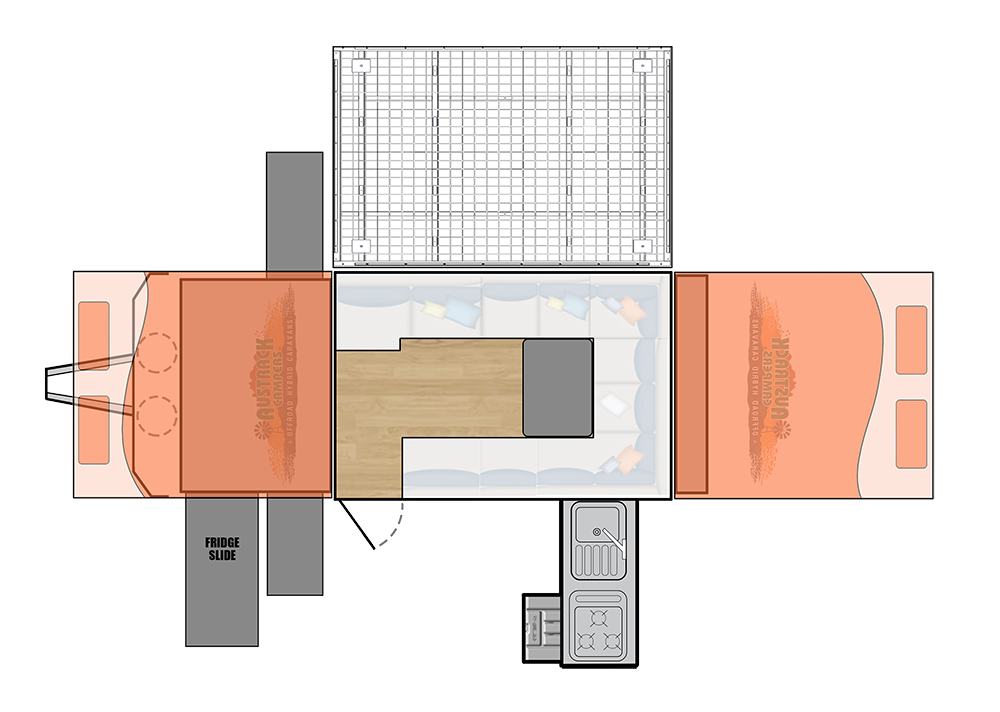

FLOOR PLAN

PLENTY-X CAMPER TRAILER

DOWNLOAD FLOORPLAN

DELIVERY

We can deliver your new Austrack Camper to you to most capital cities in Australia and northern Queensland. Check out our Events page to see if we are coming to a town near you for one of the many camping expos we attend each year. Also check our Distributors page to see if we have a local dealer in your area.

NB – These prices are a rough guide and are for all camper trailers. Please contact us for a quote or for more information.

QUEENSLAND

• Cairns $950
• Townsville $800
• Mackay $800
• Rockhampton $600

NEW SOUTH WALES

• Sydney $800

VICTORIA

• Melbourne $950

SOUTH AUSTRALIA

• Adelaide $950

NORTHERN TERRITORY

• Darwin $1,500

WESTERN AUSTRALIA

• Perth $2,300
