SPECIFICATIONS

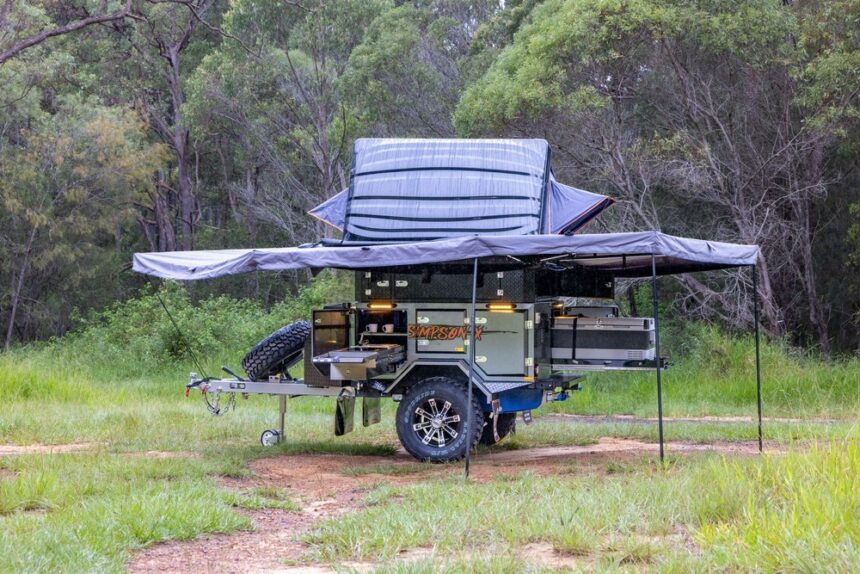

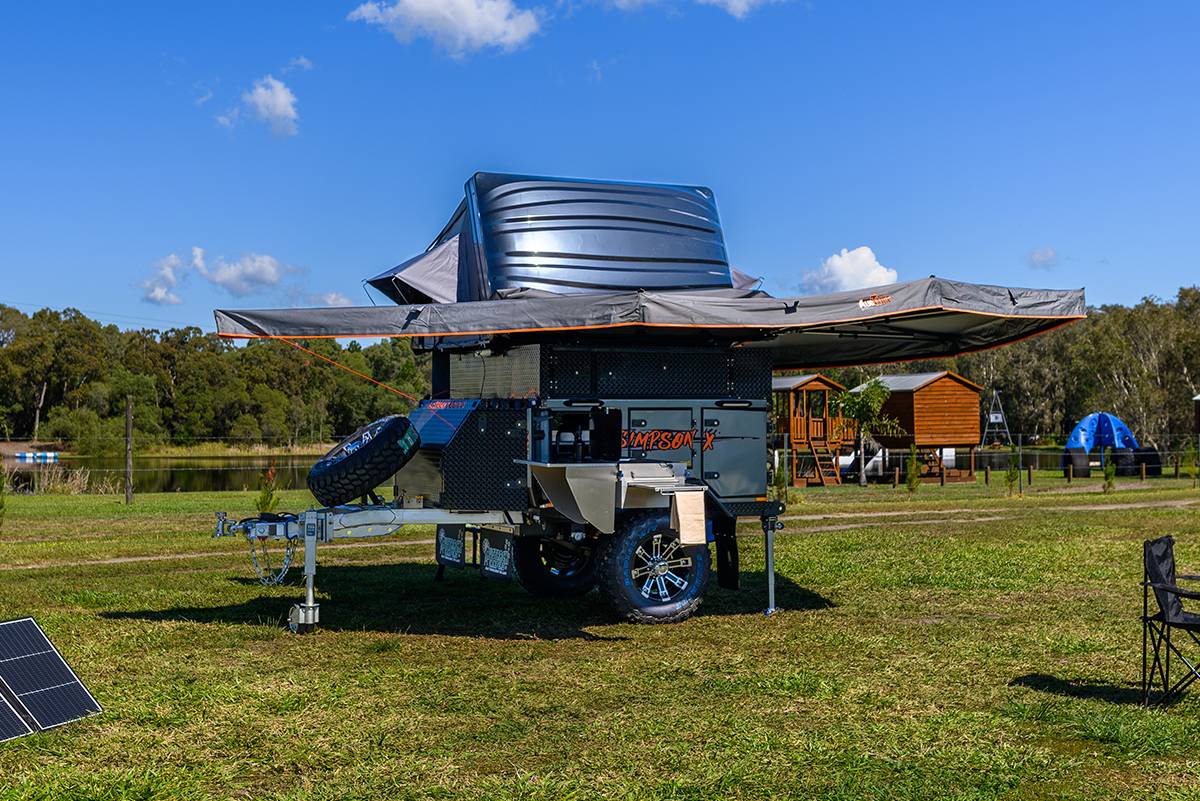

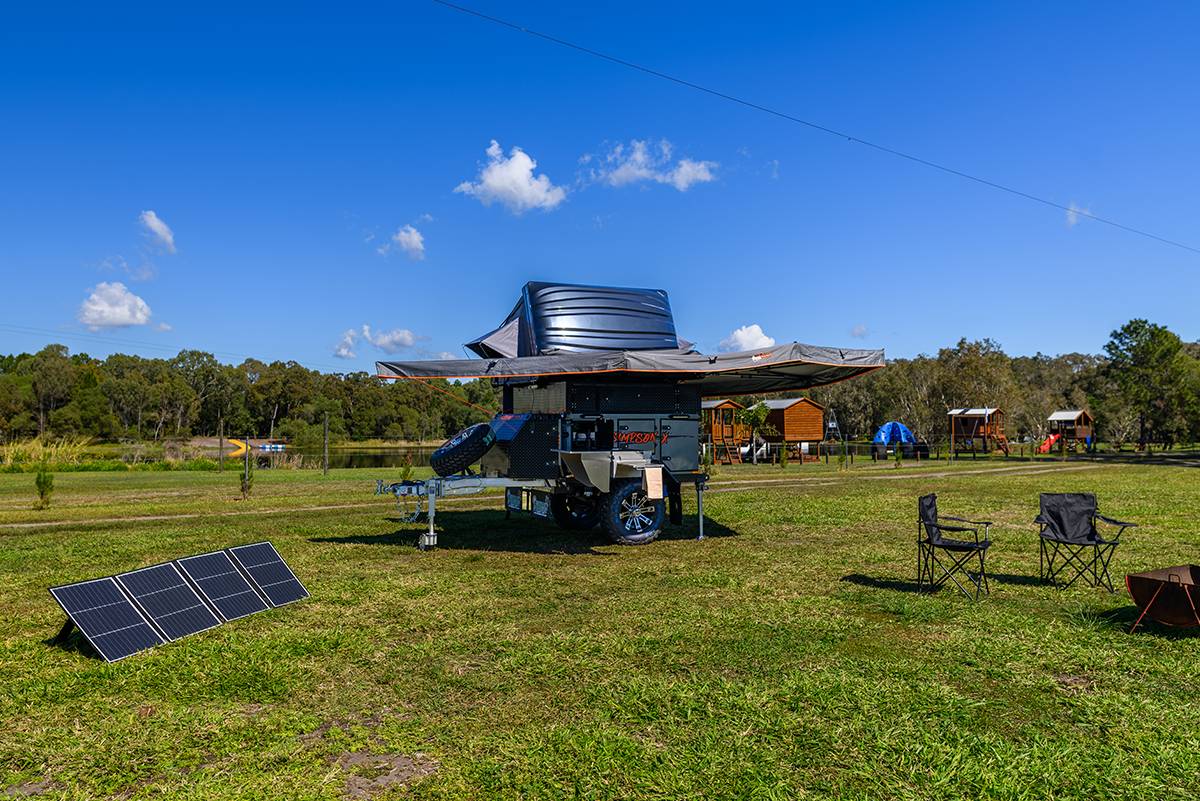

Austrack SIMPSON X Rooftop Tent Trailer

SPECIFICATIONS

• Finish: Baked enamel metallic finish with polished aluminium trim.

• Construction: Zincanneal steel with underbody deadener protected chassis & drawbar.

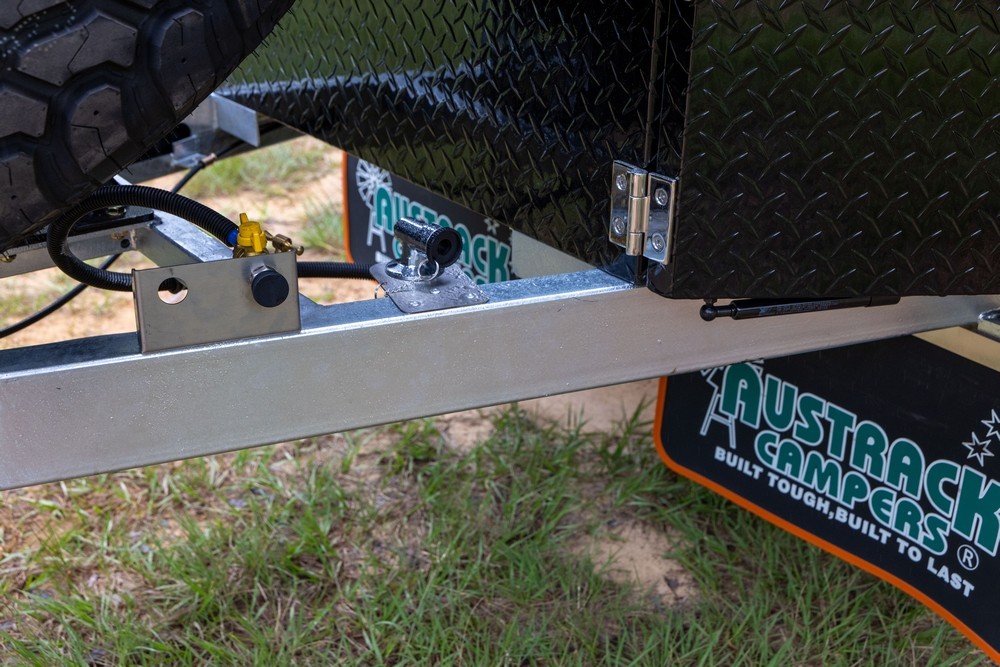

• Drawbar & Chassis: Fully Welded hot dipped galvanised full RHS box drawbar and chassis 100 x 50 x 4.0mm.

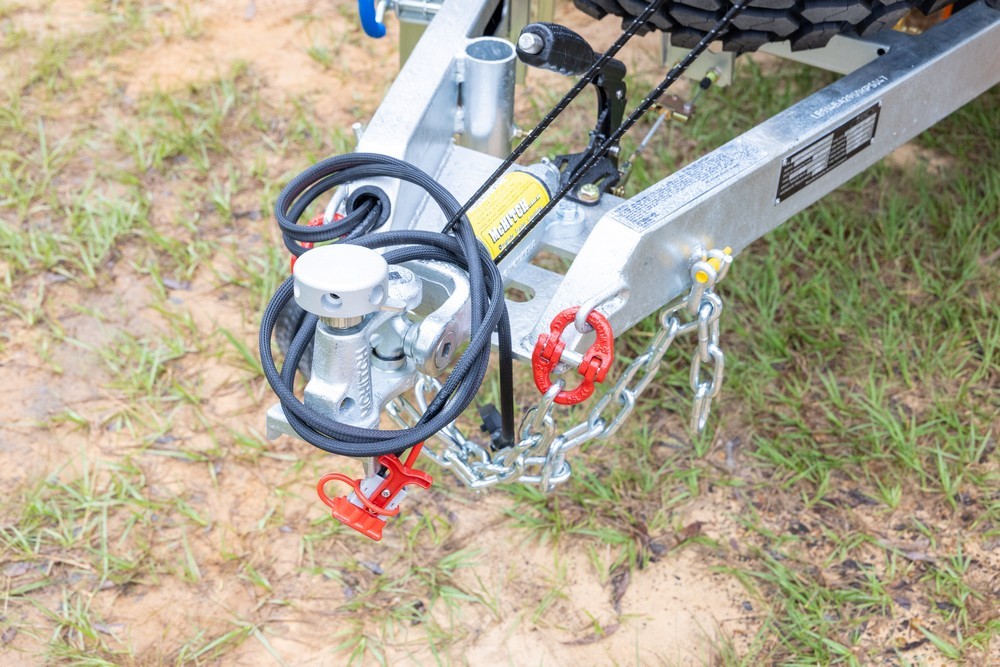

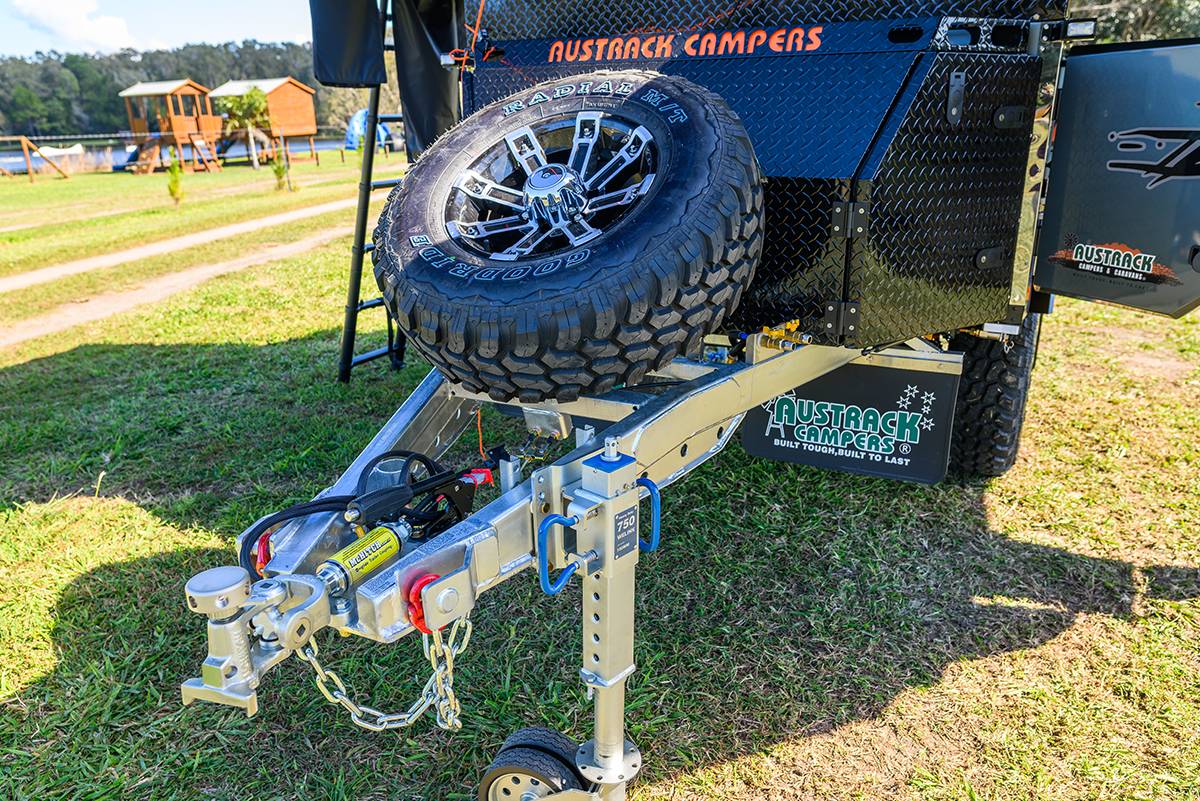

• Hitch: McHitch Uniglide 2T Drop on platinum coupling. Double ADR approved rated safety chains. Coupling handle.

• Brakes: 6 stud hubs, heavy duty parallel bearings and 12 inch heavy duty electric brakes with mechanical handbrake.

• Jockey Wheel: Ark XO Series extra heavy duty swing away dual wheel jockey wheel.

• Electrical Connection: 7 pin round or 7 pin flat trailer plug, to suit your vehicle & 50amp Anderson Plug wired to batteries.

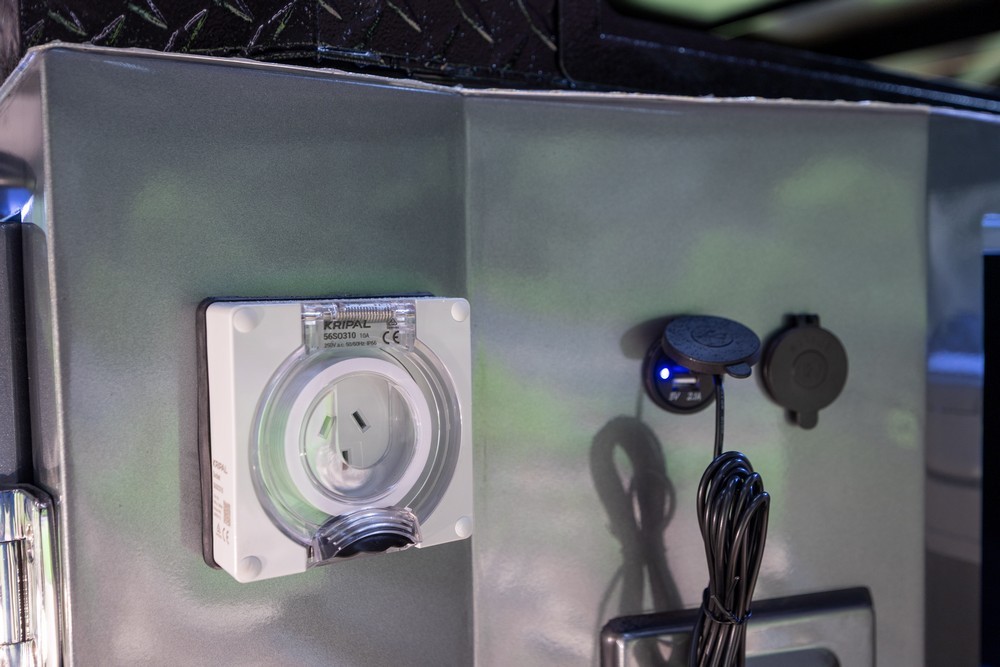

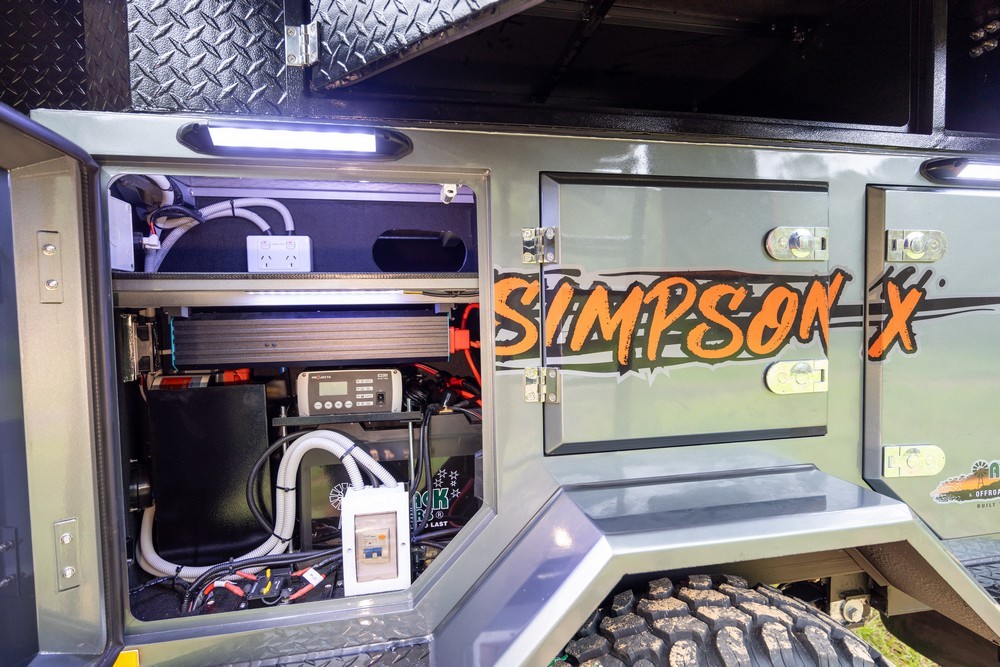

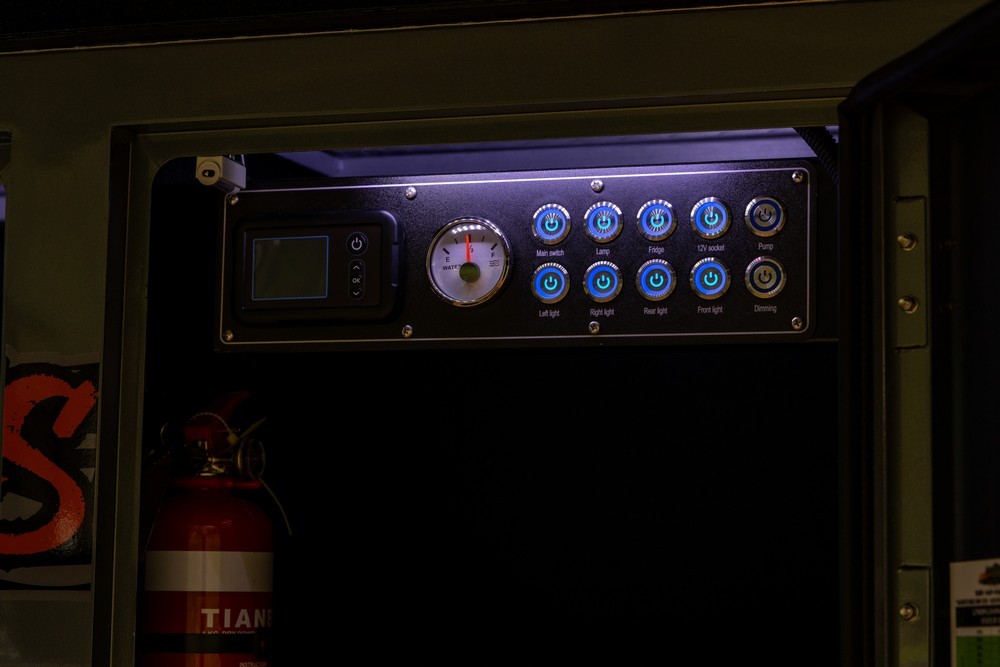

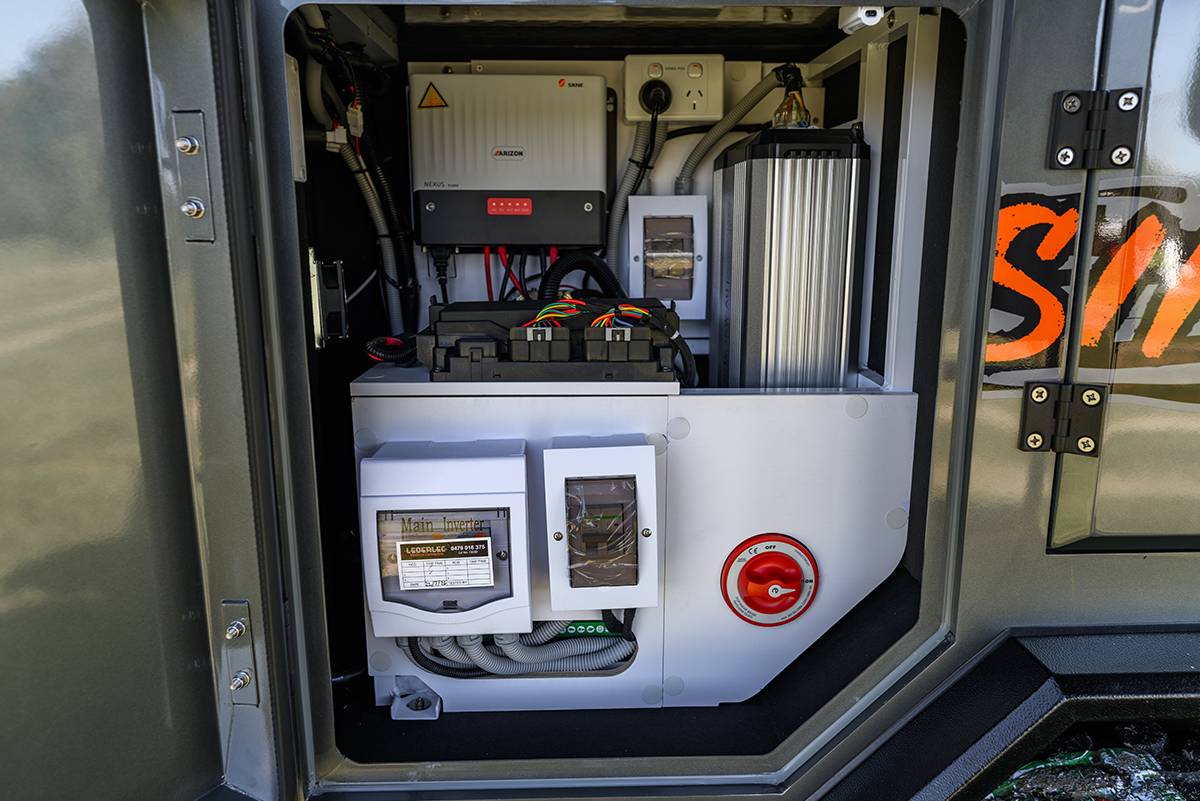

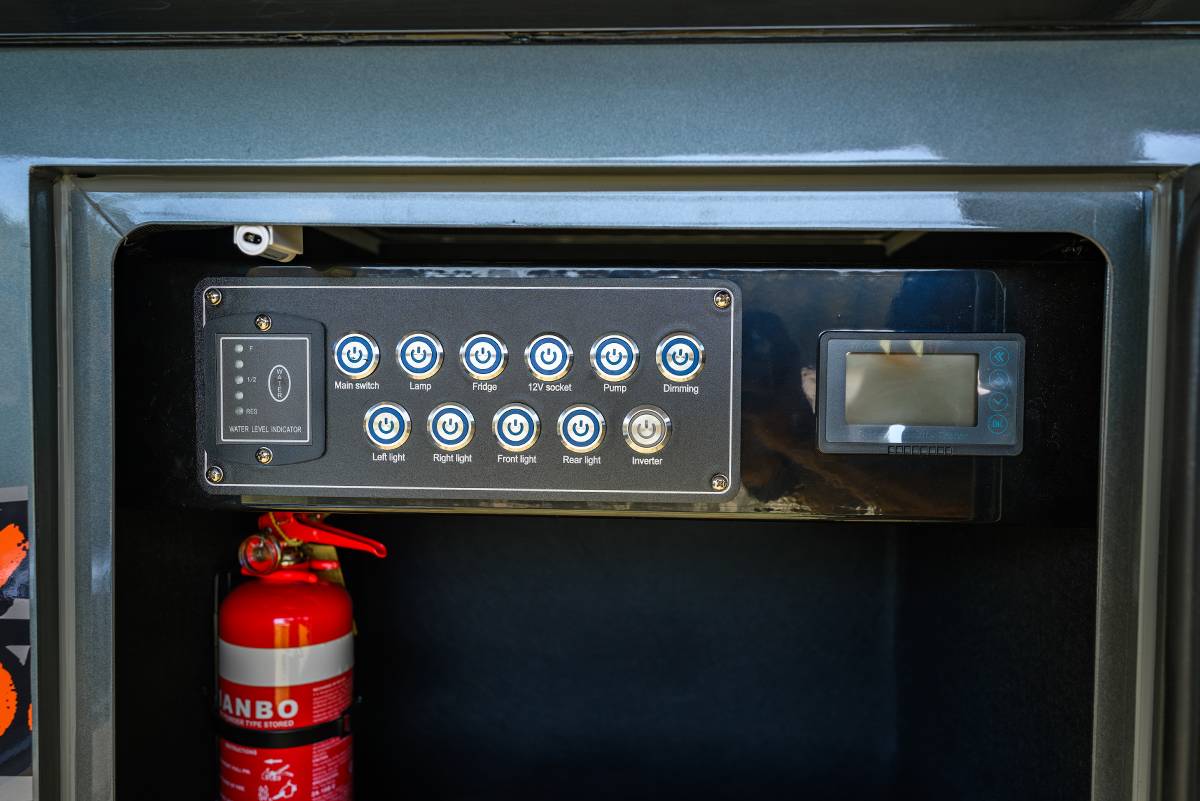

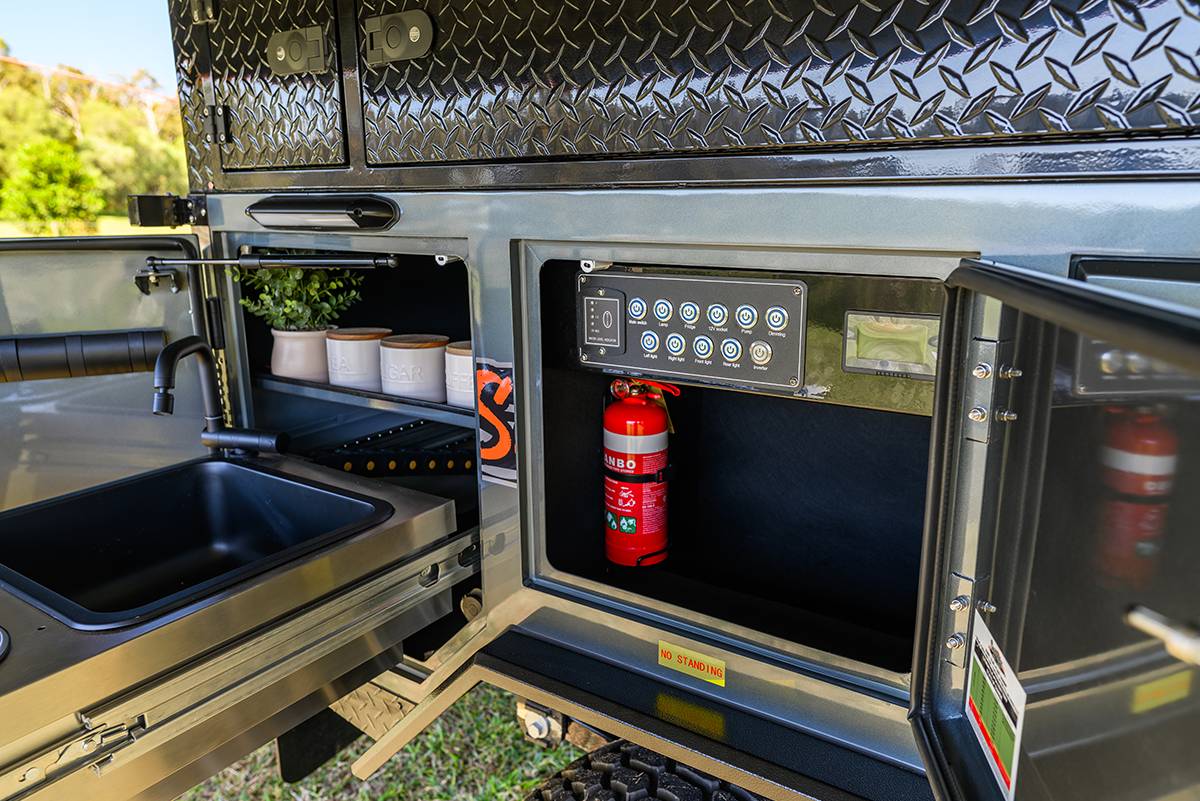

• Electrical System: 2 x 100amp hour GEL deep cycle batteries with 12v accessory & USB sockets. 240v charger. Digital display voltmeter, ampmeter. LED brake and indicator lights, LED number plate & clearance lights, reflectors. Water level gauges.

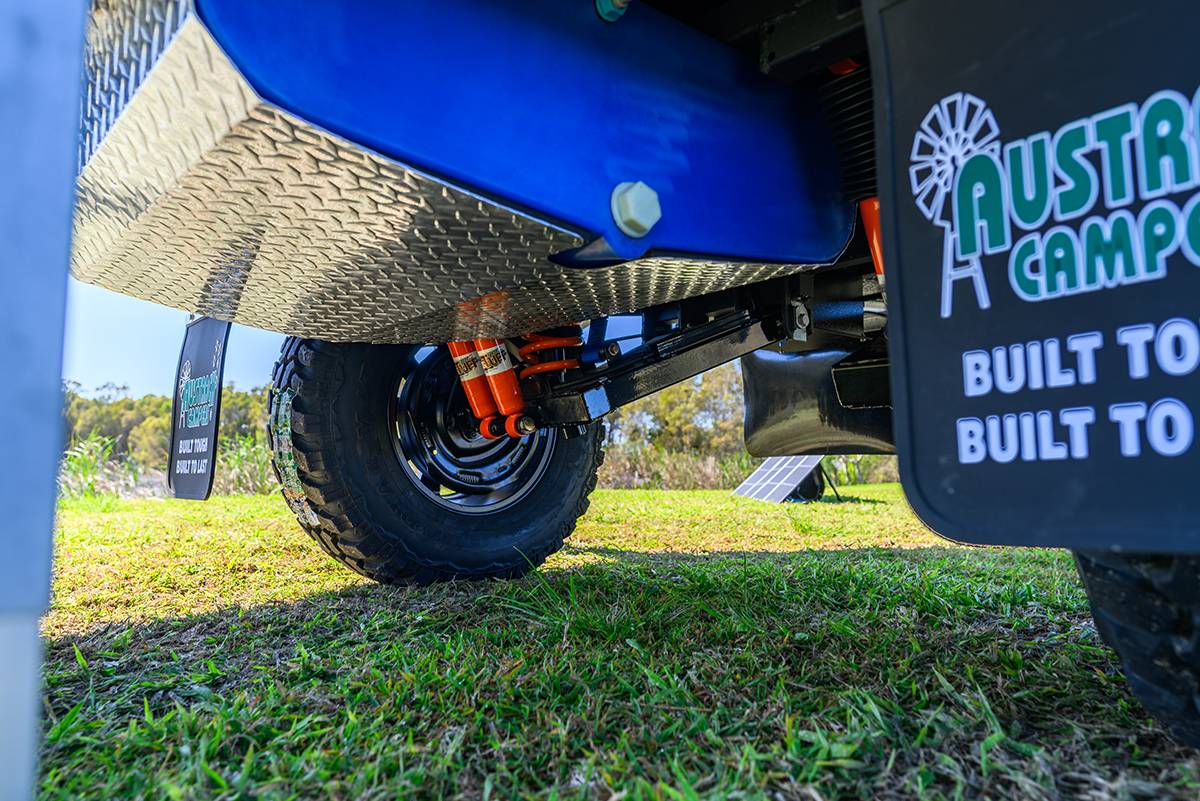

• Stone Guard: Modern aluminium checkerplate stone guard with embossed mud flaps.

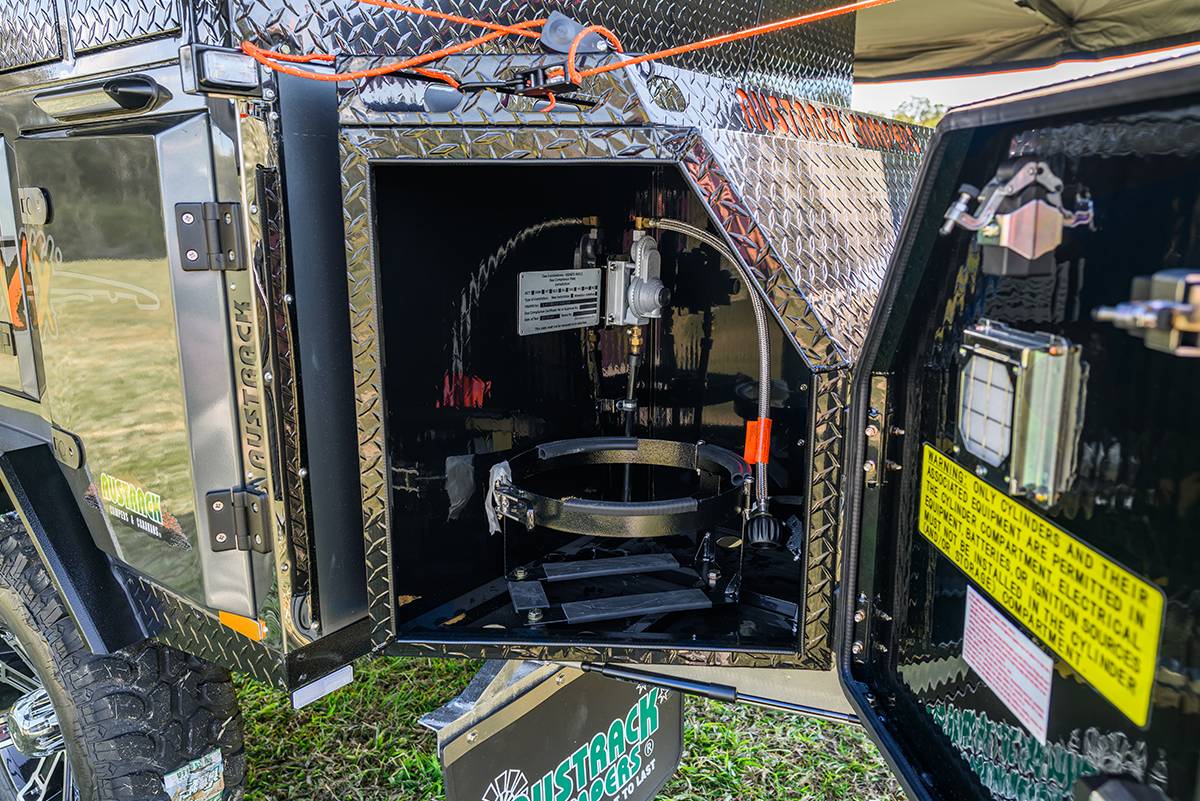

• Gas & Fuel: 1 x 9 kg gas bottle holder. 2 x 20L Jerry can holders.

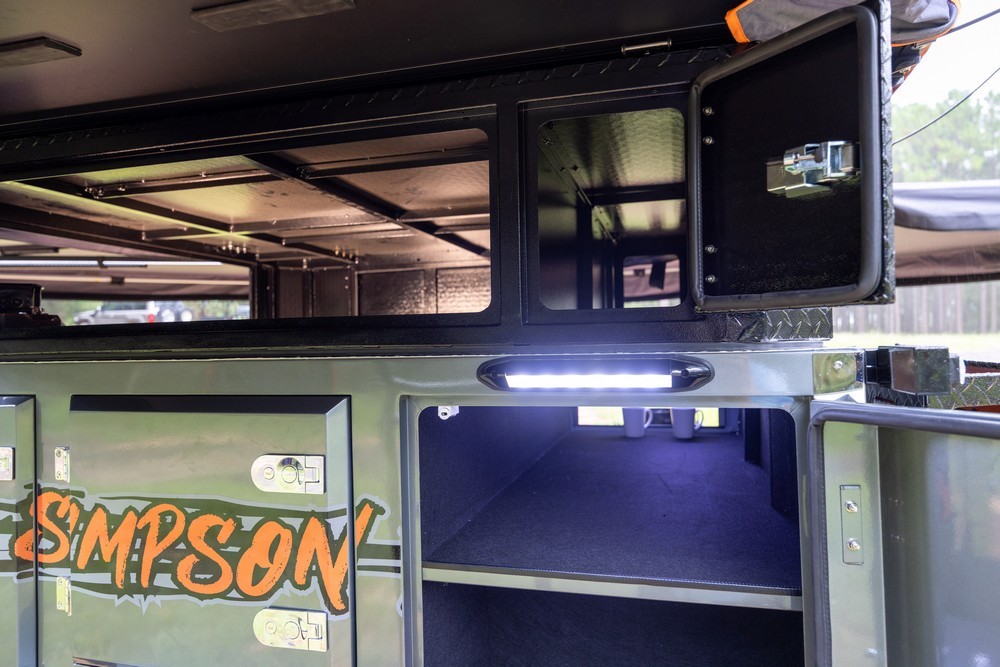

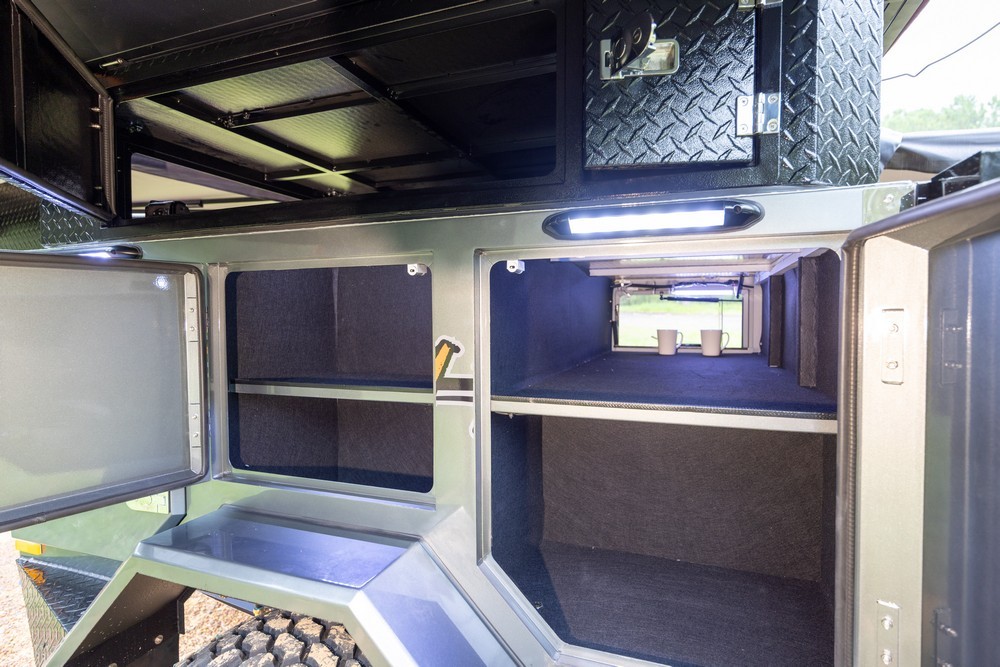

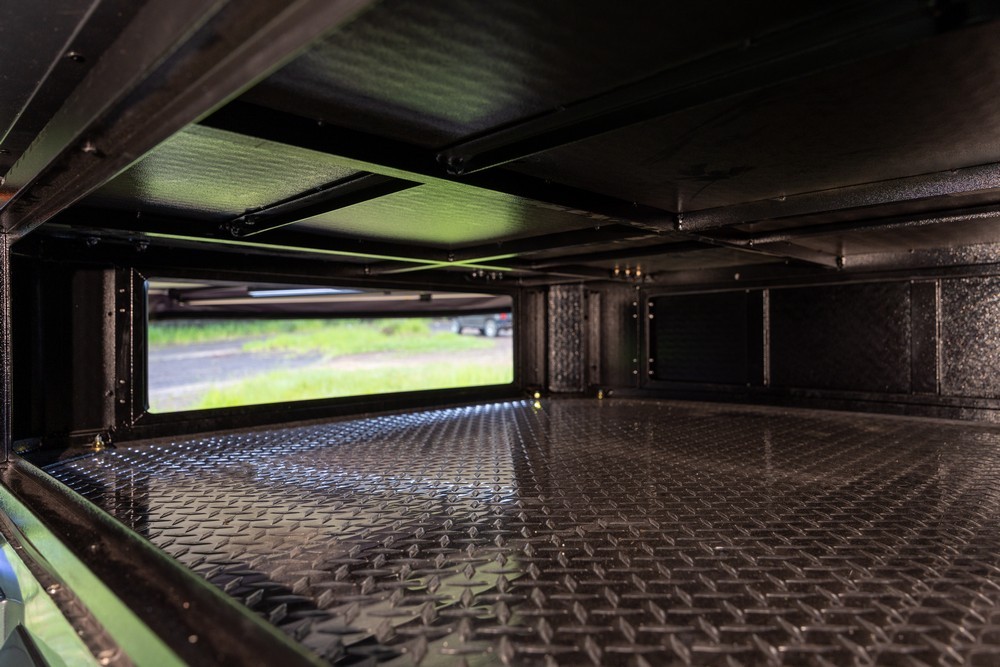

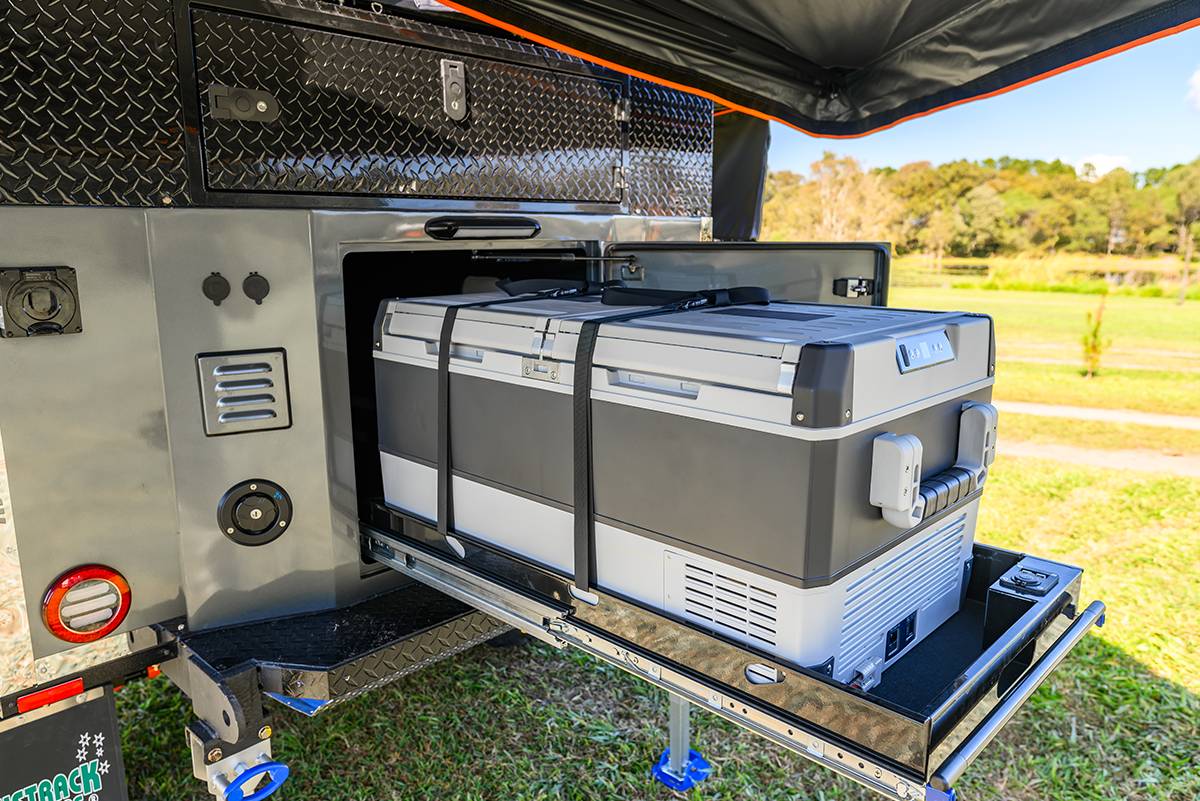

• Storage: Multiple storage compartments with slide out drawers, fridge slide (1100 x 490 x 550mm)

• Gas Lines: Fully plumbed gas and gas complied

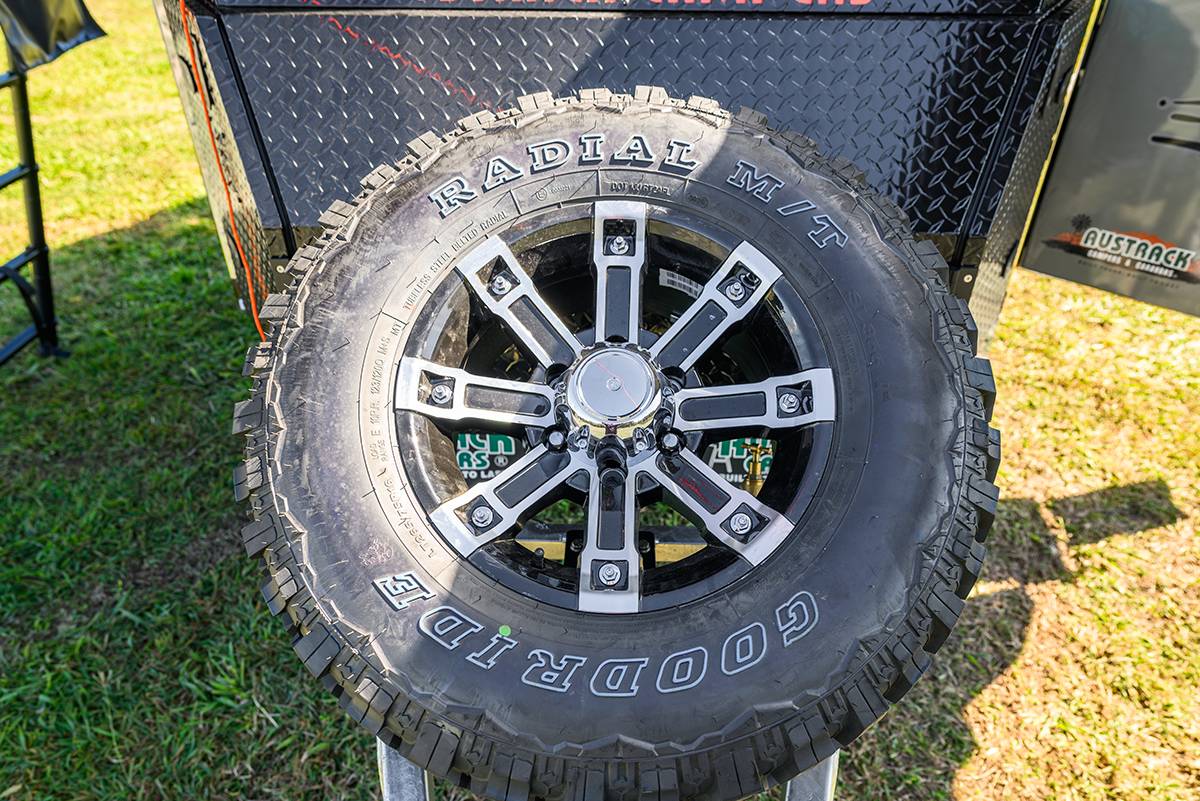

• Wheels & Tyres: 3 x Brand new alloy wheels with chrome wheel nuts & 3 x Brand new tyres 265/75 16. Front mounted spare wheel. Heavy duty drop down stabiliser legs & winder. Fire extinguisher.

• Water Storage: 100 L stainless steel underfloor water tank with aluminium tank guard & 12v pump plumbed to kitchen.

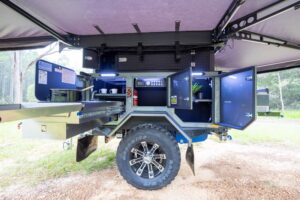

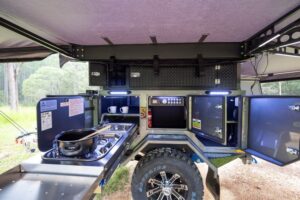

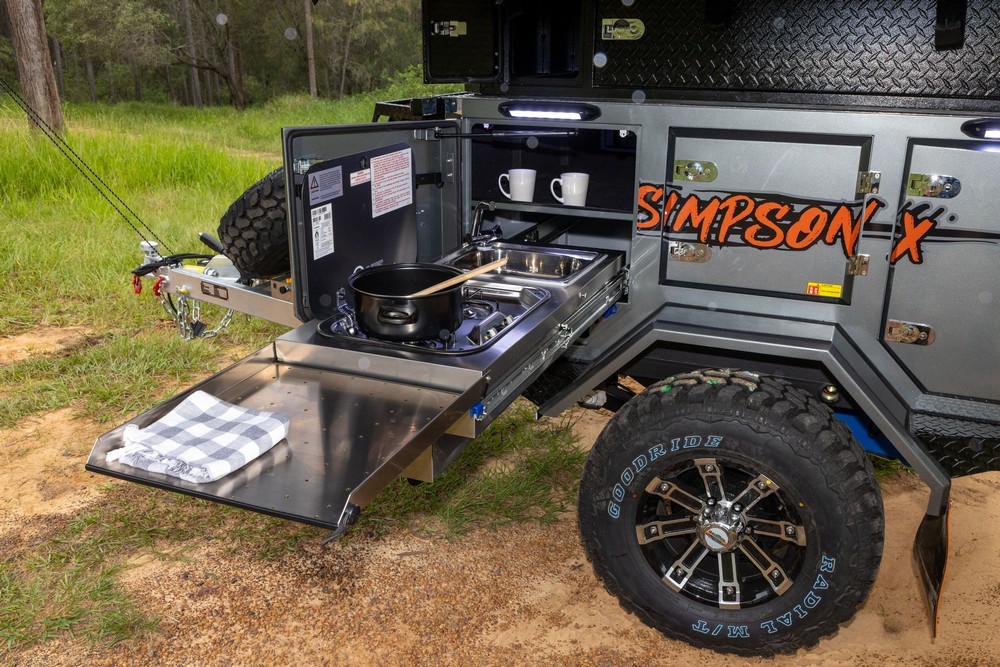

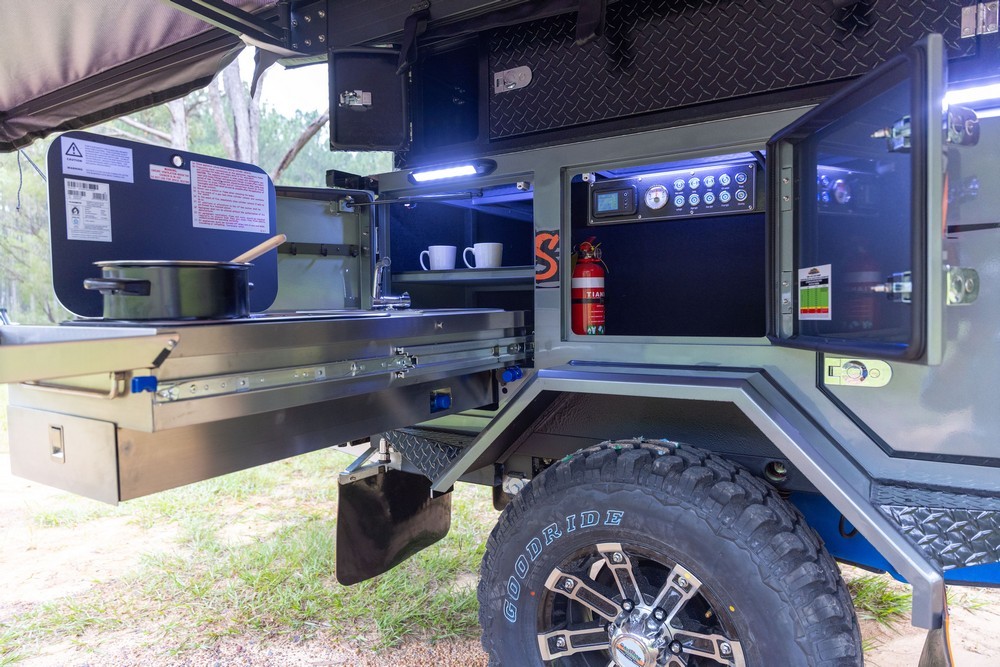

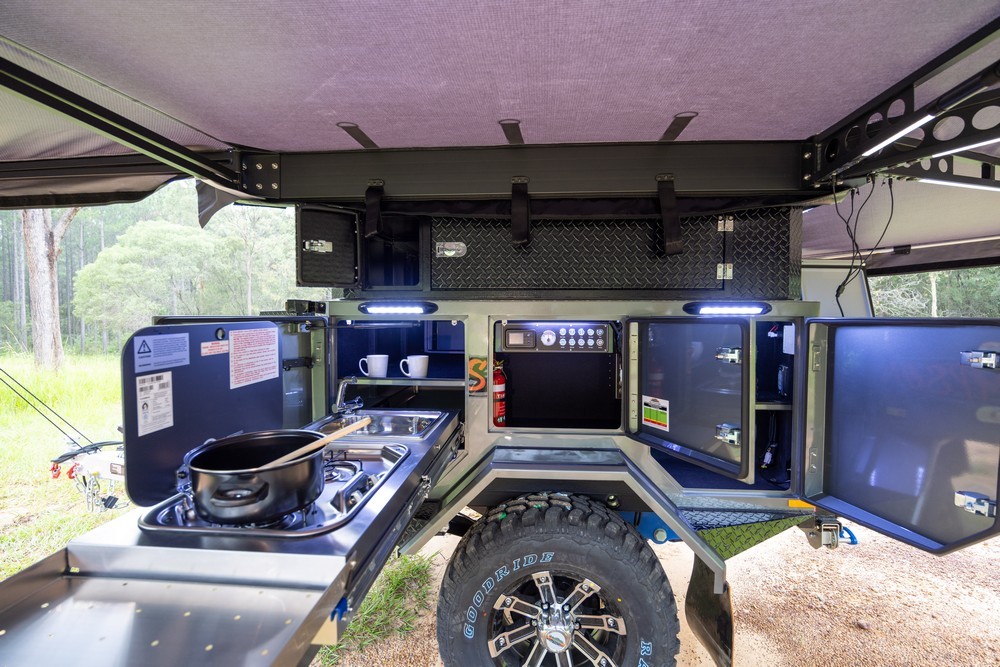

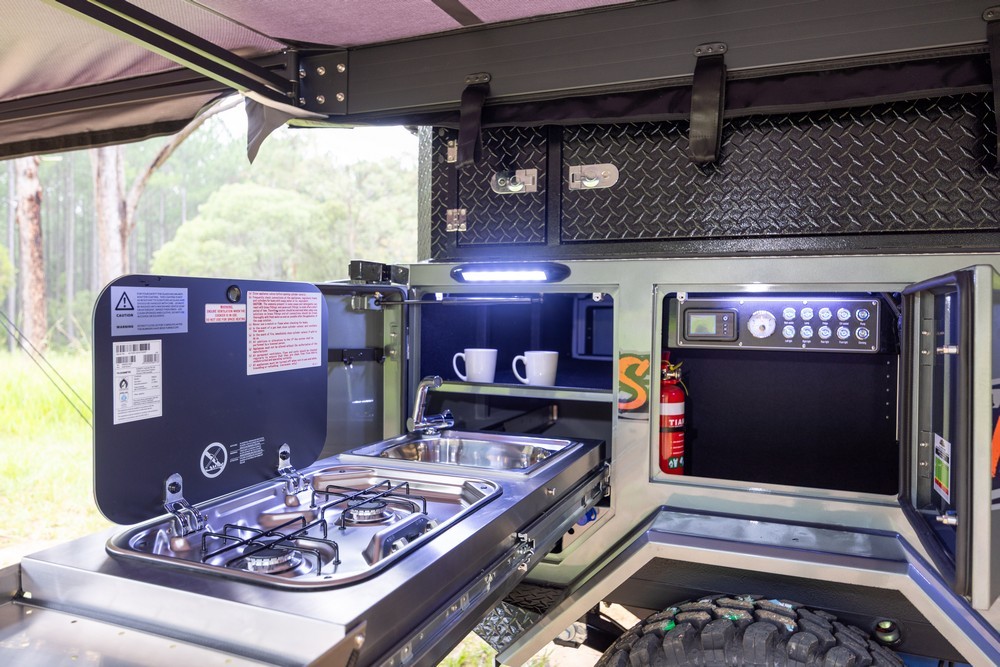

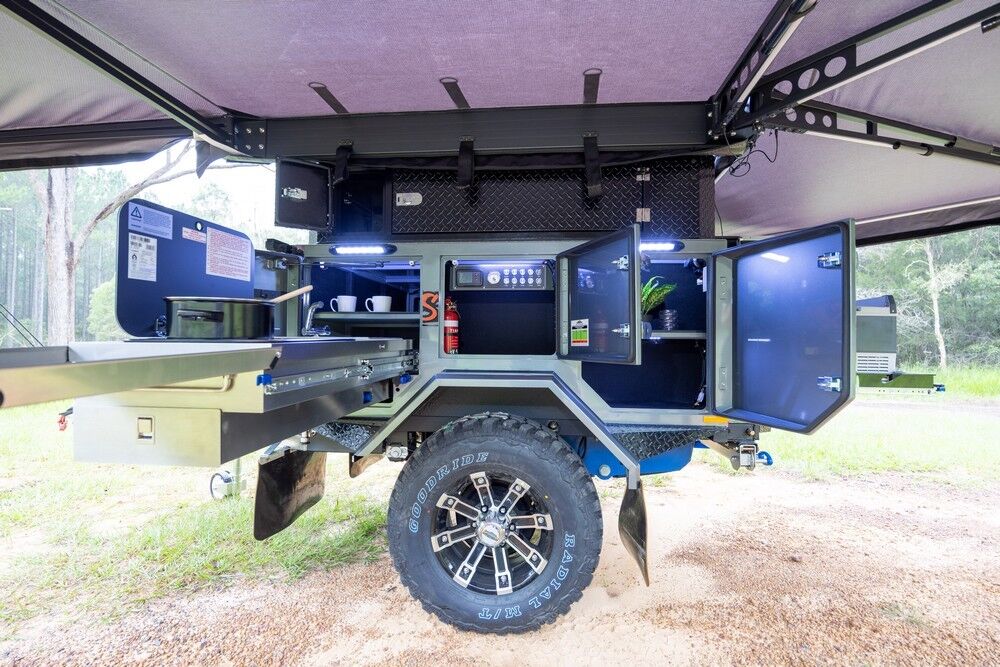

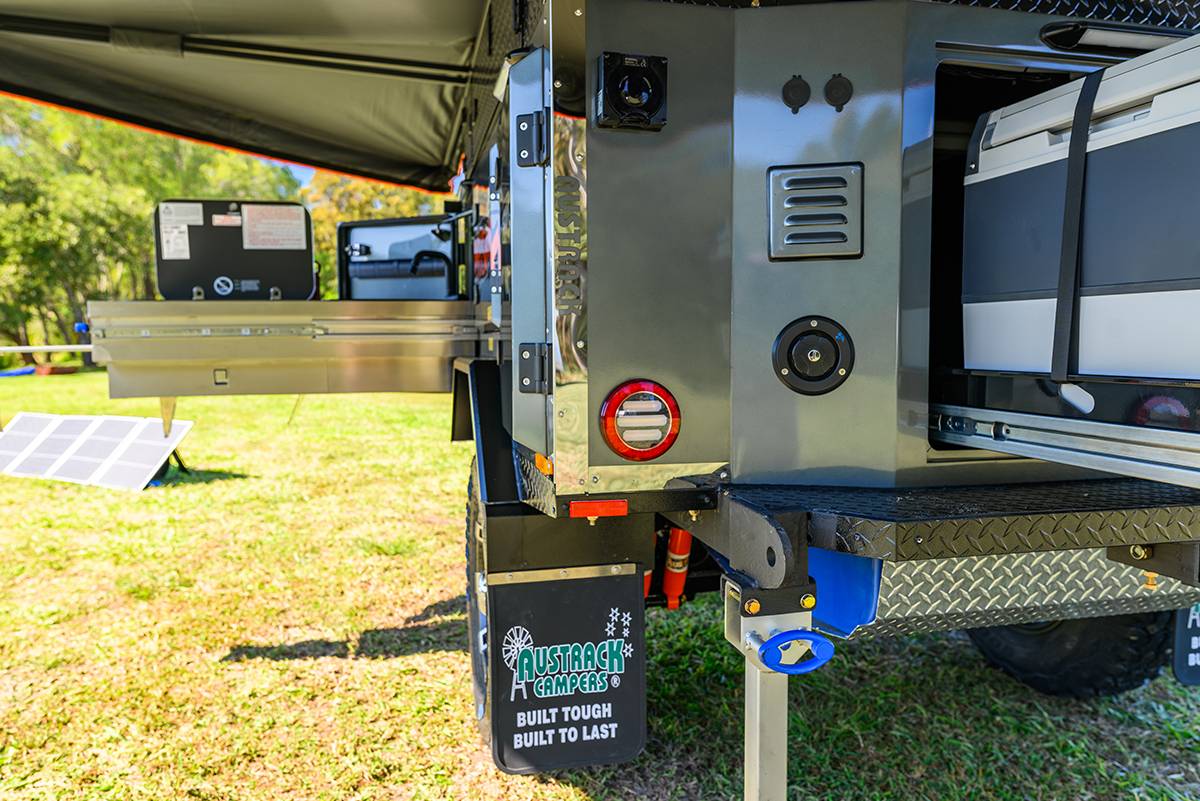

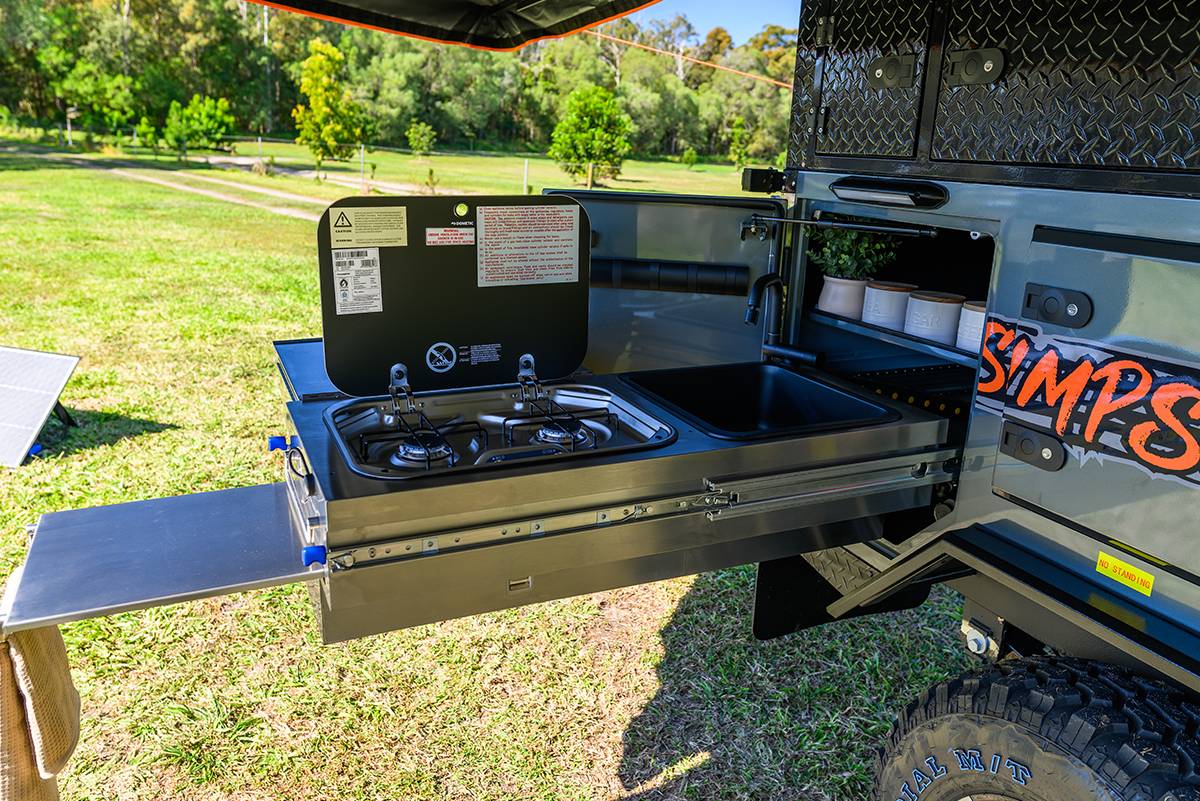

• Kitchen: Slide Out Stainless steel kitchen with drawers, electric pump, tap, large sink & AGA approved 2 burner smev stove. Dimensions: 1000(w)x400(d)x300(h) (mm)

• Measurements: 4100x1800x2200mm

• Tare weight (incl tent): 900 kg

• Registered: as 1480 kg trailer

• VIN plate: all ready for registration

TENT FEATURES

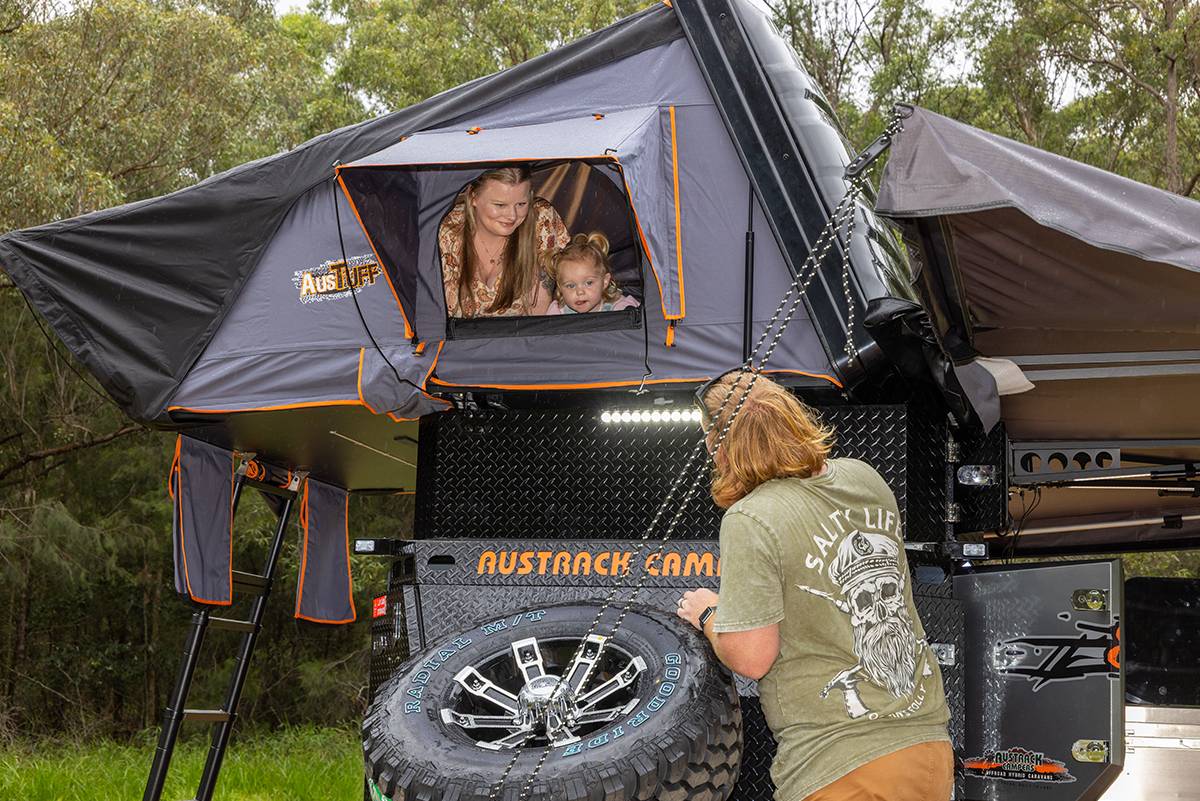

SIMPSON X ROOFTOP TENT CAMPER TRAILER

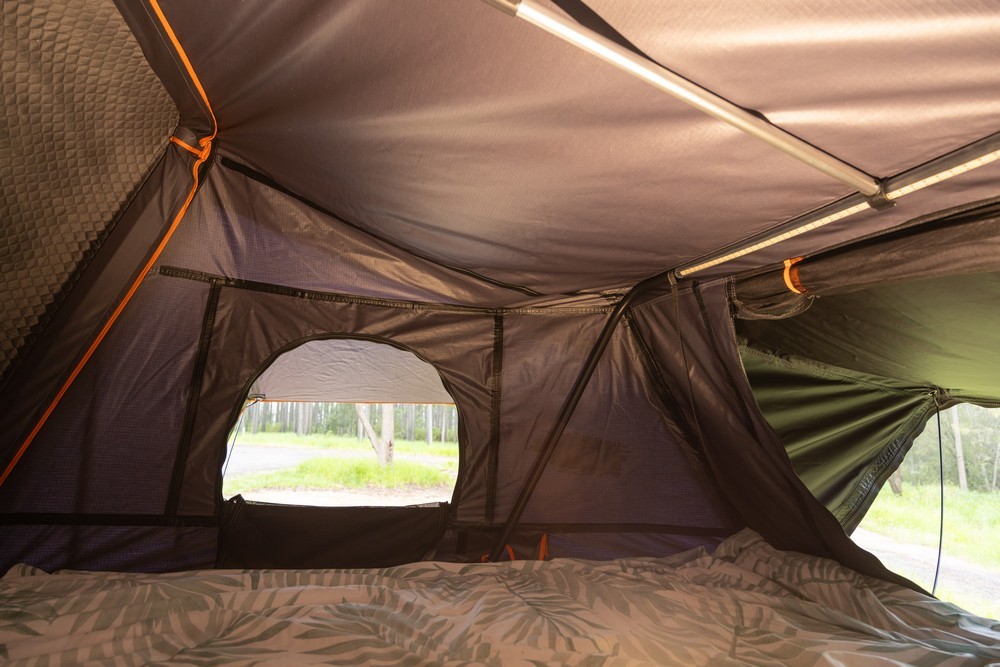

• MATERIAL: 13oz ripstop canvas with M3 midgee mesh on all windows, vents & doors. Heavy duty PVC floor sewn into main tent.

• WINDOWS: All windows and doors are manufactured from M3 micromesh/midgemesh, (not mossie mesh), vital for bug protection in a tropical or coastal climate. The mesh windows can also be zipped open & have double zips. WINDOW COVERS – Has zip open internal closing window covers as well as a zip open external window cover. No need to go outside to close up if adverse weather. External windows have awnings for protection from the sun or rain. All windows and doors have toggle tie backs.

• SIZE: (closed )3150 x 1820 x 400mm high
  (open )3150 x 1820 x 1300mm high

• WEIGHT: 68 kg

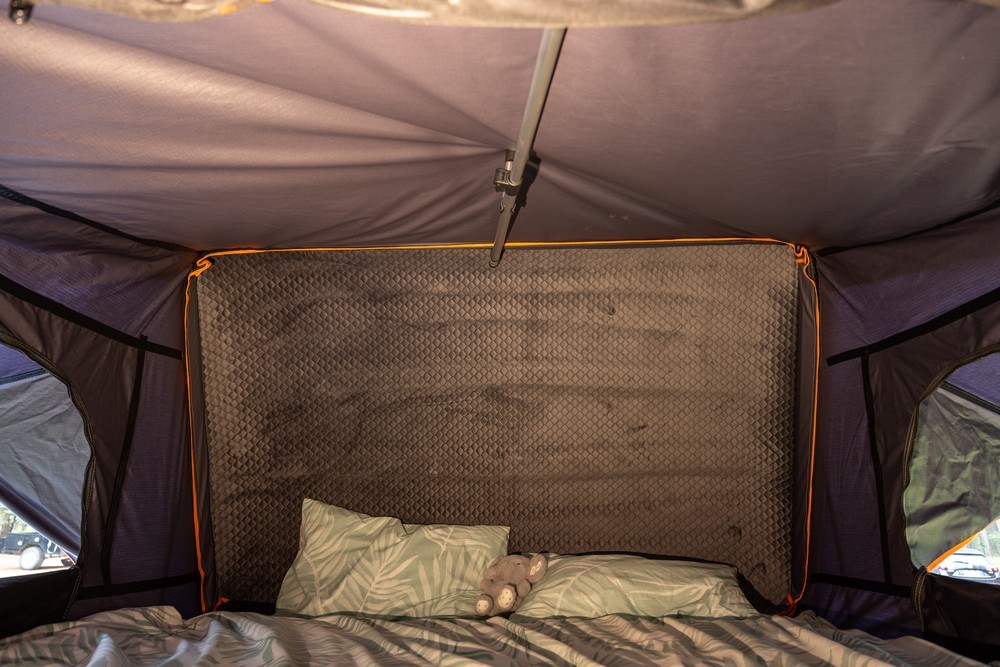

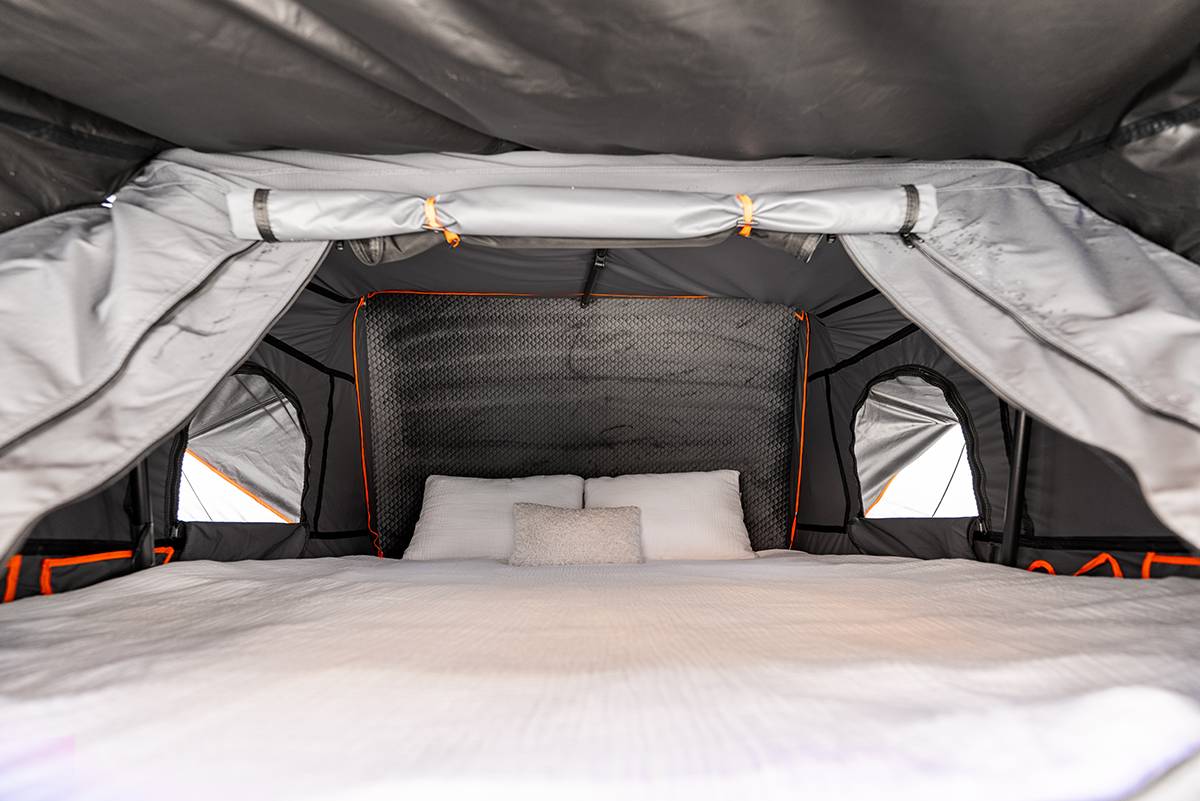

• MATTRESS: 75mm medium density foam mattress with zip off cover for washing.

• POLES: All internal tent poles are 22mm aluminium.

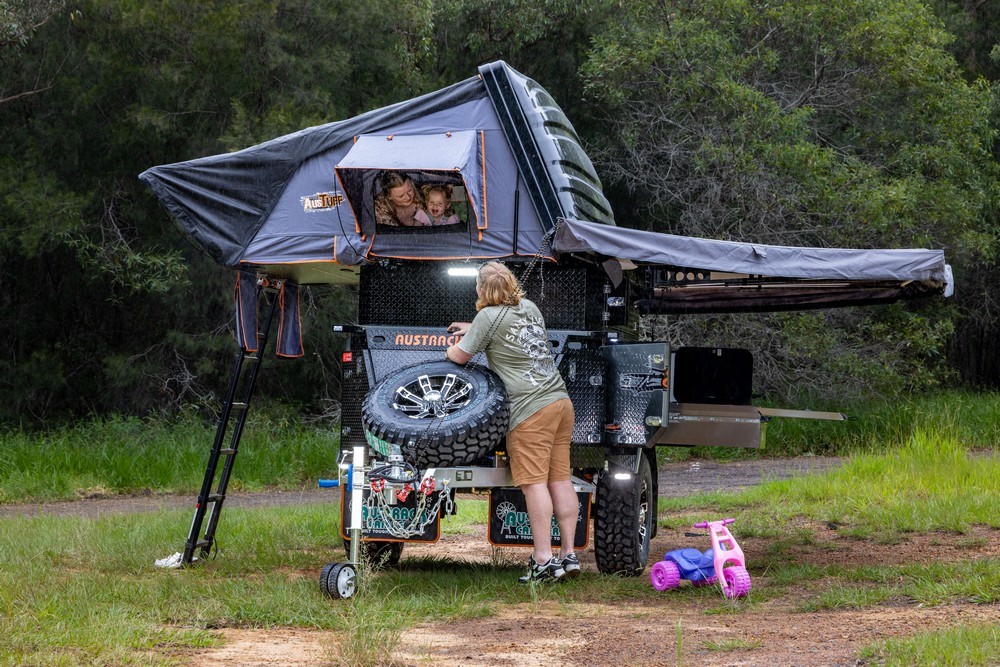

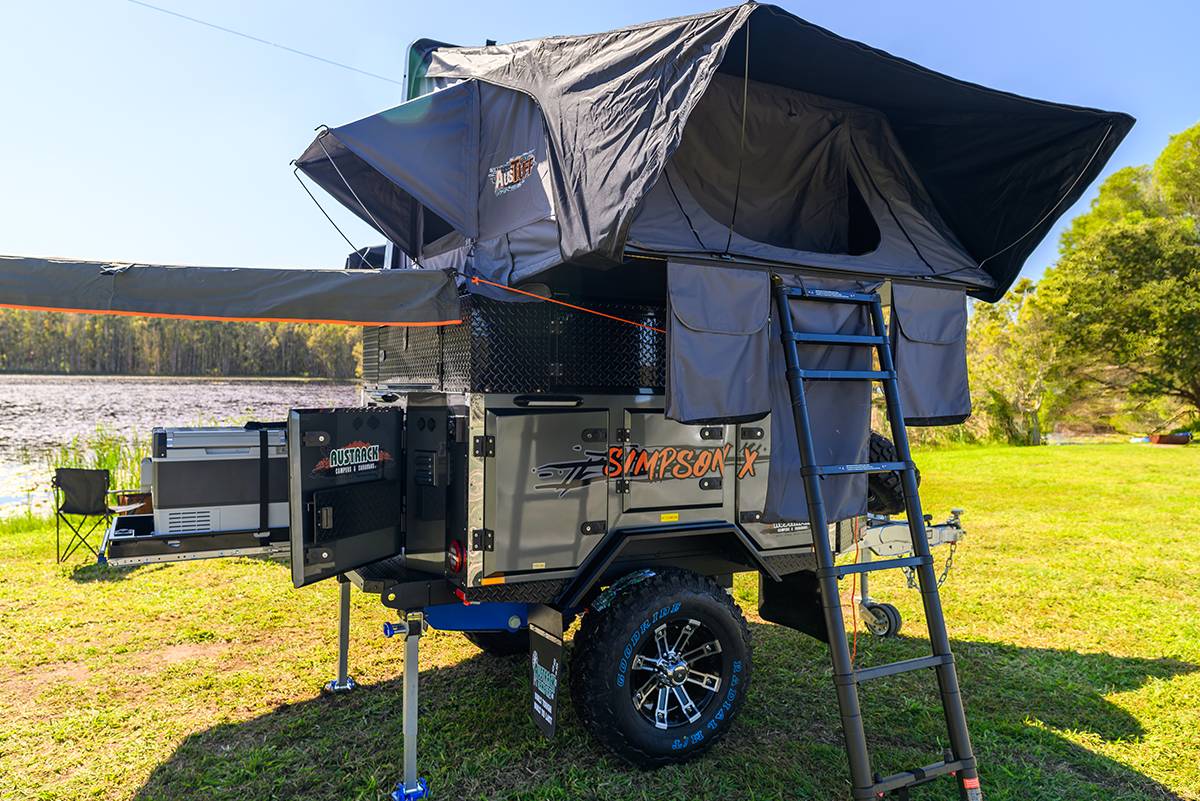

• LADDER: Very strong telescopic aluminium with 40mm treads for comfort in bare feet.

• TRAVEL COVER: Heavy duty waterproof PVC. UV treated complete with quality zips. The base of the cover is fitted into aluminium sail track (annex rail) which protects the tent from dust & water. Complete with tie down straps.

• VENTS: ANNEX WALLS – Can be zipped on or off very quickly. Includes two windows and a door. The U shaped panel at the rear of the annex walls can be zipped open to enable you to access your vehicle through either the rear door or side door (depending whether rear or side mounted tent). As an option you can have a 150mm extension piece which zips on the base of the annex walls to allow fitting to vehicles with additional height, such as Patrols or Land Cruisers with lift kits or MT tyres etc.

• DOORS: TENT FLY – Uniquely designed wrap around removable & adjustable, made from oxford polyester, 100% waterproof, protects the canvas in a storm, and from sap, bird & possum droppings etc.

OTHER FEATURES

• Optional upgrades: canvas lower annex.

GALLERY

BONUS INCLUSIONS

SIMPSON X ROOF TOP TENT CAMPER TRAILER

• Gas Hot Water System

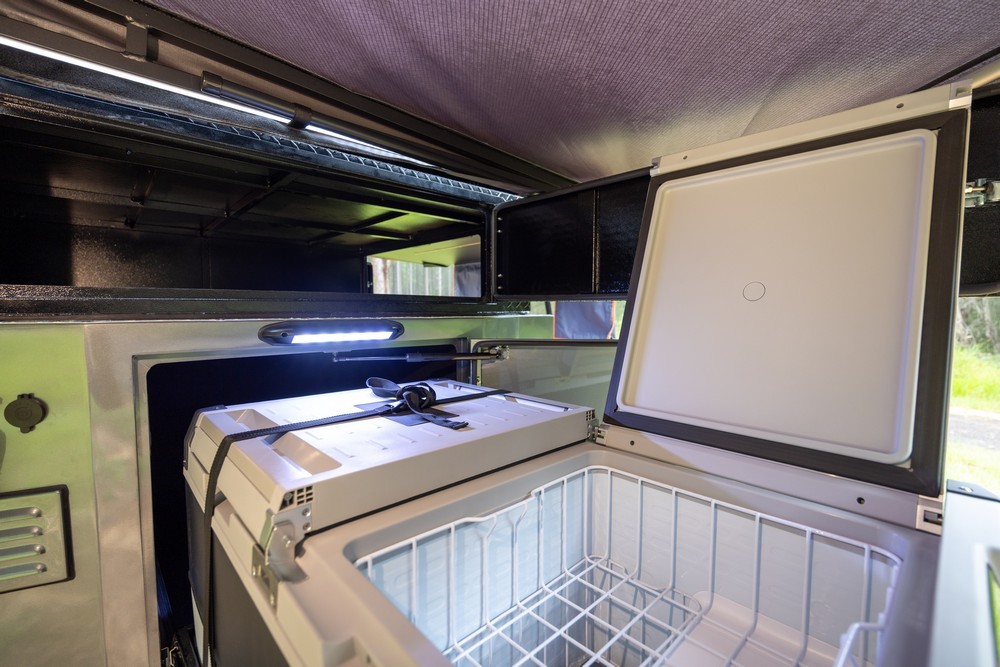

• Eva Kool 75L Dual Zone fridge/freezer

• LED light kit

• Awning Walls
• Ensuite/Shower
• Sandpeg Kit

• McHitch 2T

• Portaloo

• Stereo System

• Solar Panel

• 240V Charger

• 2x Gas Outlets

• *Bonus Inclusions do not make up part of tare weight

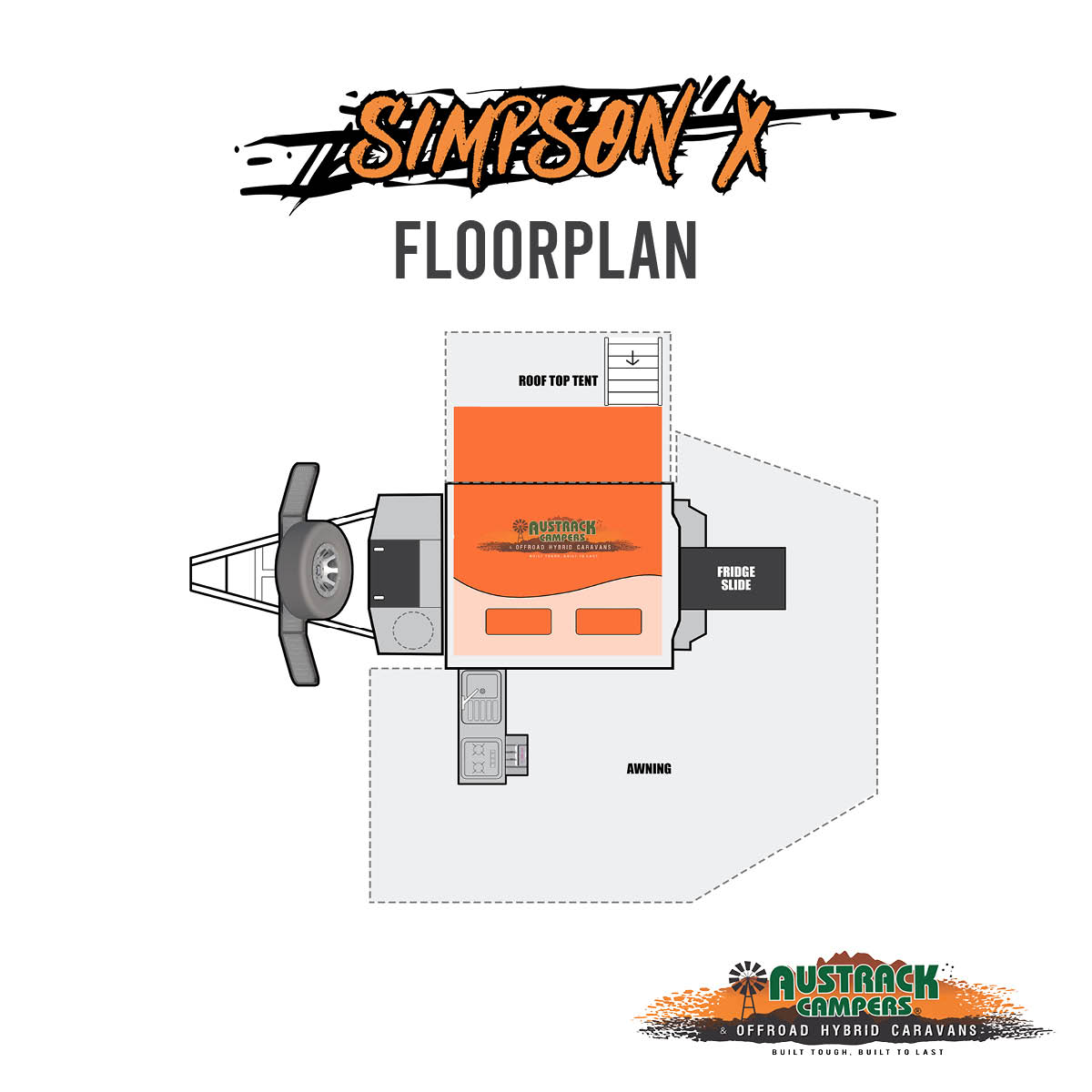

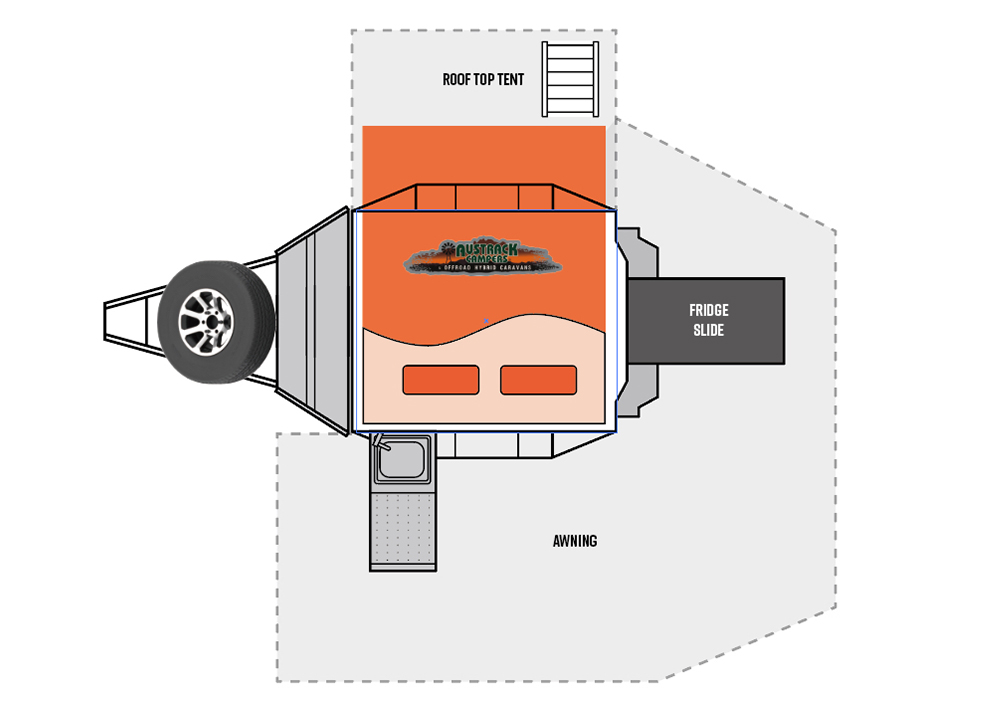

FLOOR PLAN
