McHitch Drop-On & Automatic Coupler USER MANUAL

Your McHitch coupler is a critical connection between your tow vehicle and trailer. Designed around McHitch’s proven universal-joint articulation system, both the Drop-On and Automatic Coupler provide a secure towing connection while allowing the vehicle and trailer to move independently across rough terrain, steep inclines, corrugations, and off-camber tracks. When correctly installed and maintained, McHitch couplers provide up to 90° of articulation in all directions for improved off-road performance and reduced stress on towing components.

Understanding Your Coupler
The McHitch range includes two coupling styles:

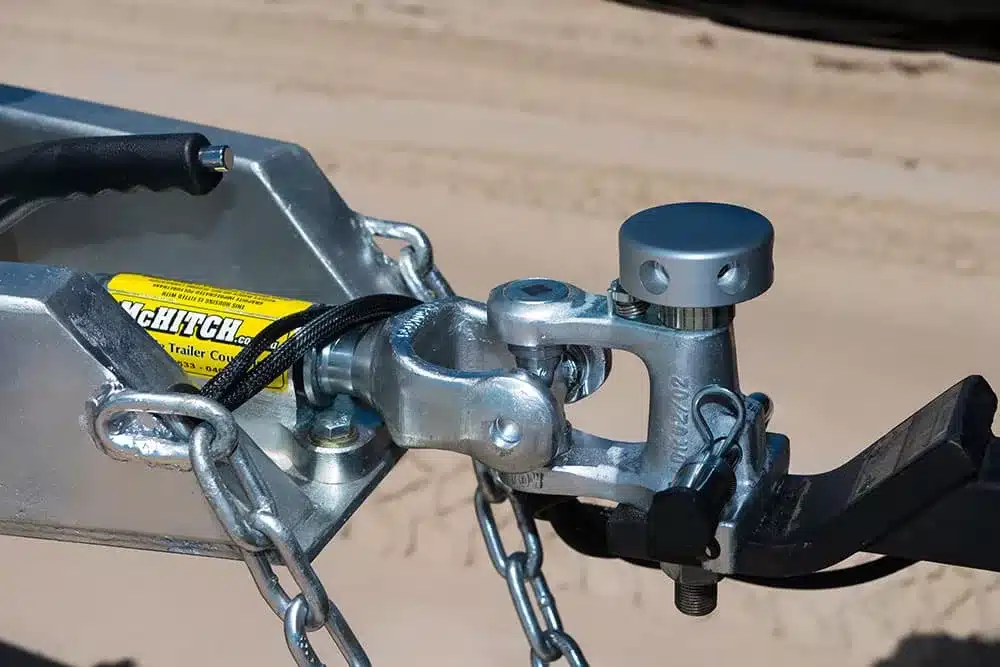

Drop-On Coupler

• Connects vertically onto a vehicle-mounted tow pin.
• Secured using a rotating locking head and secondary locking pin.
• Simple, robust design with minimal moving parts.

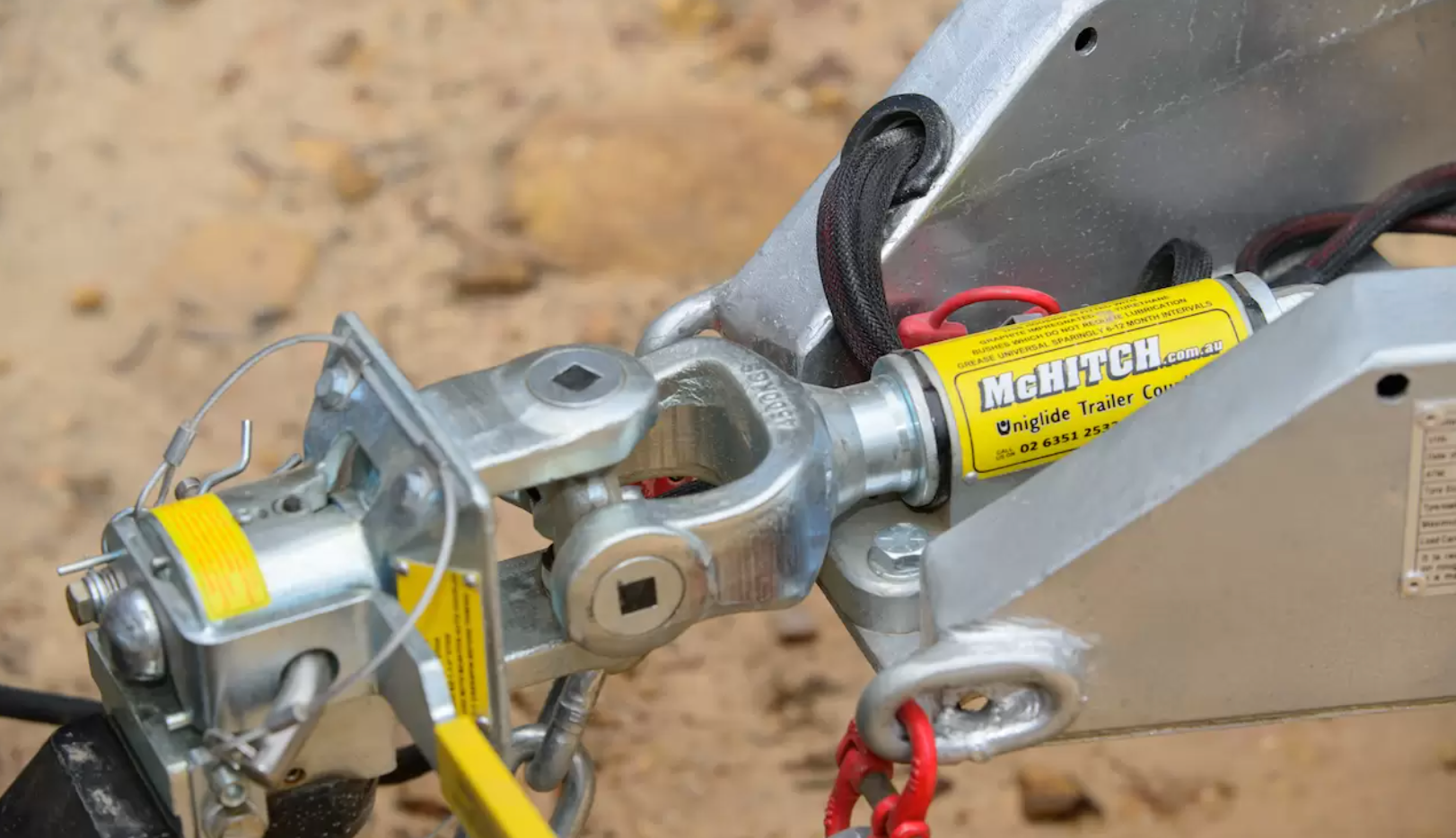

Automatic Coupler

• Uses a receiver and tapered engagement shaft.
• Automatically locks as the tow vehicle reverses into position.
• Secured with a secondary locking pin and retaining clip.

Both systems share the same articulation assembly, main shaft, nylon bushes, and secondary safety locking system.

Before Every Trip

A quick pre-tow inspection helps ensure safe operation:

• Confirm the coupler is fully engaged and locked.
• Check locking pins and retaining clips are correctly fitted.
• Inspect safety chains and shackles.
• Confirm electrical and breakaway connections are secure.
• Check for signs of damage, excessive wear, corrosion, or loose hardware.
• Ensure the coupler articulates freely without binding.

Towing and Operation

McHitch couplers are designed for both highway and off-road use. During operation:

• Drive to the conditions.
• Reduce speed on corrugated or rough surfaces.
• Inspect the coupling after severe off-road use or impacts.
• Be aware of jack-knife angles when reversing or manoeuvring in tight spaces.
• Always maintain adequate clearance between the vehicle, trailer, drawbar, and associated towing equipment.

Inspection and Maintenance

Regular maintenance is essential for reliable towing performance.

Before Every Trip

• Check coupler condition, locking components, articulation, and safety equipment.

Monthly or Every 1,000km

• Clean the coupling.
• Inspect the universal joint, main shaft, nylon bushes, tow pin or receiver.
• Check for excessive movement, wear, or corrosion.

After Off-Road, Beach, or Water Exposure

• Remove mud, sand, and debris.
• Rinse with fresh water where required.
• Dry thoroughly and inspect all moving components.
• Lubricate service points as required.

Common Signs Service Is Required

Inspect the coupler immediately if you notice:

• Excessive rattling or clunking.
• Increased movement in the coupling.
• Difficulty hitching or unhitching.
• Binding during articulation.
• Visible wear, damage, or corrosion.
• Difficulty inserting locking pins.

Safe Towing Starts with Regular Inspection

Routine inspection, cleaning, adjustment, and maintenance will help maximise the service life of your McHitch coupler and ensure safe towing performance in all conditions. Always ensure the coupler is correctly connected, all locking devices are installed, and the trailer is safely loaded before every journey.

For detailed hitching procedures, maintenance instructions, troubleshooting, servicing information, and safety requirements, download the full McHitch User Manual below
