AusTuff Anti Flap Kit User Manual

The AusTuff Anti‑Flap Kit (AFK) is a removable support and stabilisation system designed to enhance the performance and longevity of both the awning and annex during use. It operates by clamping the outer edges of the awning canvas and annex panels, significantly reducing movement caused by wind and maintaining consistent tension across the entire structure.

When installed correctly, the AusTuff Anti‑Flap Kit helps to minimise flapping, which is one of the primary causes of canvas wear, noise, and long‑term material fatigue. In addition to improving comfort during use, the system also assists in maintaining correct alignment between the awning and annex, resulting in a more stable and secure setup.

The AusTuff Anti‑Flap Kit is not a permanent fixture and does not require fixed installation to the caravan, except for the mounting saddles. It is designed to be fitted during setup and removed during pack‑down, and must be used in conjunction with a properly deployed awning and correctly installed annex to achieve optimal performance and durability.

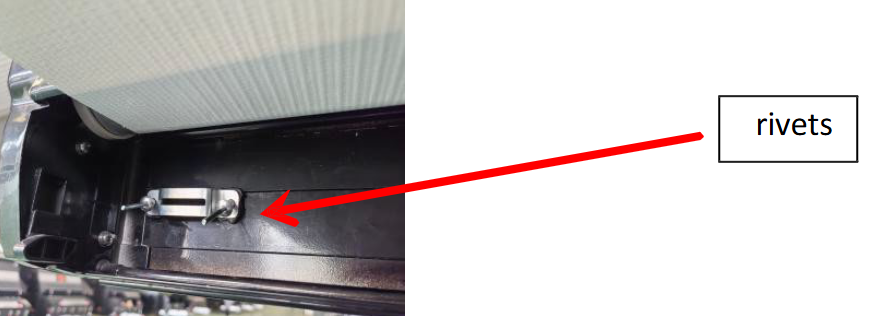

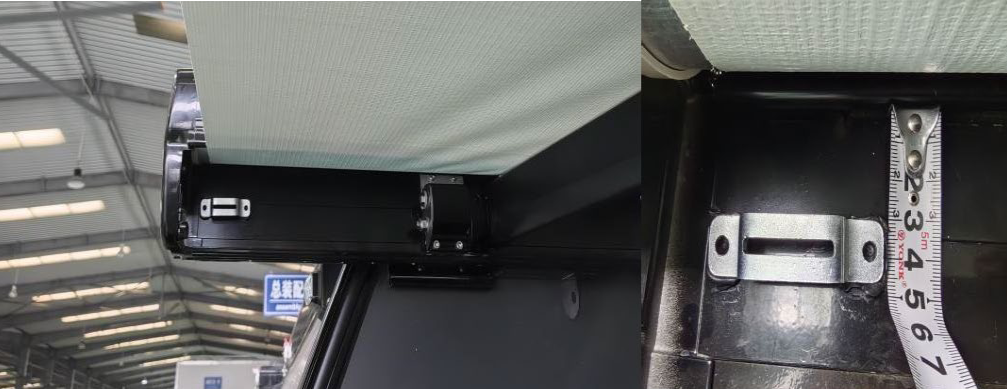

Step 1:

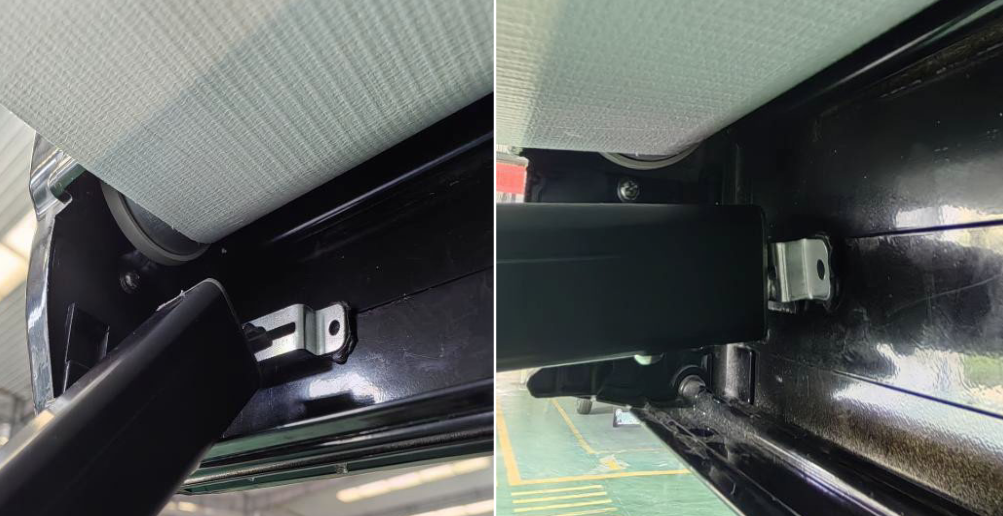

Install supplied saddles at either end of the awning, 40mm from the top to the centre of hole.

Step 2:

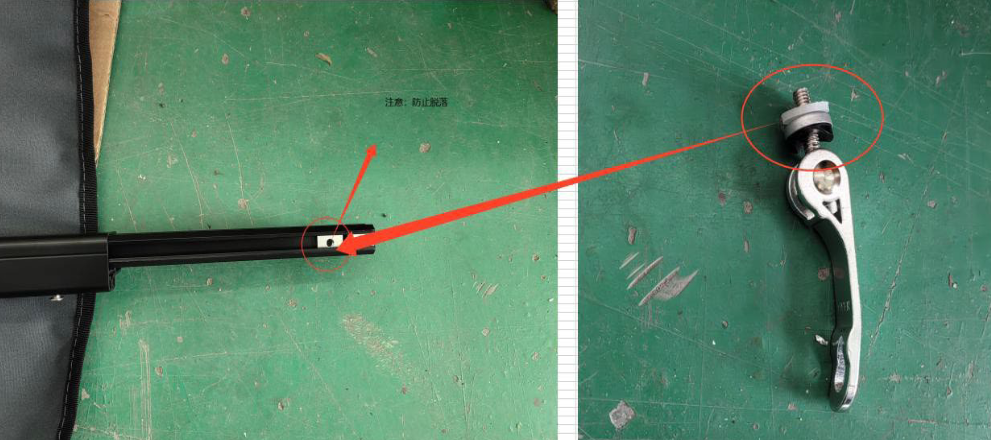

Slide rectangular screw plate into
the AFK extension shaft. Screw in
the Silver Adjusters with the
bushes but only lightly, so it can
be adjusted later on.

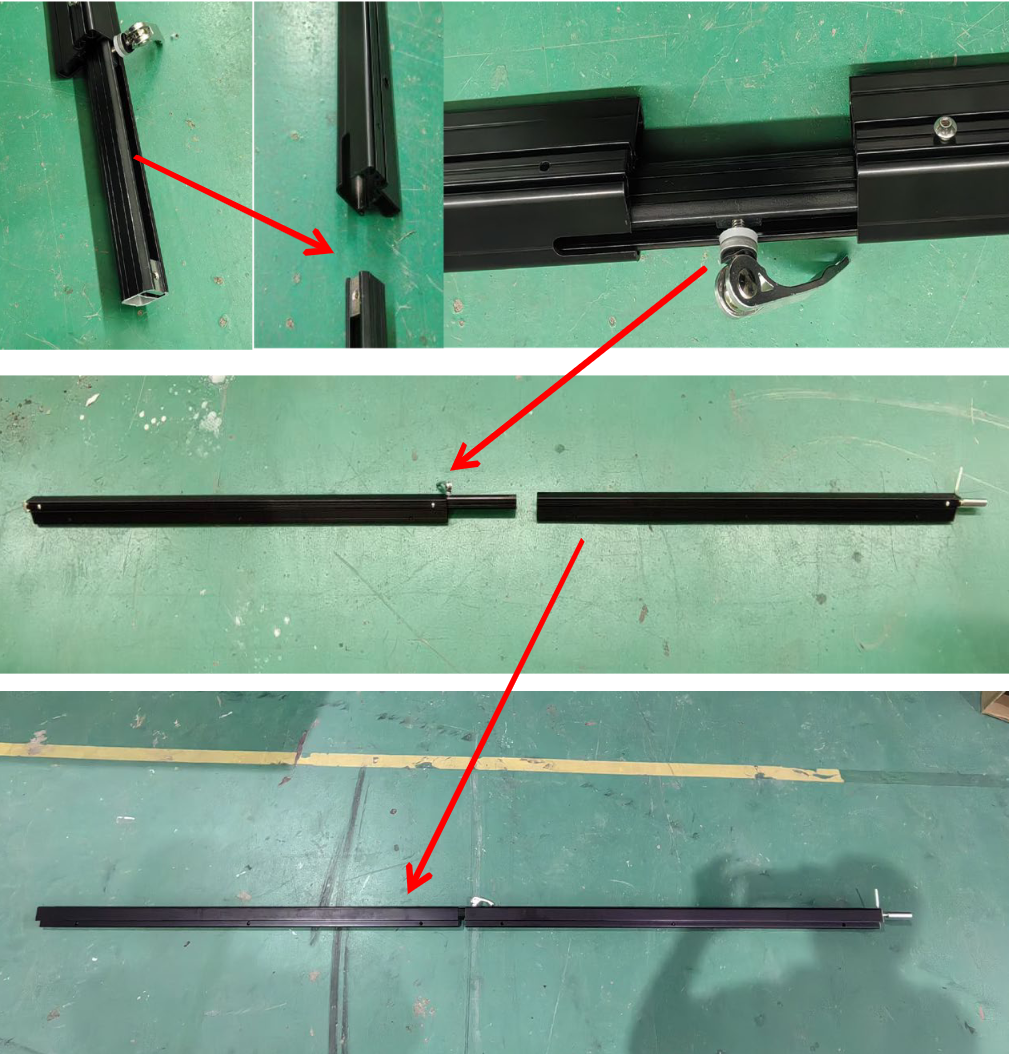

Step 3:

Slide the second half of the Anti Flap Bar into the first half and adjust the tightener to desired setting.

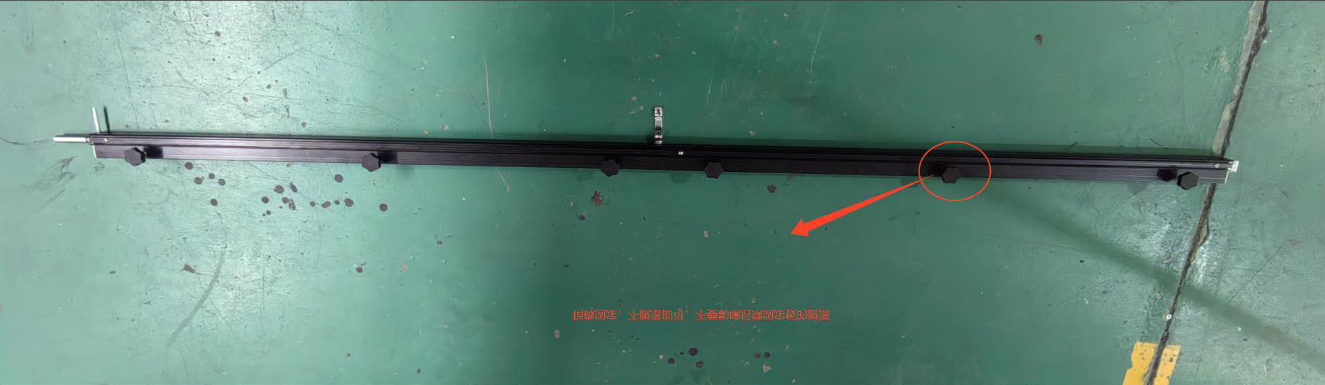

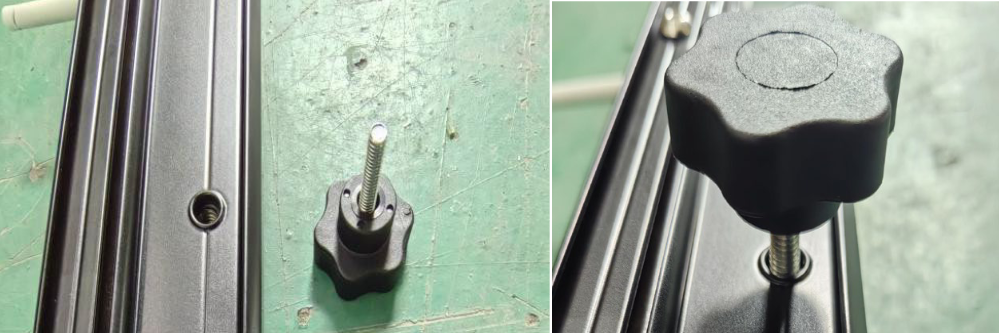

Step 4:

Fit the black tightening knobs into the available screw holes, but keep them loose so the flap plate can be removed and adjusted later on.

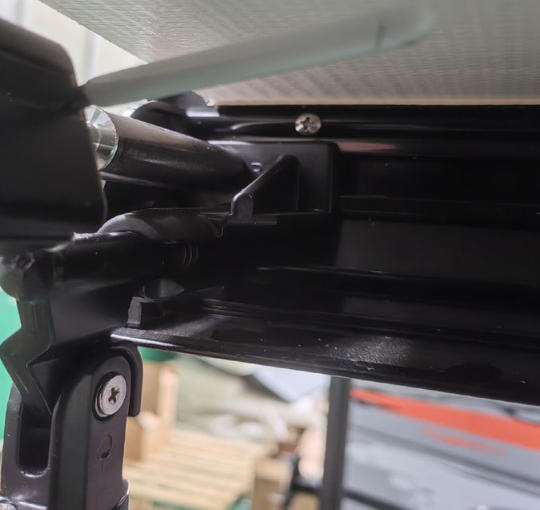

Step 5:

Install Anti Flap Kit onto the awning by sliding the saddle in first, and then placing the spring loaded barrel over the top of the awning leg knuckle. Spread bars apart firmly, ensuring it is sitting tightly and then adjust silver tightener.

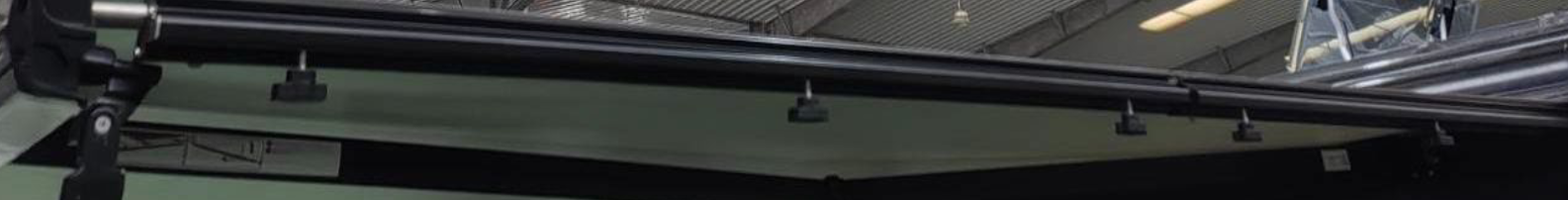

Step 6:

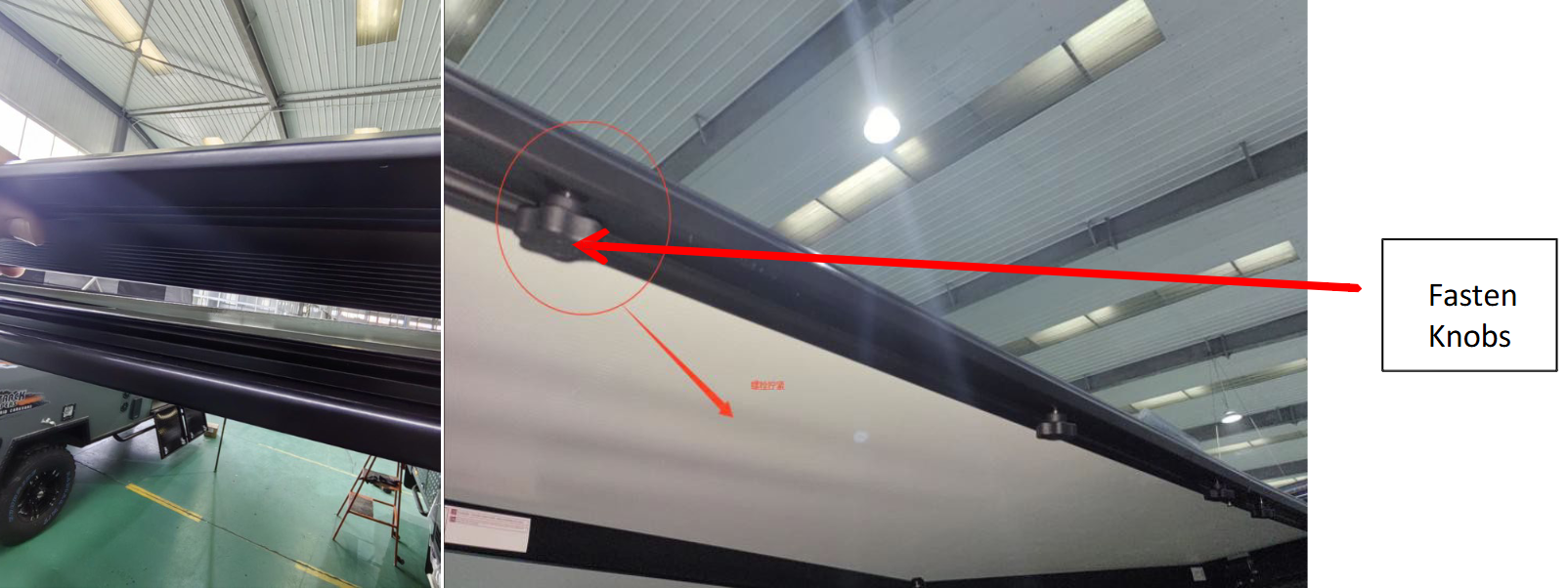

Remove Flap Plate and fit over awning canvas while refitting back into the track of the Anti Flap Kit. Clamp down tightly and then fasten black knobs.

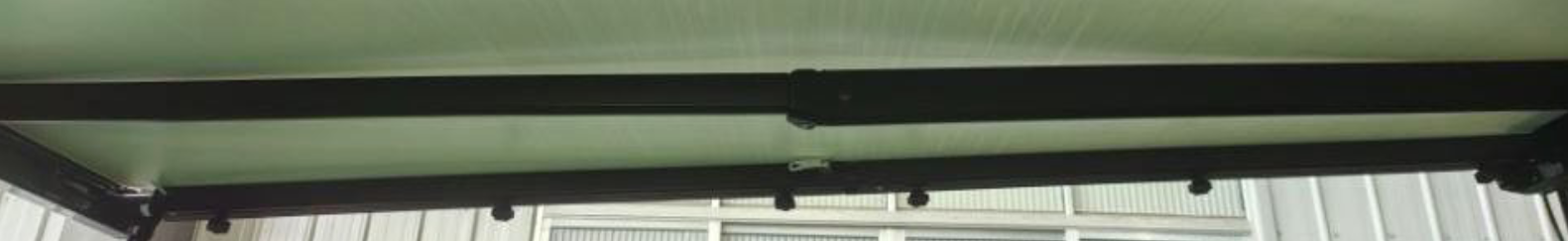

Congratulations, you have successfully installed the AusTuff Anti Flap Kit.
